087858 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD R/A 4POS 2MM

Part	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Type	Insulation Height	Insulation Height	Contact Shape	Contact Material	Fastening Type	Termination	Material Flammability Rating	Insulation Color	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Style	Number of Positions Loaded	Applications	Features	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Rows	Contact Length - Mating [x]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating

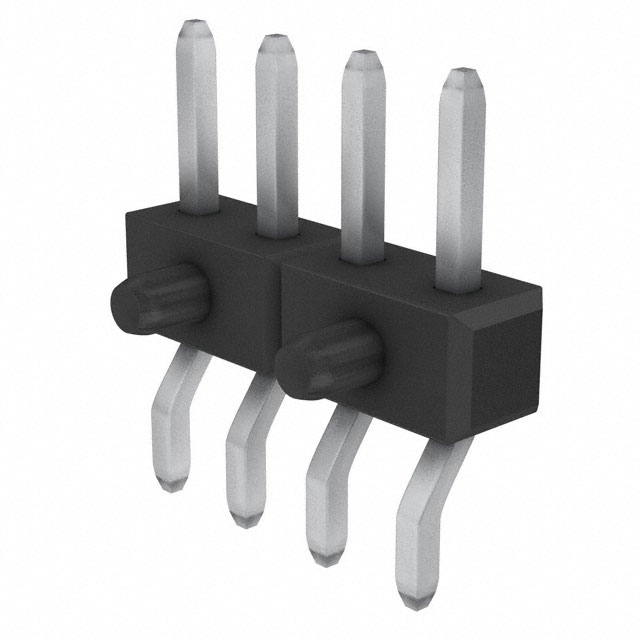

Molex 0878580004	3.2 mm	0.126 "	4	Male Pin	0.079 in	2 mm	Square	Copper Alloy	Push-Pull	Solder	UL94 V-0	Black	Unshrouded	2.54 µm	100 µin	0.079 in	2 mm	Tin	Board to Board Cable	All	Automotive General Purpose Telecommunications	Board Guide	Breakaway Header	2.54 çm	100 çin	Surface Mount Right Angle	1
Molex 0878580760	4.15 mm		7	Male Pin	0.079 in	2 mm	Square	Copper Alloy	Push-Pull	Solder	UL94 V-0	Black	Unshrouded	2.54 µm	100 µin	0.079 in	2 mm	Tin	Board to Board Cable	All	Automotive General Purpose Telecommunications	Board Guide Pick and Place	Breakaway Header	2.54 çm	100 çin	Surface Mount Right Angle	1	0.164 in	2 A	-55 °C	125 °C	125 VDC

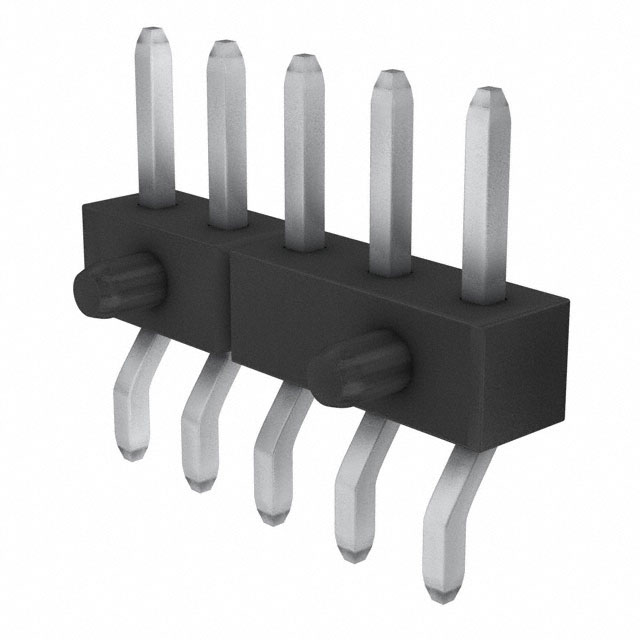

Molex 0878580550	3.2 mm	0.126 "		Male Pin	0.079 in	2 mm	Square	Copper Alloy	Push-Pull	Solder	UL94 V-0	Black	Unshrouded	2.54 µm	100 µin	0.079 in	2 mm	Tin	Board to Board Cable	All	Automotive General Purpose Telecommunications	Pick and Place	Breakaway Header	2.54 çm	100 çin	Surface Mount Right Angle	1
