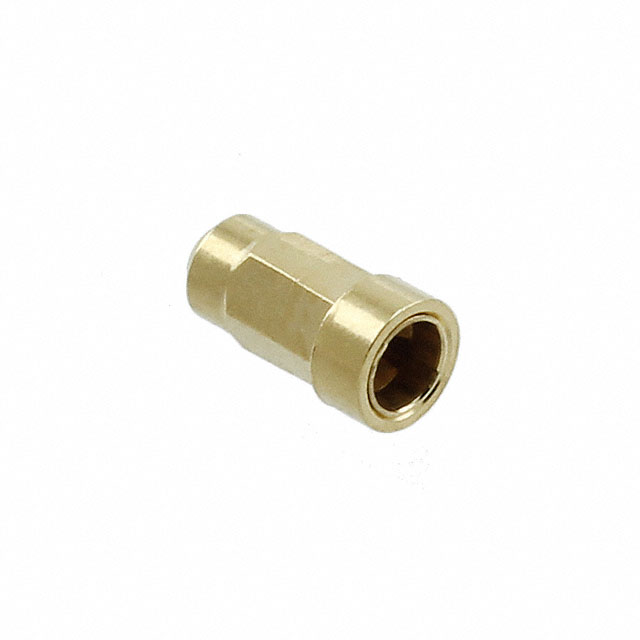

6342-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
PRESS-FIT RECEPTACLE; ACCEPTS .0
| Part | Insertion Force | Operating Temperature [Min] | Operating Temperature [Max] | Flange Diameter [diameter] | Flange Diameter [diameter] | Tail Type | Contact Finish | Termination | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Contact Material | Length - Overall [x] | Length - Overall [x] | Socket Depth | Socket Depth | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 20 N | -55 C | 125 °C | 0.106 " | 2.69 mm | No Tail | Gold | Hex Press-Fit | 1.5 mm | 0.063 " | 0.059 " | 1.6 mm | Beryllium Copper | 5.16 mm | 0.203 in | 4.39 mm | 0.173 in | 30 Áin | 0.76 Ám | 0.09 in | 2.29 mm |
