621-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

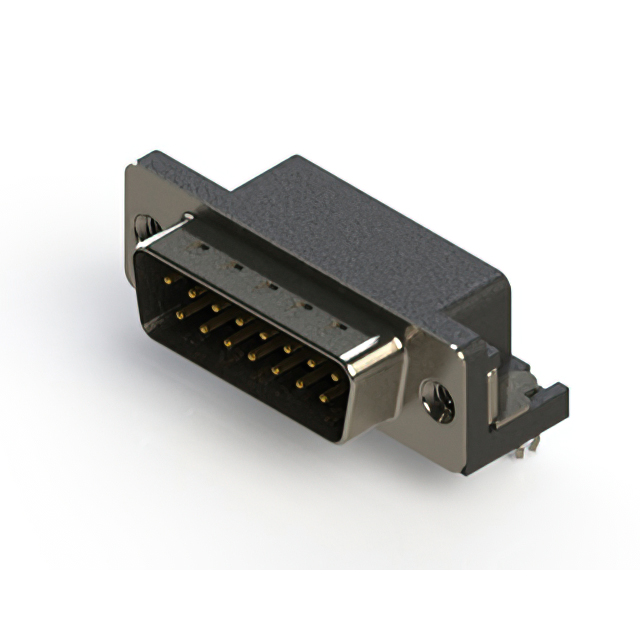

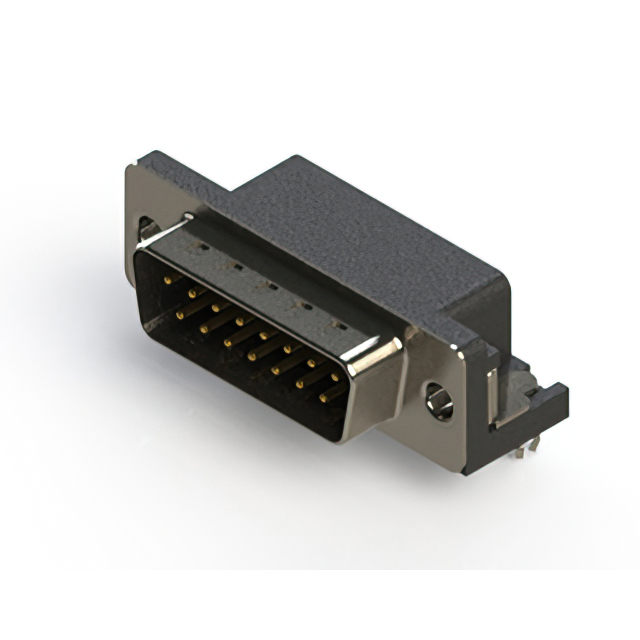

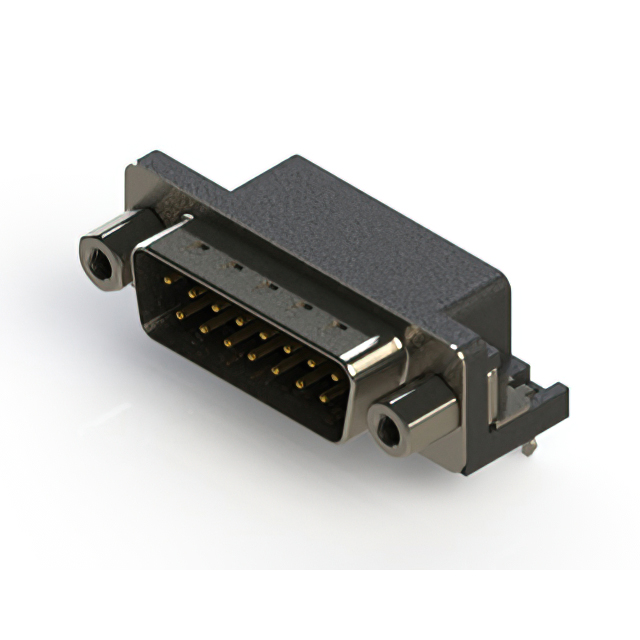

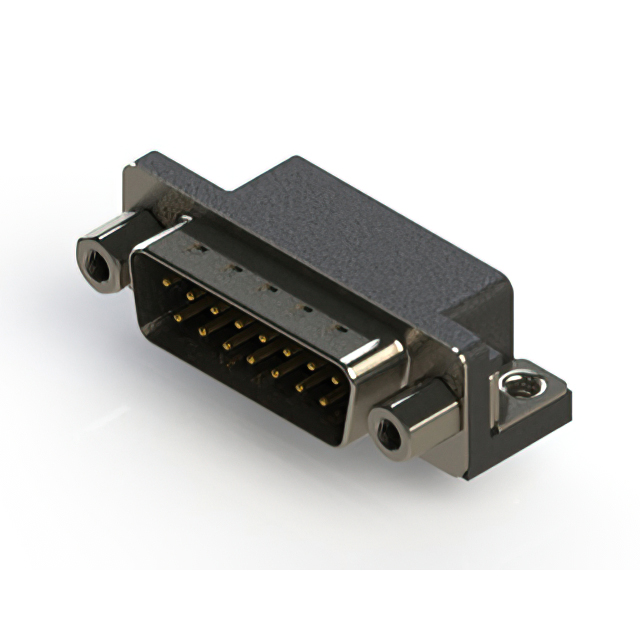

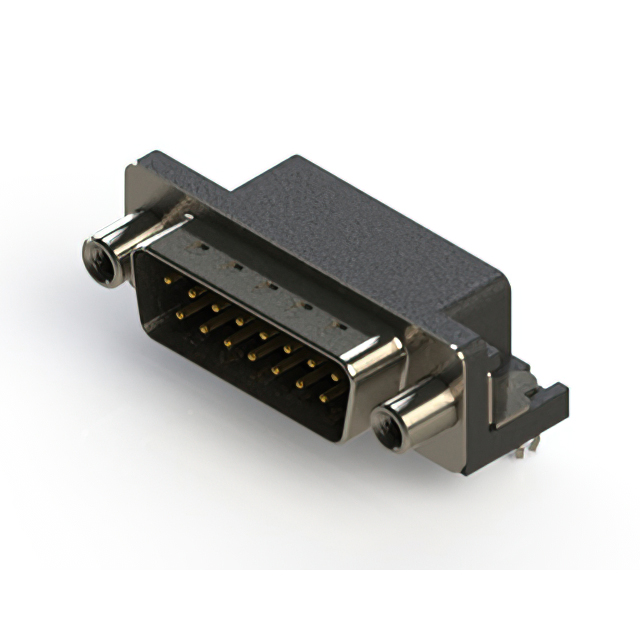

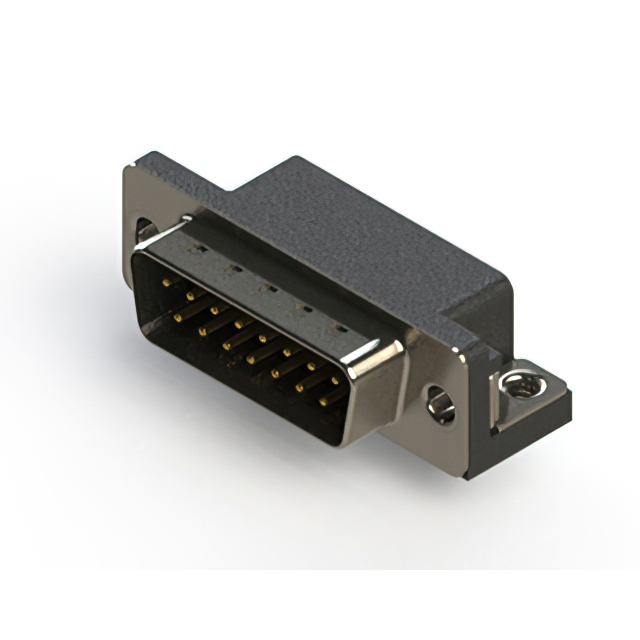

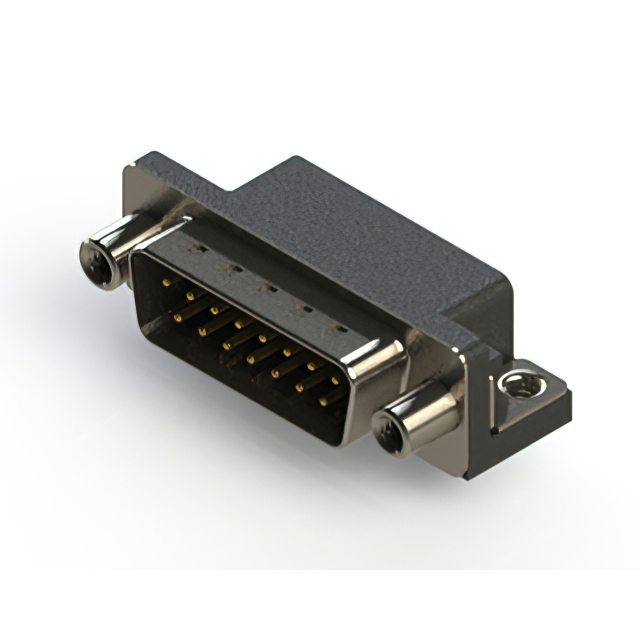

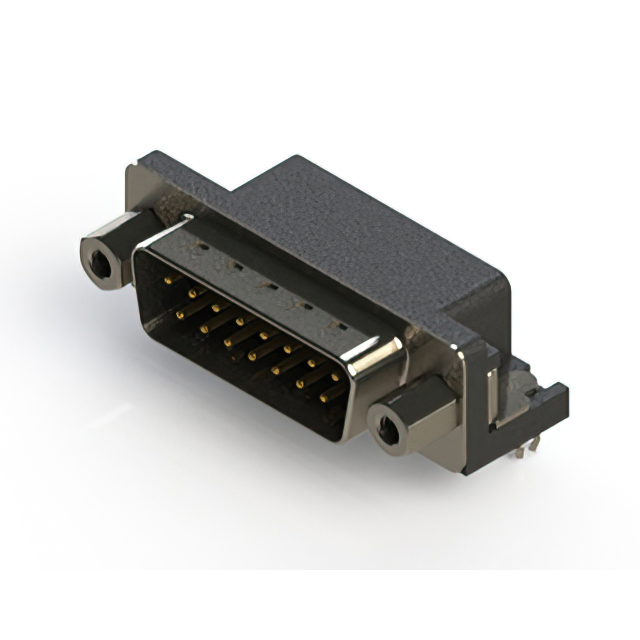

621 SERIES RIGHT ANGLE D-SUB PLU
| Part | Contact Material | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Shell Material, Finish | Contact Type | Features | Material Flammability Rating | Backset Spacing | Backset Spacing | Number of Positions | Flange Feature | Number of Rows [custom] | Termination | Mounting Type | Shell Size, Connector Layout | Connector Type | Connector Style | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 125 °C | Gold | Nickel Plated Steel | Signal | Grounding Indents Mounting Brackets Shielded | UL94 V-0 | 8.08 mm | 0.318 " | 15 | 4-40 | 2 | Solder | Board Edge Right Angle Through Hole | 2 | Plug Male Pins | D-Sub | 3 A | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 125 °C | Gold | Nickel Plated Steel | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | UL94 V-0 | 8.08 mm | 0.318 " | 15 | Mating Side Female Screwlock (M3) | 2 | Solder | Board Edge Right Angle Through Hole | 2 | Plug Male Pins | D-Sub | 3 A | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Gold | Nickel Plated Steel | Signal | Board Lock Filter Grounding Indents Mounting Brackets Shielded | UL94 V-0 | 8.08 mm | 0.318 " | 15 | Housing/Shell | 2 | Solder | Board Edge Right Angle Through Hole | 2 | Plug Male Pins | D-Sub | 3 A | 0.76 Ám | 30 Áin | 4-40 | |
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Gold | Nickel Plated Steel | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | UL94 V-0 | 8.08 mm | 0.318 " | 15 | Housing/Shell (Unthreaded) | 2 | Solder | Board Edge Right Angle Through Hole | 2 | Plug Male Pins | D-Sub | 3 A | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Gold | Nickel Plated Steel | Signal | Board Lock Filter Grounding Indents Mounting Brackets Shielded | UL94 V-0 | 8.08 mm | 0.318 " | 15 | Housing/Shell (M3) | 2 | Solder | Board Edge Right Angle Through Hole | 2 | Plug Male Pins | D-Sub | 3 A | Flash | |||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 125 °C | Gold | Nickel Plated Steel | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | UL94 V-0 | 8.08 mm | 0.318 " | 15 | Housing/Shell (Unthreaded) | 2 | Solder | Board Edge Right Angle Through Hole | 2 | Plug Male Pins | D-Sub | 3 A | Flash | |||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Gold | Nickel Plated Steel | Signal | Grounding Indents Mounting Brackets Shielded | UL94 V-0 | 8.08 mm | 0.318 " | 15 | Mating Side Female Screwlock (M3) | 2 | Solder | Board Edge Right Angle Through Hole | 2 | Plug Male Pins | D-Sub | 3 A | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Gold | Nickel Plated Steel | Signal | Filter Grounding Indents Mounting Brackets Shielded | UL94 V-0 | 8.08 mm | 0.318 " | 15 | 4-40 Mating Side Female Screwlock | 2 | Solder | Board Edge Right Angle Through Hole | 2 | Plug Male Pins | D-Sub | 3 A | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Gold | Nickel Plated Steel | Signal | Grounding Indents Mounting Brackets Shielded | UL94 V-0 | 8.08 mm | 0.318 " | 15 | Housing/Shell (Unthreaded) | 2 | Solder | Board Edge Right Angle Through Hole | 2 | Plug Male Pins | D-Sub | 3 A | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Gold | Nickel Plated Steel | Signal | Board Lock Filter Grounding Indents Mounting Brackets Shielded | UL94 V-0 | 8.08 mm | 0.318 " | 15 | 4-40 | 2 | Solder | Board Edge Right Angle Through Hole | 2 | Plug Male Pins | D-Sub | 3 A | 0.38 µm | 15 µin |
