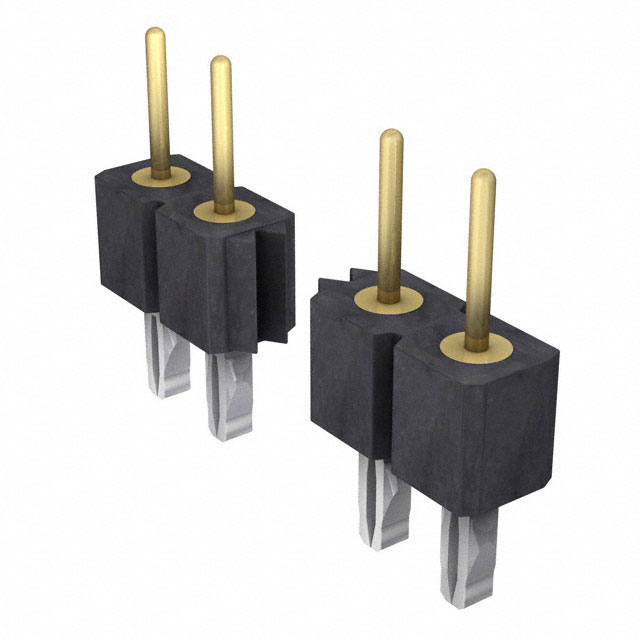

356-V3 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN HEADER VERT 40POS 2.54MM
| Part | Shrouding | Connector Type | Number of Positions | Termination | Material Flammability Rating | Contact Finish - Mating | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Type | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Shape | Mounting Type | Contact Finish - Post | Insulation Height | Insulation Height | Contact Length - Post [custom] | Contact Length - Post | Fastening Type | Overall Contact Length | Overall Contact Length | Insulation Material | Insulation Color | Voltage Rating | Number of Rows | Contact Length - Mating | Contact Length - Mating | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Unshrouded | Header | 40 | Press-Fit Solder | UL94 V-0 | Gold | 3 A | 0.1 " | 2.54 mm | 29.5 µin | 0.75 µm | Male Pin | All | -55 C | 125 °C | Bronze | Circular | Through Hole | Tin | 0.116 " | 2.95 mm | 0.11 in | 2.79 mm | Push-Pull | 9.6 mm | 0.378 in | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Black | 150 VDC | 1 | 0.141 in | 3.6 mm | |
 Preci-Dip | Unshrouded | Header | 20 | Press-Fit Solder | UL94 V-0 | Gold | 3 A | 0.1 " | 2.54 mm | 29.5 µin | 0.75 µm | Male Pin | All | -55 C | 125 °C | Bronze | Circular | Through Hole | Tin | 0.116 " | 2.95 mm | 0.11 in | 2.79 mm | Push-Pull | 9.6 mm | 0.378 in | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Black | 150 VDC | 1 | 0.141 in | 3.6 mm | |
Preci-Dip | Unshrouded | Header | 21 | Press-Fit Solder | UL94 V-0 | Gold | 3 A | 0.1 " | 2.54 mm | 29.5 µin | 0.75 µm | Male Pin | All | -55 C | 125 °C | Bronze | Circular | Through Hole | Tin | 0.116 " | 2.95 mm | 0.11 in | 2.79 mm | Push-Pull | 9.6 mm | 0.378 in | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Black | 150 VDC | 1 | 0.141 in | 3.6 mm | |
Preci-Dip | Unshrouded | Header | Press-Fit Solder | UL94 V-0 | Gold | 3 A | 0.1 " | 2.54 mm | 29.5 µin | 0.75 µm | Male Pin | All | -55 C | 125 °C | Bronze | Circular | Through Hole | Tin | 0.116 " | 2.95 mm | 0.11 in | 2.79 mm | Push-Pull | 9.6 mm | 0.378 in | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Black | 150 VDC | 1 | 0.141 in | 3.6 mm | 33 | |
Preci-Dip | Unshrouded | Header | 16 | Press-Fit Solder | UL94 V-0 | Gold | 3 A | 0.1 " | 2.54 mm | 29.5 µin | 0.75 µm | Male Pin | All | -55 C | 125 °C | Bronze | Circular | Through Hole | Tin | 0.116 " | 2.95 mm | 0.11 in | 2.79 mm | Push-Pull | 9.6 mm | 0.378 in | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Black | 150 VDC | 1 | 0.141 in | 3.6 mm | |
Preci-Dip | Unshrouded | Header | 42 | Press-Fit Solder | UL94 V-0 | Gold | 3 A | 0.1 " | 2.54 mm | 29.5 µin | 0.75 µm | Male Pin | All | -55 C | 125 °C | Bronze | Circular | Through Hole | Tin | 0.116 " | 2.95 mm | 0.11 in | 2.79 mm | Push-Pull | 9.6 mm | 0.378 in | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Black | 150 VDC | 1 | 0.141 in | 3.6 mm | |
Preci-Dip | Unshrouded | Header | 19 | Press-Fit Solder | UL94 V-0 | Gold | 3 A | 0.1 " | 2.54 mm | 29.5 µin | 0.75 µm | Male Pin | All | -55 C | 125 °C | Bronze | Circular | Through Hole | Tin | 0.116 " | 2.95 mm | 0.11 in | 2.79 mm | Push-Pull | 9.6 mm | 0.378 in | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Black | 150 VDC | 1 | 0.141 in | 3.6 mm | |
Preci-Dip | Unshrouded | Header | 60 | Press-Fit Solder | UL94 V-0 | Gold | 3 A | 0.1 " | 2.54 mm | 29.5 µin | 0.75 µm | Male Pin | All | -55 C | 125 °C | Bronze | Circular | Through Hole | Tin | 0.116 " | 2.95 mm | 0.11 in | 2.79 mm | Push-Pull | 9.6 mm | 0.378 in | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Black | 150 VDC | 1 | 0.141 in | 3.6 mm | |
Preci-Dip | Unshrouded | Header | 48 | Press-Fit Solder | UL94 V-0 | Gold | 3 A | 0.1 " | 2.54 mm | 29.5 µin | 0.75 µm | Male Pin | All | -55 C | 125 °C | Bronze | Circular | Through Hole | Tin | 0.116 " | 2.95 mm | 0.11 in | 2.79 mm | Push-Pull | 9.6 mm | 0.378 in | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Black | 150 VDC | 1 | 0.141 in | 3.6 mm | |
Preci-Dip | Unshrouded | Header | 55 | Press-Fit Solder | UL94 V-0 | Gold | 3 A | 0.1 " | 2.54 mm | 29.5 µin | 0.75 µm | Male Pin | All | -55 C | 125 °C | Bronze | Circular | Through Hole | Tin | 0.116 " | 2.95 mm | 0.11 in | 2.79 mm | Push-Pull | 9.6 mm | 0.378 in | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Black | 150 VDC | 1 | 0.141 in | 3.6 mm |
