SRP6030CA Series

Catalog

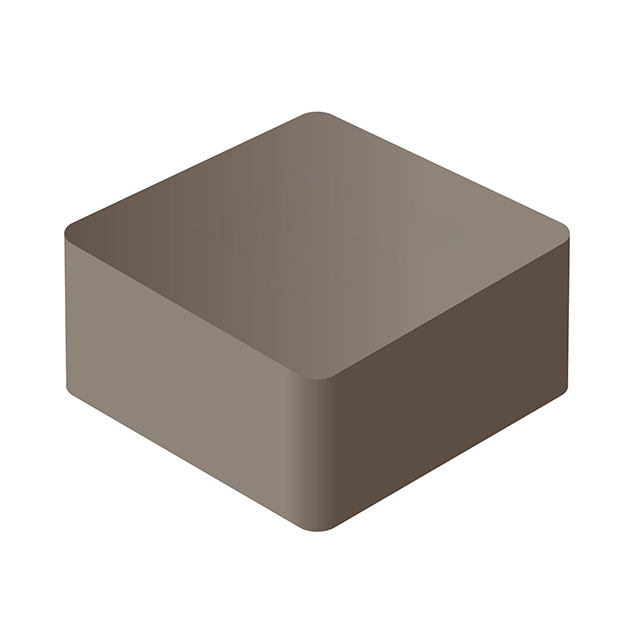

INDUCTOR, SHLD, 4.5UH, 7A, AEC-Q200

Part	Inductance	Package / Case	Mounting Type	Type	Frequency - Self Resonant	Current - Saturation (Isat)	Material - Core	Current Rating (Amps)	Ratings	Shielding	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Tolerance	DC Resistance (DCR)
Bourns Inc. SRP6030CA-4R5M	4.5 µH	Nonstandard	Surface Mount	Drum Core Wirewound	20 MHz	10 A	Iron Powder	7 A	AEC-Q200	Shielded	25.3 mOhm	0.118 "	3 mm	6.4 mm	6.6 mm	0.26 in	0.252 in	155 C	-55 C	100 kHz	20 %
Bourns Inc. SRP6030CA-1R8M	1.8 µH	Nonstandard	Surface Mount	Drum Core Wirewound	33 MHz	18.2 A	Iron Powder	14 A	AEC-Q200	Shielded	10.2 mOhm	0.118 "	3 mm	6.4 mm	6.6 mm	0.26 in	0.252 in	155 C	-55 C	100 kHz	20 %
Bourns Inc. SRP6030CA-3R3M	3.3 µH	Nonstandard	Surface Mount	Drum Core Wirewound	25 MHz	12.2 A	Iron Powder	8 A	AEC-Q200	Shielded	20.8 mOhm	0.118 "	3 mm	6.4 mm	6.6 mm	0.26 in	0.252 in	155 C	-55 C	100 kHz	20 %
Bourns Inc. SRP6030CA-R33M	330 nH	Nonstandard	Surface Mount	Drum Core Wirewound	78 MHz	32 A	Iron Powder	25 A	AEC-Q200	Shielded	2.5 mOhm	0.118 "	3 mm	6.4 mm	6.6 mm	0.26 in	0.252 in	155 C	-55 C	100 kHz	20 %
Bourns Inc. SRP6030CA-R56M	560 nH	Nonstandard	Surface Mount	Drum Core Wirewound		29 A	Iron Powder	22 A	AEC-Q200	Shielded		0.118 "	3 mm	6.4 mm	6.6 mm	0.26 in	0.252 in	155 C	-55 C	100 kHz	20 %	3.31 mOhm
