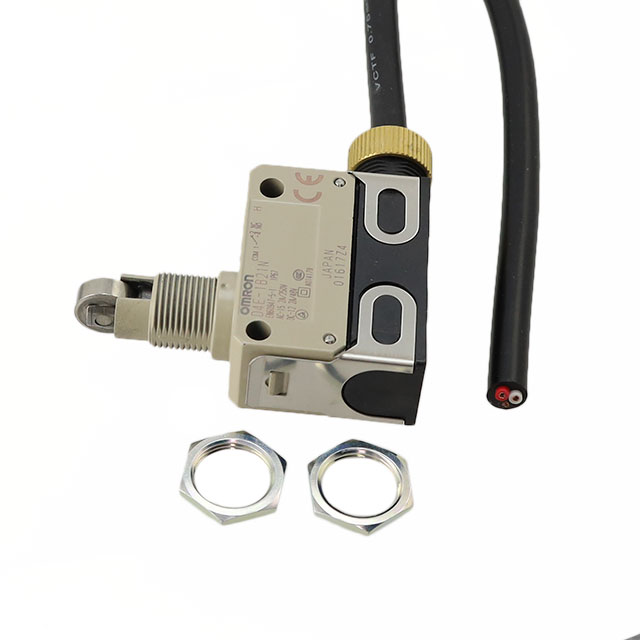

D4E-1B21 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Switch Function | Overtravel | Overtravel | Pretravel | Pretravel | Electrical Life | Current Rating (Amps) | Voltage Rating - DC | Release Force | Differential Travel | Differential Travel | Mechanical Life | Operating Position | Operating Position | Voltage Rating - AC | Actuator Type | Termination Style | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | On-Mom | 3 mm | 0.118 in | 1.5 mm | 0.06 in | 500000 Cycles | 5 A | 30 V | 500 gf | 0.1 mm | 0.004 in | 10000000 Cycles | 1.235 in | 31.4 mm | 125 V | Cross Roller Plunger | Cable Leads | IP67 - Dust Tight Waterproof | 80 C | -10 °C | 1200 gf | SPDT |
