1361169 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

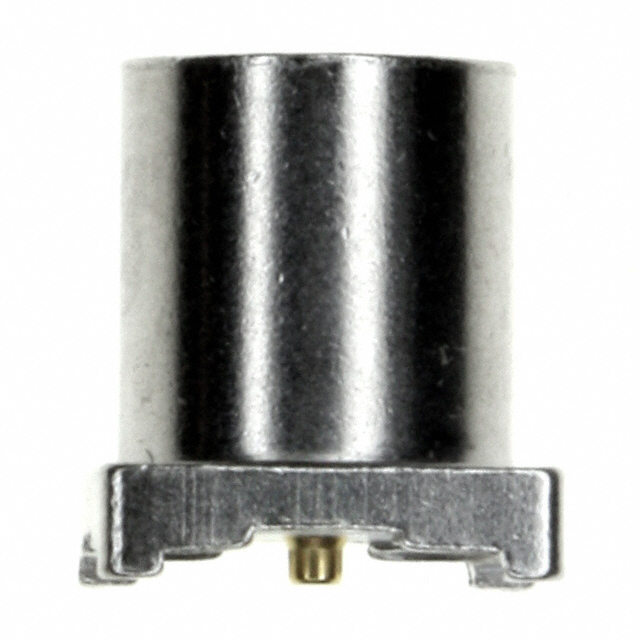

CONN MCX RCPT STR 75 OHM SMD
| Part | Body Material | Voltage Rating | Insertion Loss | Dielectric Material | Center Contact Plating | Mating Cycles | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Contact Termination | Connector Type | Number of Ports | Mounting Type | Housing Color | Fastening Type | Connector Style | Impedance | Center Contact Material | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | 335 V | 0.1 dB | Polytetrafluoroethylene (PTFE) | Gold | 500 | Nickel | -65 ░C | 165 °C | 6000 MHz | Solder | Receptacle Female Socket | 1 | Surface Mount | Silver | Snap-On | MCX | 75 Ohms | Beryllium Copper | Solder |
