EDP125 Series

Catalog

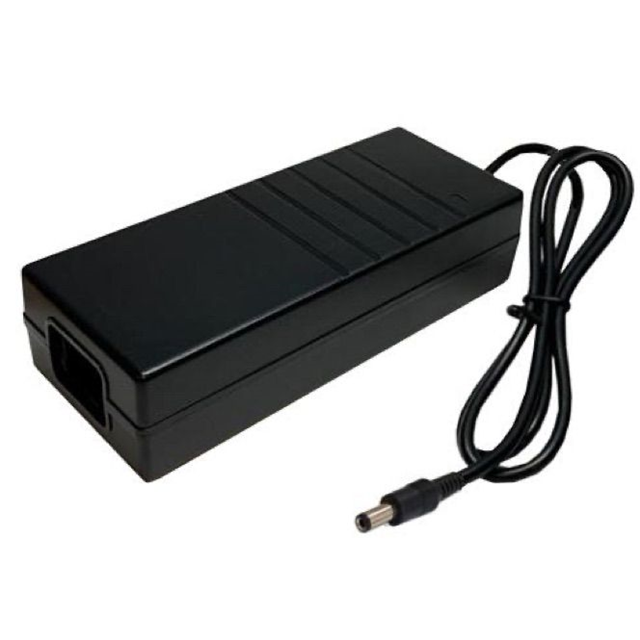

AC/DC DESKTOP ADAPTER 36V 125W

Part	Weight	Weight	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Applications	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)	Standard Number	Output Connector [diameter]	Output Connector	Output Connector [x]	Region Utilized	Polarization	Input Connector	Form	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption	Approval Agency	Cord Length	Cord Length	Voltage - Output
Astrodyne TDI EDP125-360-MB2-110	1.05 lbs	475 g	Cord (Sold Separately)	80 °C	-40 C	3.5 A	ITE (Commercial) Medical	Level VI	6 "	152.4 mm	63 mm	2.48 in	1.5 in	38 mm	125 W	60601-1 60950-1 62368-1	2.5 mm 5.5 mm	Barrel Plug	11 mm	International	Positive Center	IEC 320-C18	Desktop (Class II)	80 VAC	264 VAC	210 mW	CB cTUVus FCC TUV	1.22 m	48 in	36 V
Astrodyne TDI EDP125-480-MB1-110	1.05 lbs	475 g	Cord (Sold Separately)	80 °C	-40 C	2.6 A	ITE (Commercial) Medical	Level VI	6 "	152.4 mm	63 mm	2.48 in	1.5 in	38 mm	125 W	60601-1 60950-1 62368-1	2.5 mm 5.5 mm	Barrel Plug	11 mm	International	Positive Center	IEC 320-C14	Desktop (Class I)	80 VAC	264 VAC	210 mW	CB cTUVus FCC TUV	1.22 m	48 in	48 V
Astrodyne TDI EDP125-120-MB2-400	1.05 lbs	475 g	Cord (Sold Separately)	80 °C	-40 C	10.4 A	ITE (Commercial) Medical	Level VI	6 "	152.4 mm	63 mm	2.48 in	1.5 in	38 mm	125 W	60601-1 60950-1 62368-1		DIN 4 Pin		International		IEC 320-C18	Desktop (Class II)	80 VAC	264 VAC	210 mW	CB cTUVus FCC TUV	812.8 mm	32 in	12 V
Astrodyne TDI EDP125-180-MB1-110	1.05 lbs	475 g	Cord (Sold Separately)	80 °C	-40 C	6.9 A	ITE (Commercial) Medical	Level VI	6 "	152.4 mm	63 mm	2.48 in	1.5 in	38 mm	125 W	60601-1 60950-1 62368-1	2.5 mm 5.5 mm	Barrel Plug	11 mm	International	Positive Center	IEC 320-C14	Desktop (Class I)	80 VAC	264 VAC	210 mW	CB cTUVus FCC TUV	1.22 m	48 in	18 V
Astrodyne TDI EDP125-180-MB2-110	1.05 lbs	475 g	Cord (Sold Separately)	80 °C	-40 C	6.9 A	ITE (Commercial) Medical	Level VI	6 "	152.4 mm	63 mm	2.48 in	1.5 in	38 mm	125 W	60601-1 60950-1 62368-1	2.5 mm 5.5 mm	Barrel Plug	11 mm	International	Positive Center	IEC 320-C18	Desktop (Class II)	80 VAC	264 VAC	210 mW	CB cTUVus FCC TUV	1.22 m	48 in	18 V
Astrodyne TDI EDP125-280-MB2-110	1.05 lbs	475 g	Cord (Sold Separately)	80 °C	-40 C	4.5 A	ITE (Commercial) Medical	Level VI	6 "	152.4 mm	63 mm	2.48 in	1.5 in	38 mm	125 W	60601-1 60950-1 62368-1	2.5 mm 5.5 mm	Barrel Plug	11 mm	International	Positive Center	IEC 320-C18	Desktop (Class II)	80 VAC	264 VAC	210 mW	CB cTUVus FCC TUV	1.22 m	48 in	28 V
Astrodyne TDI EDP125-190-MB2-110	1.05 lbs	475 g	Cord (Sold Separately)	80 °C	-40 C	6.6 A	ITE (Commercial) Medical	Level VI	6 "	152.4 mm	63 mm	2.48 in	1.5 in	38 mm	125 W	60601-1 60950-1 62368-1	2.5 mm 5.5 mm	Barrel Plug	11 mm	International	Positive Center	IEC 320-C18	Desktop (Class II)	80 VAC	264 VAC	210 mW	CB cTUVus FCC TUV	1.22 m	48 in	19 V
Astrodyne TDI EDP125-150-MB2-100	1.05 lbs	475 g	Cord (Sold Separately)	80 °C	-40 C	8.3 A	ITE (Commercial) Medical	Level VI	6 "	152.4 mm	63 mm	2.48 in	1.5 in	38 mm	125 W	60601-1 60950-1 62368-1		DIN 4 Pin		International		IEC 320-C18	Desktop (Class II)	80 VAC	264 VAC	210 mW	CB cTUVus FCC TUV	812.8 mm	32 in	15 V
Astrodyne TDI EDP125-240-MB1-110	1.05 lbs	475 g	Cord (Sold Separately)	80 °C	-40 C	5.2 A	ITE (Commercial) Medical	Level VI	6 "	152.4 mm	63 mm	2.48 in	1.5 in	38 mm	125 W	60601-1 60950-1 62368-1	2.5 mm 5.5 mm	Barrel Plug	11 mm	International	Positive Center	IEC 320-C14	Desktop (Class I)	80 VAC	264 VAC	210 mW	CB cTUVus FCC TUV	1.22 m	48 in	24 V
Astrodyne TDI EDP125-120-MB1-400	1.05 lbs	475 g	Cord (Sold Separately)	80 °C	-40 C	10.4 A	ITE (Commercial) Medical	Level VI	6 "	152.4 mm	63 mm	2.48 in	1.5 in	38 mm	125 W	60601-1 60950-1 62368-1		DIN 4 Pin		International		IEC 320-C14	Desktop (Class I)	80 VAC	264 VAC	210 mW	CB cTUVus FCC TUV	812.8 mm	32 in	12 V
