0.6V adjustable shunt regulator
0.6V adjustable shunt regulator
| Part | Voltage - Output (Min/Fixed) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current - Supply | Reference Type | Package / Case | Current - Output | Output Type | Supplier Device Package | Current - Cathode [diameter] | Current - Cathode [custom] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

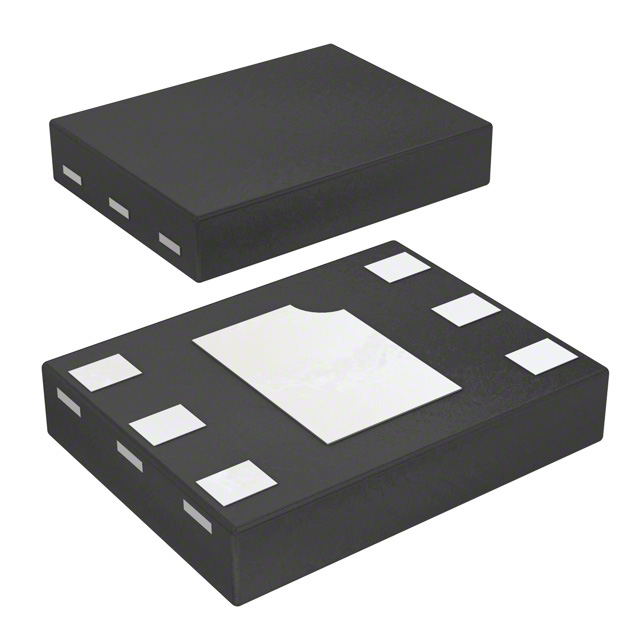

 Diodes Inc | 0.6 V | -40 °C | 125 °C | Surface Mount | 3 mA | Shunt | 6-XFDFN Exposed Pad | 15 mA | Adjustable | 6-DFN1520H4 | 300 µA | ||
 Diodes Inc | 0.6 V | -40 °C | 125 °C | Surface Mount | Shunt | 5-TSSOP SC-70-5 SOT-353 | 15 mA | Adjustable | SC-70-5 | 1 mA | |||
 Diodes Inc | 0.6 V | -40 °C | 125 °C | Surface Mount | Shunt | 6-XFDFN Exposed Pad | 15 mA | Adjustable | X2-DFN1520-6 | 1 mA | 1 % | ||
 Diodes Inc | 0.6 V | -40 °C | 125 °C | Surface Mount | Shunt | SOT-23-5 Thin TSOT-23-5 | 15 mA | Adjustable | TSOT-25 | 1 mA | |||
Diodes Inc | 0.6 V | -40 °C | 125 °C | Surface Mount | Shunt | 5-TSSOP SC-70-5 SOT-353 | 15 mA | Adjustable | SC-70-5 | 1 mA | 1 % |
