PL030 Series

Catalog

TEM 29.7X29.7X3.81MM

Part	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Type	Resistance	Voltage - Max [Max]	Number of Stages	Features	Current - Max [Max]	Height [z]	Height

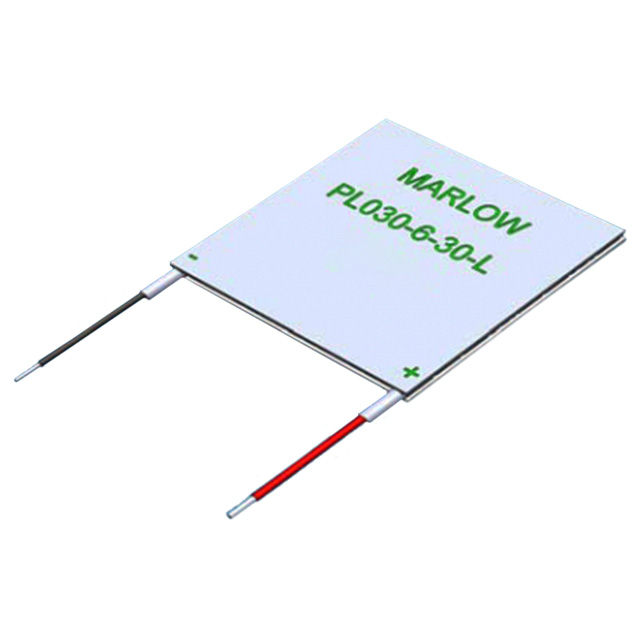

Marlow Industries, Inc. PL030-6-30-01LS	30 W	29.7 mm	29.7 mm	66 °C	TEC (Thermoelectric Cooler)	1.2 Ohms	8.2 V	1	Lapped Lead Wires Sealed	5.6 A	3.81 mm

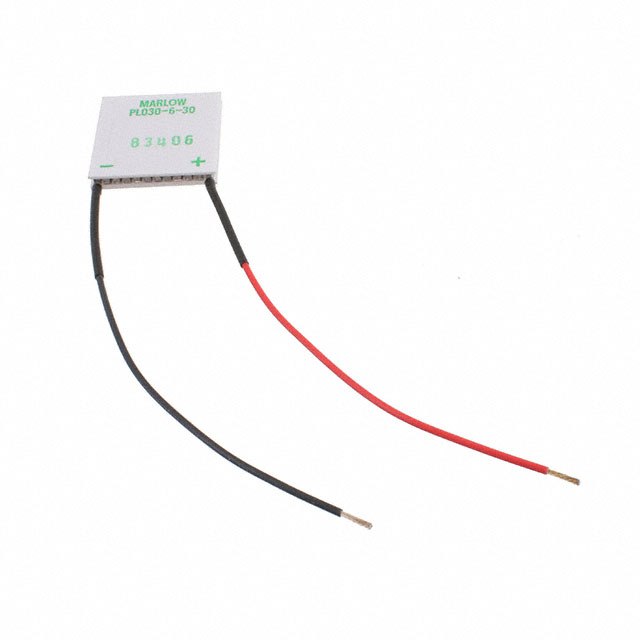

Marlow Industries, Inc. PL030-6-30-01	30 W	29.7 mm	29.7 mm	66 °C	TEC (Thermoelectric Cooler)	1.2 Ohms	8.2 V	1	Lead Wires	5.6 A		4.06 mm
Marlow Industries, Inc. PL030-6-30-01L	30 W	29.7 mm	29.7 mm	66 °C	TEC (Thermoelectric Cooler)	1.2 Ohms	8.2 V	1	Lapped Lead Wires	5.6 A	3.81 mm
