M2012S3 Series

Catalog

SWITCH TOGGLE SPDT 0.4VA 28V

Part	Electrical Life	Actuator Material	Termination Style	Mounting Type	Voltage Rating - DC	Switch Function	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Features	Current Rating (Amps)	Circuit	Bushing Thread	Illumination	Actuator Type	Panel Cutout Dimensions [diameter]
NKK Switches M2012S3S2G40	50000 Cycles	Brass Chrome Plated	PC Pin	Right Angle Through Hole Vertical	28 V	On-On	6.5 mm	85 °C	-30 ░C	28 V	Epoxy Sealed Terminals	0.4 VA	SPDT	Unthreaded	Non-Illuminated	Standard Round
NKK Switches M2012S3S1W01	25000 Steps	Brass Chrome Plated	Solder Lug	Panel Mount	30 V	On-On	6.5 mm	85 °C	-30 ░C	125 V	Epoxy Sealed Terminals	4 A 6 A	SPDT	1/4-40	Non-Illuminated	Standard Round	6.5 mm
NKK Switches M2012S3S2W30	25000 Steps	Brass Chrome Plated	PC Pin	Right Angle Through Hole	30 V	On-On	6.5 mm	85 °C	-30 ░C	125 V	Epoxy Sealed Terminals	4 A 6 A	SPDT	Unthreaded	Non-Illuminated	Standard Round

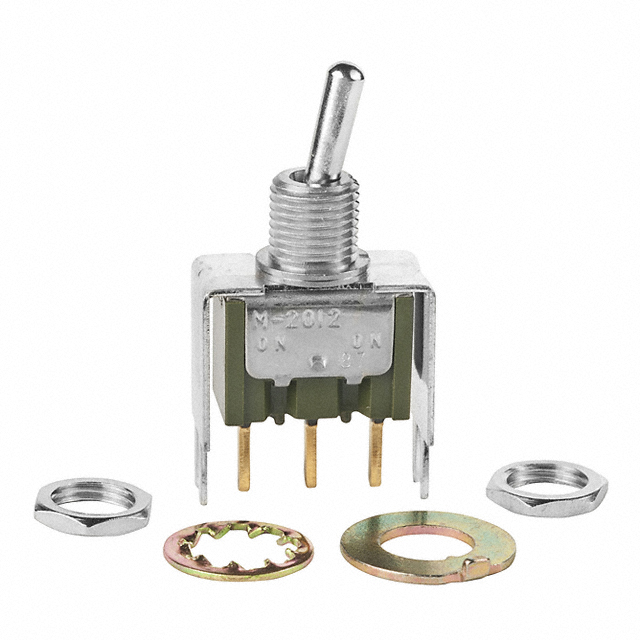

NKK Switches M2012S3A1G13	50000 Cycles	Brass Chrome Plated	PC Pin	Panel Mount	28 V	On-On	8.28 mm	85 °C	-30 ░C	28 V	Epoxy Sealed Terminals	0.4 VA	SPDT	1/4-40	Non-Illuminated	Standard Round	6.5 mm
NKK Switches M2012S3S1W03	25000 Steps	Brass Chrome Plated	PC Pin	Panel Mount	30 V	On-On	6.5 mm	85 °C	-30 ░C	125 V	Epoxy Sealed Terminals	4 A 6 A	SPDT	1/4-40	Non-Illuminated	Standard Round	6.5 mm

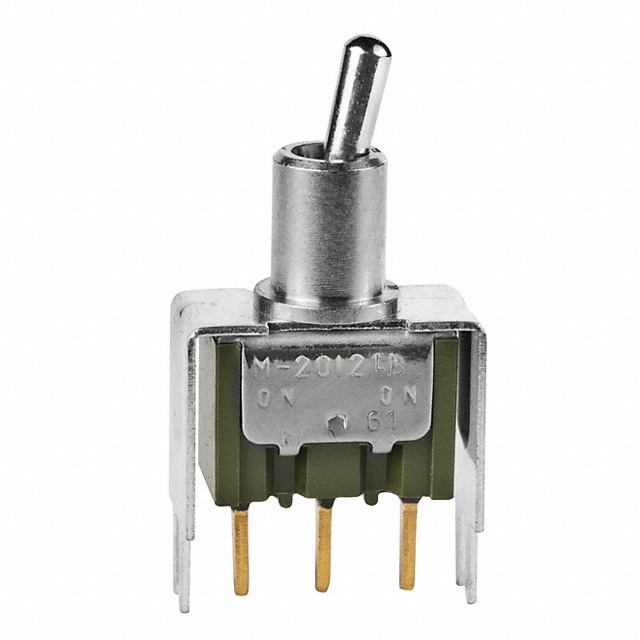

NKK Switches M2012S3S2G13	50000 Cycles	Brass Chrome Plated	PC Pin	Through Hole	28 V	On-On	6.5 mm	85 °C	-30 ░C	28 V	Epoxy Sealed Terminals	0.4 VA	SPDT	Unthreaded	Non-Illuminated	Standard Round

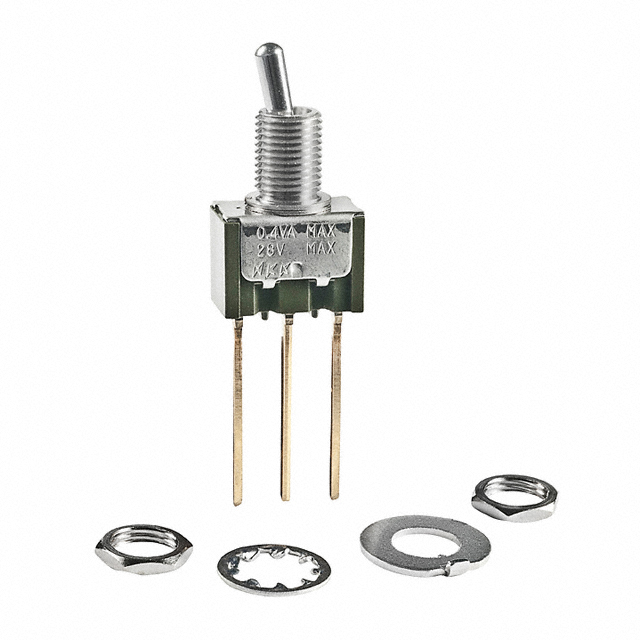

NKK Switches M2012S3S1G06	50000 Cycles	Brass Chrome Plated	Wire Wrap	Panel Mount	28 V	On-On	6.5 mm	85 °C	-30 ░C	28 V	Epoxy Sealed Terminals	0.4 VA	SPDT	1/4-40	Non-Illuminated	Standard Round	6.5 mm

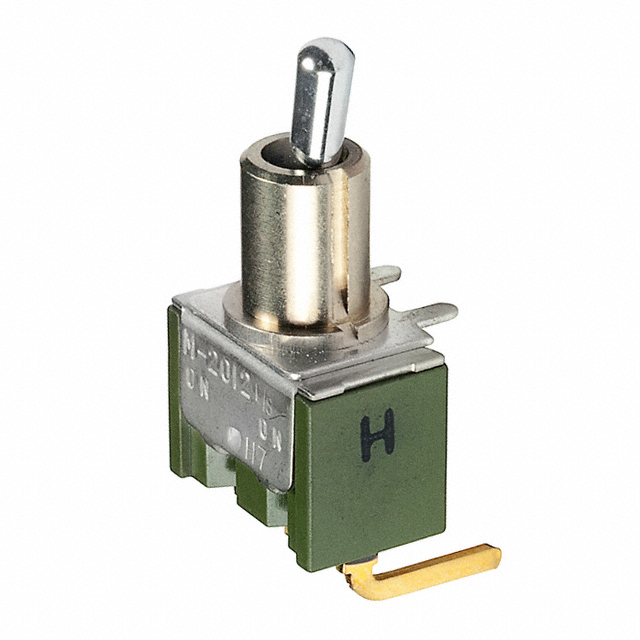

NKK Switches M2012S3S2G30	50000 Cycles	Brass Chrome Plated	PC Pin	Right Angle Through Hole	28 V	On-On	6.5 mm	85 °C	-30 ░C	28 V	Epoxy Sealed Terminals	0.4 VA	SPDT	Unthreaded	Non-Illuminated	Standard Round

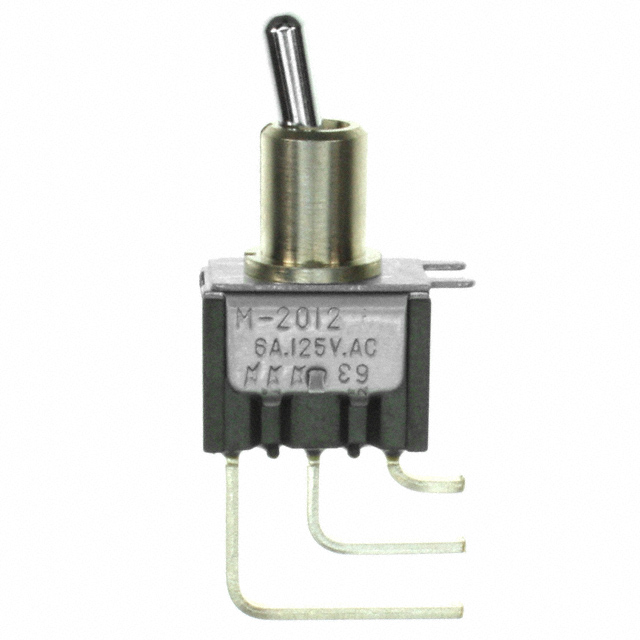

NKK Switches M2012S3S2W40	25000 Steps	Brass Chrome Plated	PC Pin	Right Angle Through Hole Vertical	30 V	On-On	6.5 mm	85 °C	-30 ░C	125 V	Epoxy Sealed Terminals	4 A 6 A	SPDT	Unthreaded	Non-Illuminated	Standard Round

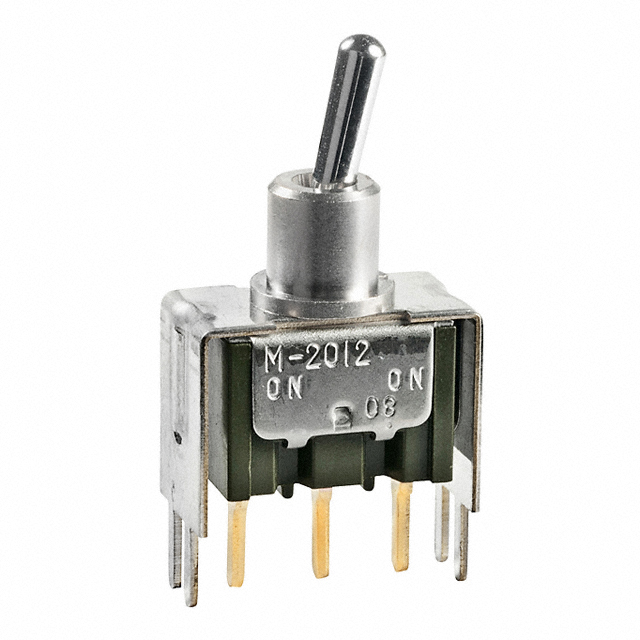

NKK Switches M2012S3A2G13	50000 Cycles	Brass Chrome Plated	PC Pin	Through Hole	28 V	On-On	8.28 mm	85 °C	-30 ░C	28 V	Epoxy Sealed Terminals	0.4 VA	SPDT	Unthreaded	Non-Illuminated	Standard Round	6.5 mm
