NHD-12232 Series

Catalog

LCD MOD GRAPH 122X32 GRN TRANSFL

Part	Dot Pitch [y]	Dot Pitch [x]	Dot Size [x]	Dot Size [y]	Interface	Viewing Area [y]	Viewing Area [x]	Backlight	Display Type	Display Mode	Dot Pitch [custom]	Dot Pitch [custom]	Dot Size [custom]	Dot Size [custom]	Controller Type

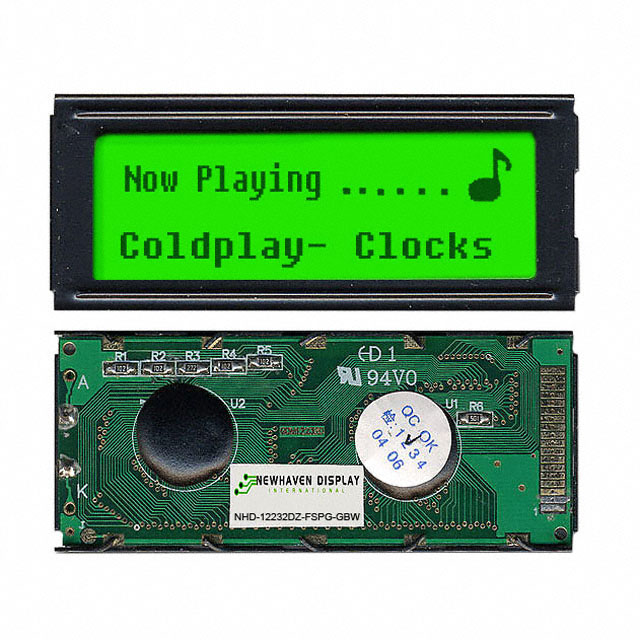

Newhaven Display Intl NHD-12232DZ-FSPG-GBW	0.44 mm	0.4 mm	0.36 mm	0.4 mm	8-Bit Parallel	18.3 mm	59.2 mm	LED - Green	STN - Super-Twisted Nematic	Transflective

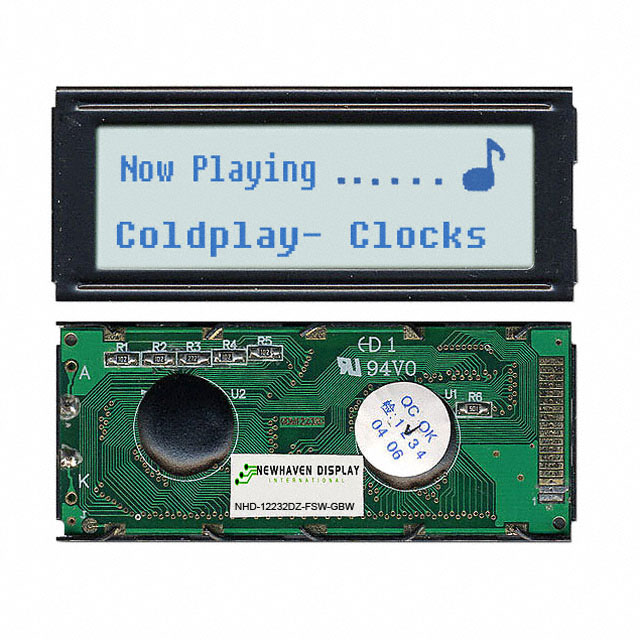

Newhaven Display Intl NHD-12232DZ-FSW-GBW	0.44 mm	0.4 mm	0.36 mm	0.4 mm	8-Bit Parallel	18.3 mm	59.2 mm	LED - White	STN - Super-Twisted Nematic	Transflective

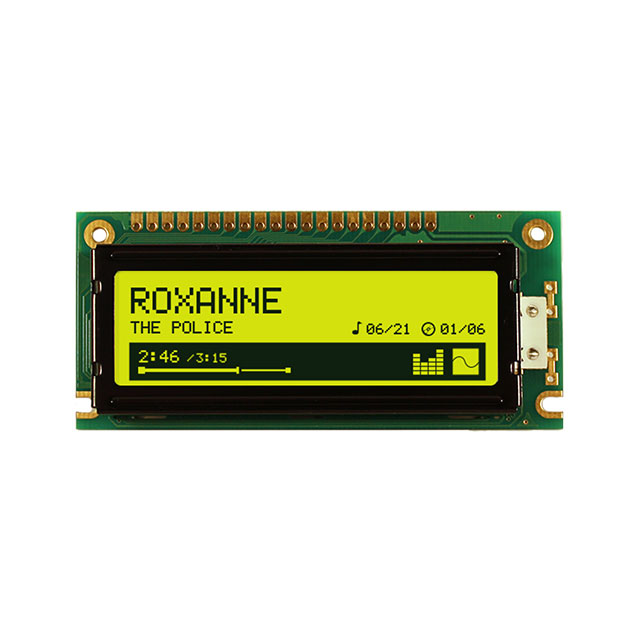

Newhaven Display Intl NHD-12232WG-EYYH-V#A					8-Bit Parallel	18 mm	60 mm		STN - Super-Twisted Nematic	Transflective	0.49 mm	0.44 mm	0.4 mm	0.45 mm	SED-1520

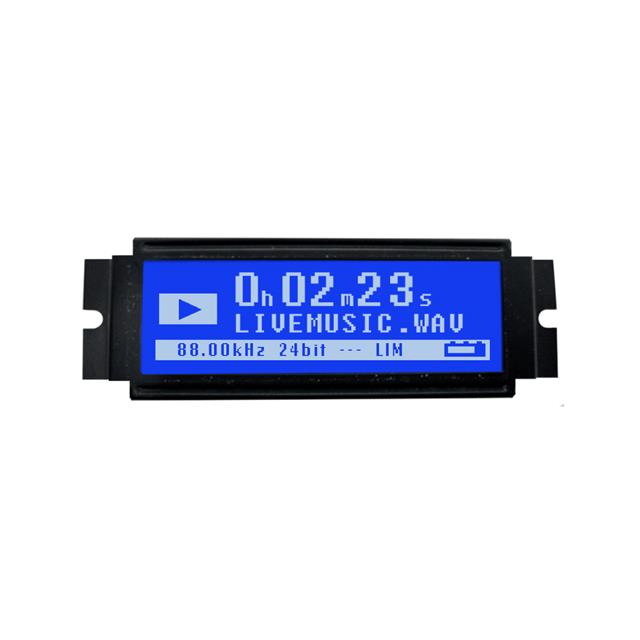

Newhaven Display Intl NHD-12232KZ-NSW-BBW-P	0.49 mm	0.44 mm			8-Bit Parallel	18.5 mm	60.5 mm	LED - White	STN - Super-Twisted Nematic	Transmissive			0.4 mm	0.45 mm	SBN1661G_M02
Newhaven Display Intl NHD-12232AZ-FL-YBW					8-Bit Parallel	17.9 mm	64 mm		STN - Super-Twisted Nematic	Transflective	0.49 mm	0.44 mm	0.4 mm	0.45 mm	SBN1661G_M02

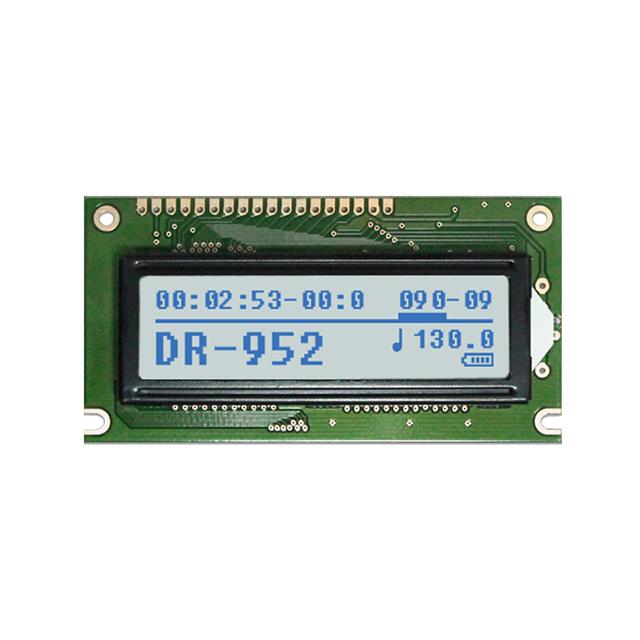

Newhaven Display Intl NHD-12232AZ-FSW-GBW					8-Bit Parallel	17.9 mm	64 mm	LED - White	STN - Super-Twisted Nematic	Transflective	0.49 mm	0.44 mm	0.4 mm	0.45 mm	SBN1661G_M02

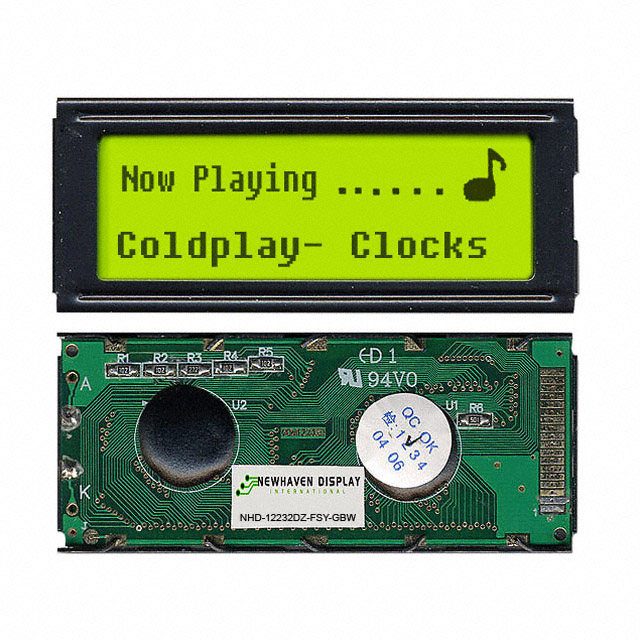

Newhaven Display Intl NHD-12232DZ-FSY-GBW	0.44 mm	0.4 mm	0.36 mm	0.4 mm	8-Bit Parallel	18.3 mm	59.2 mm		STN - Super-Twisted Nematic	Transflective
