UB226KK Series

Catalog

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Type	Voltage Rating - AC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Illumination Type, Color	Current Rating (Amps)	Illumination Voltage (Nominal)	Termination Style	Color - Actuator/Cap	Actuator Marking	Actuator Type	Switch Function	Circuit	Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]

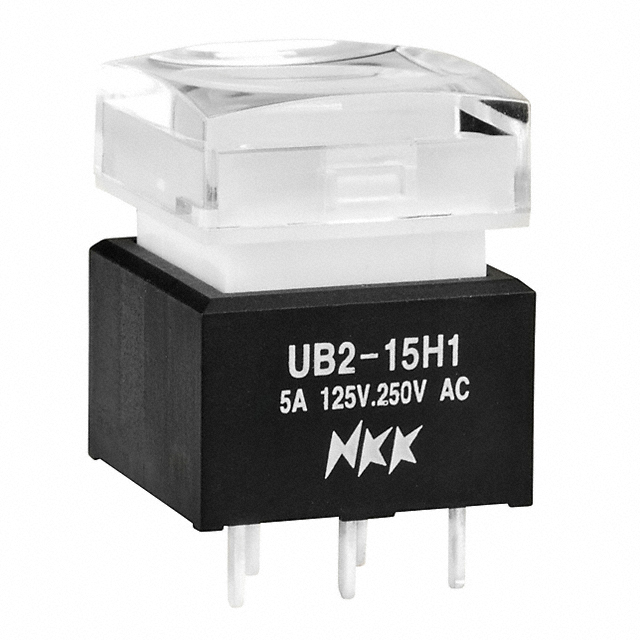

NKK Switches UB226KKG016CF-1JB	200000 Cycles	200000 Cycles	Illuminated Standard	28 V	Panel Mount Snap-In	50 °C	-25 °C	28 V	Green/Red LED	0.4 VA	2.1 VDC 3.5 VDC	Solder Lug	Clear	No Marking	Button Square	On-On	DPDT	Sealed - Fully	17.4 mm	17.4 mm

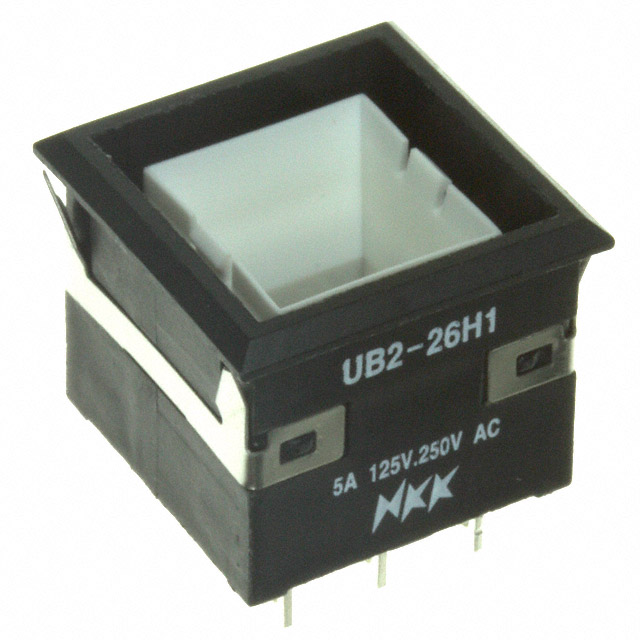

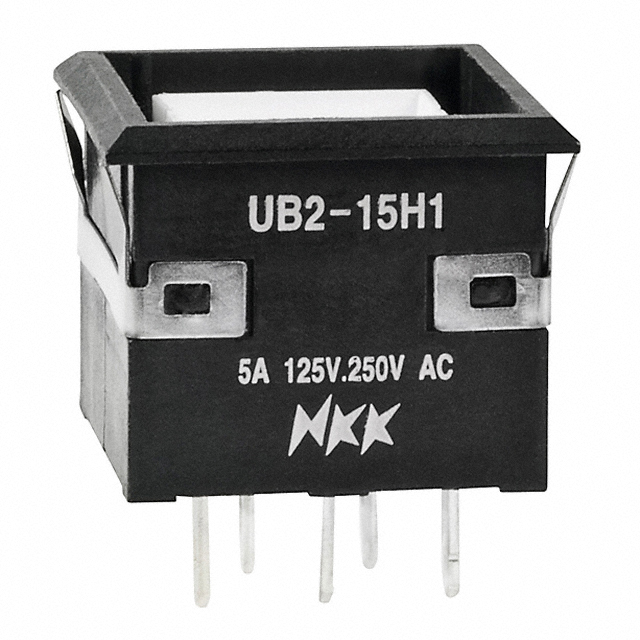

NKK Switches UB226KKW015D	10000 Cycles	200000 Cycles	Illuminated Standard	125 V	Panel Mount Snap-In	50 °C	-25 °C	30 V	Amber LED	5 A	2 VDC	Solder Lug		No Marking	Plunger for Cap	On-On	DPDT	Sealed - Fully	17.4 mm	17.4 mm

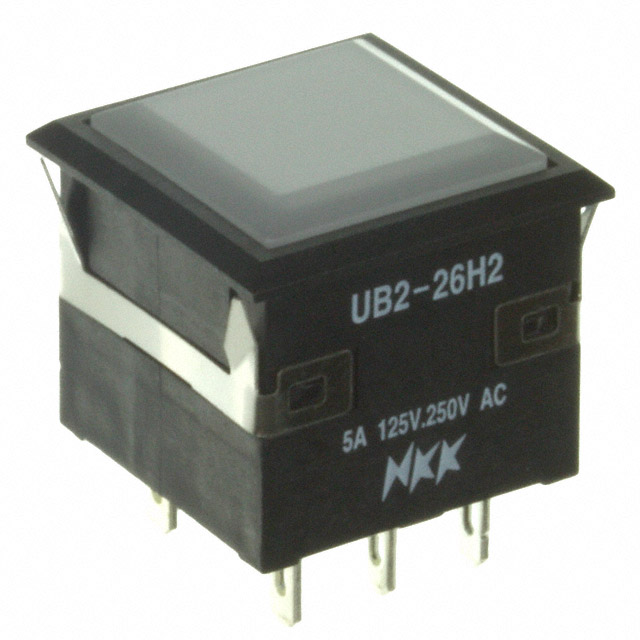

NKK Switches UB226KKW016CF-2B	10000 Cycles	200000 Cycles	Illuminated Standard	125 V	Panel Mount Snap-In	50 °C	-25 °C	30 V	Green/Red LED	5 A	2.1 VDC 3.5 VDC	Solder Lug	White	No Marking	Button Square	On-On	DPDT	Sealed - Fully	17.4 mm	17.4 mm

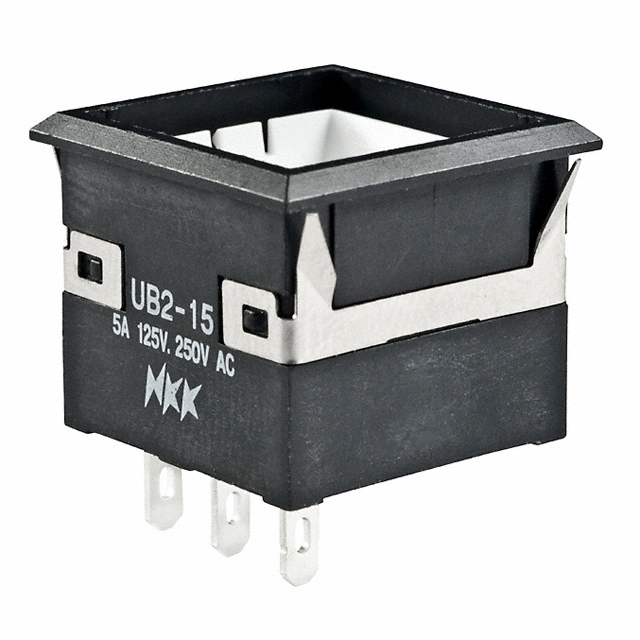

NKK Switches UB226KKW01N-4JF	10000 Cycles	200000 Cycles	Standard	125 V	Panel Mount Snap-In	70 °C	-25 °C	30 V		5 A		Solder Lug	Clear	No Marking	Button Square	On-On	DPDT	Sealed - Fully	17.4 mm	17.4 mm

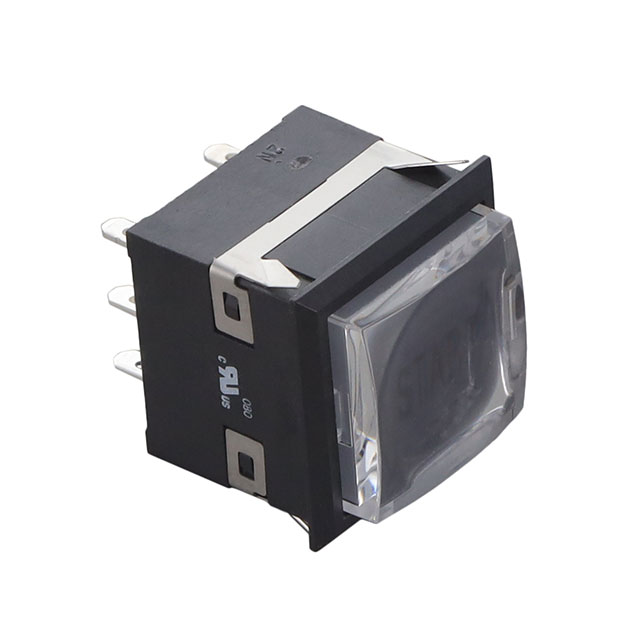

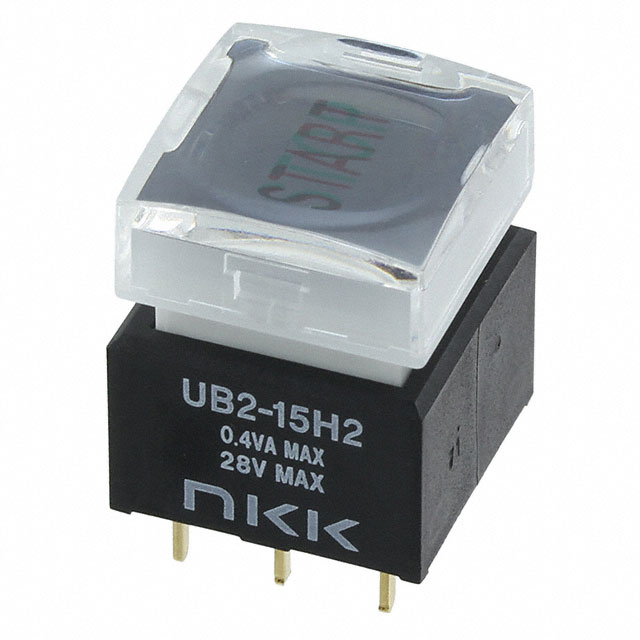

NKK Switches UB226KKW016DG/CUL-4JDG13	10000 Cycles	200000 Cycles	Illuminated Standard	125 V	Panel Mount Snap-In	50 °C	-25 °C	30 V	Amber Blue LED	5 A		Solder Lug	Clear	START/STOP (Alternating)	Alternating Legend Button Square	On-On	DPDT		17.4 mm	17.4 mm	2.8 VDC	2 VDC
NKK Switches UB226KKW016G-1JB	10000 Cycles	200000 Cycles	Illuminated Standard	125 V	Panel Mount Snap-In	50 °C	-25 °C	30 V	Blue LED	5 A	2.9 VDC	Solder Lug	Clear	No Marking	Button Square	On-On	DPDT	Sealed - Fully	17.4 mm	17.4 mm
NKK Switches UB226KKW016DG/CUL	10000 Cycles	200000 Cycles	Illuminated Standard	125 V	Panel Mount Snap-In	50 °C	-25 °C	30 V	Amber Blue LED	5 A		Solder Lug		No Marking	Button Square	On-On	DPDT	Sealed - Fully	17.4 mm	17.4 mm	2.8 VDC	2 VDC

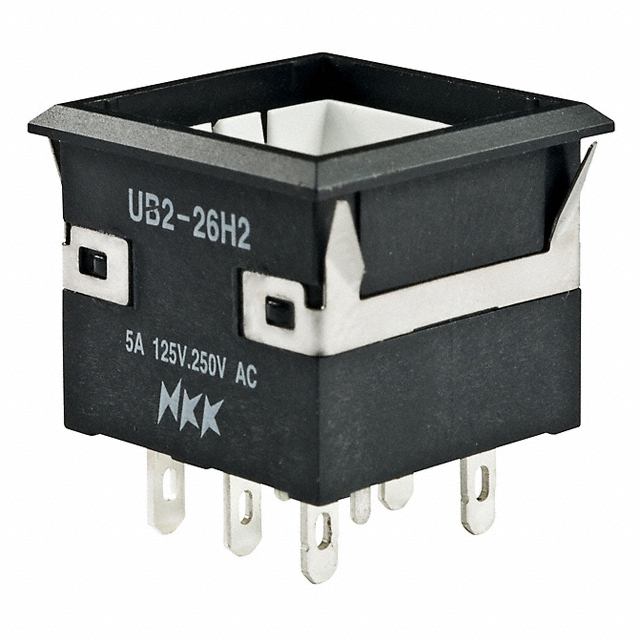

NKK Switches UB226KKW016G	10000 Cycles	200000 Cycles	Illuminated Standard	125 V	Panel Mount Snap-In	50 °C	-25 °C	30 V	Blue LED	5 A	2.9 VDC	Solder Lug		No Marking	Plunger for Cap	On-On	DPDT	Sealed - Fully	17.4 mm	17.4 mm

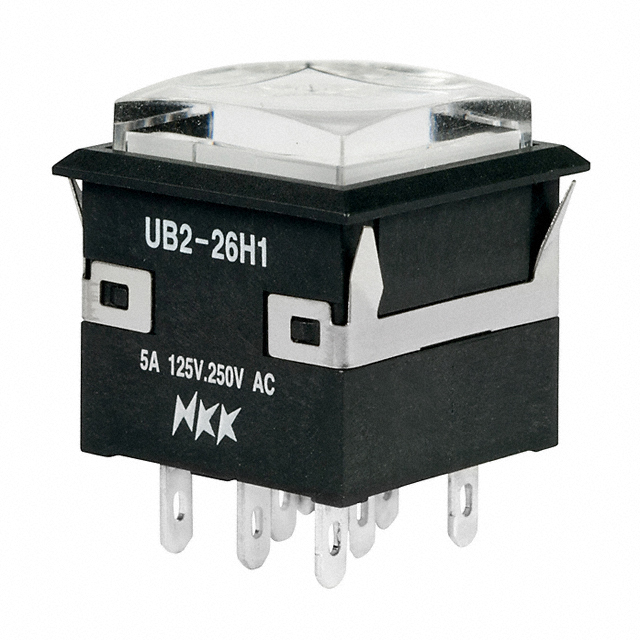

NKK Switches UB226KKW015F-1JB	10000 Cycles	200000 Cycles	Illuminated Standard	125 V	Panel Mount Snap-In	50 °C	-25 °C	30 V	Green LED	5 A	2.1 VDC	Solder Lug	Clear	No Marking	Button Square	On-On	DPDT	Sealed - Fully	17.4 mm	17.4 mm

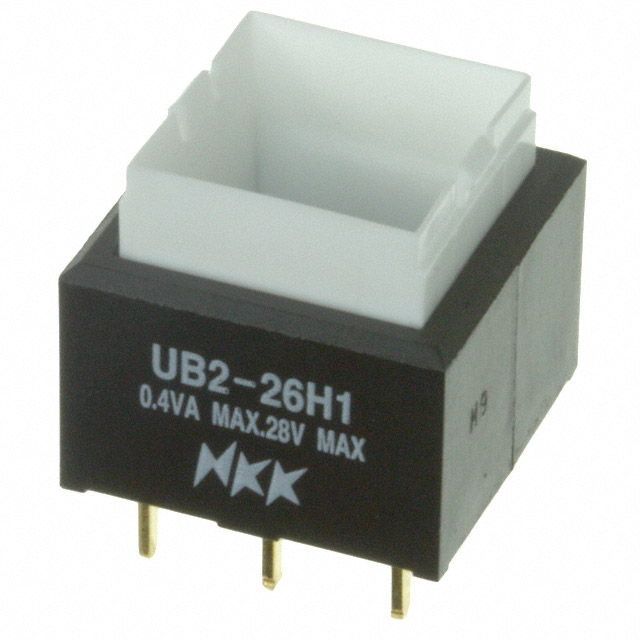

NKK Switches UB226KKG016G-1JB	200000 Cycles	200000 Cycles	Illuminated Standard	28 V	Panel Mount Snap-In	50 °C	-25 °C	28 V	Blue LED	0.4 VA	2.9 VDC	Solder Lug	Clear	No Marking	Button Square	On-On	DPDT	Sealed - Fully	17.4 mm	17.4 mm
