9107-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

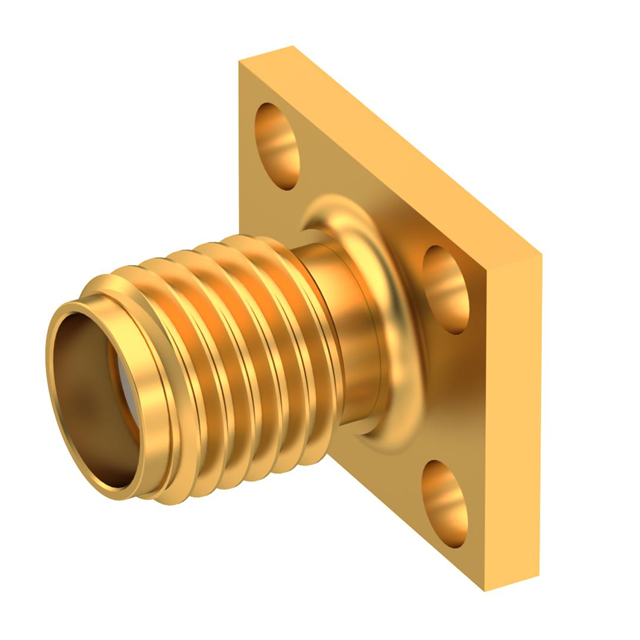

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Body Material | Dielectric Material | Mating Cycles | Center Contact Plating | Impedance | Contact Termination | Housing Color | Mounting Type | Connector Style | Mounting Feature | Number of Ports | Frequency - Max [Max] | Center Contact Material | Shield Termination | Fastening Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | Gold | 50 Ohms | Solder Tab | Gold | Panel Mount Through Hole | SMA | Flange | 1 | 18 GHz | Beryllium Copper | Solder | Threaded | Female Socket Jack |
