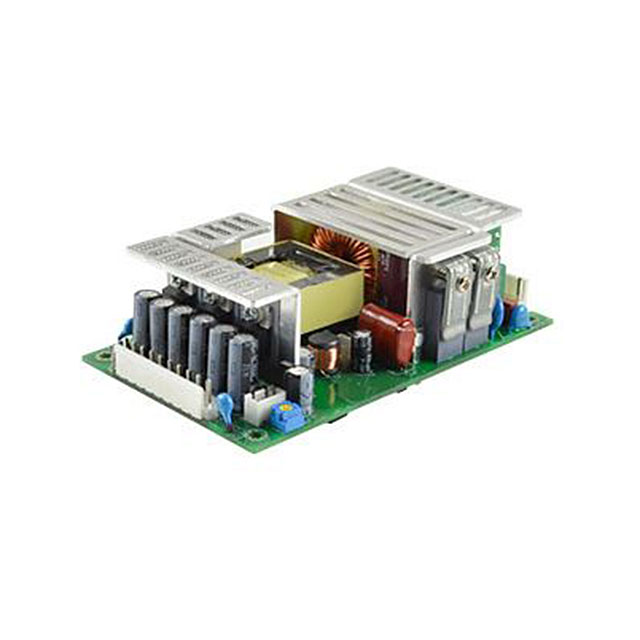

VOF-225 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 15V 120W

Part	Applications	Current - Output 1	Number of Outputs	Mounting Type	Power (Watts)	Standard Number	Features	Voltage - Isolation	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Type	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1 [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]

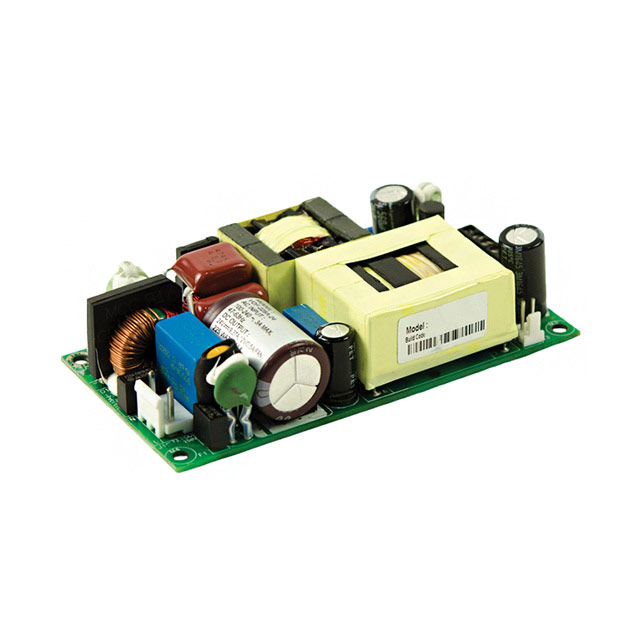

CUI Inc. VOF-225A-15	ITE (Commercial)	8 A	1	Chassis Mount	120 W 225 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Adjustable Output PFC Standby Output Universal Input	3000 V	CB Scheme EN FCC IEC SIQ TUV UL	80 VAC	264 VAC	15 V	Open Frame	92 %	1 in	50.8 mm	4 "	101.6 mm	2 in	25.4 mm
CUI Inc. VOF-225A-58	ITE (Commercial)	2.07 A	1	Chassis Mount	120 W 225 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Adjustable Output PFC Standby Output Universal Input	3000 V	CB Scheme EN FCC IEC SIQ TUV UL	80 VAC	264 VAC		Open Frame	94 %	1 in	50.8 mm	4 "	101.6 mm	2 in	25.4 mm
CUI Inc. VOF-225-36	ITE (Commercial)	3.75 A	1	Chassis Mount	135 W 225 W	60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1	Adjustable Output PFC Standby Output Universal Input	3000 V	CB Scheme CSA EN FCC IEC SIQ TUV UL	90 VAC	277 VAC		Open Frame	90 %	1.38 in		5 "	127 mm	3 "		36 V	70 °C	-20 °C	35 mm	76.2 mm
CUI Inc. VOF-225A-58-1	ITE (Commercial)	2.07 A	1	Chassis Mount	120 W 225 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Adjustable Output PFC Standby Output Universal Input	3000 V	CB Scheme EN FCC IEC SIQ TUV UL	80 VAC	264 VAC		Open Frame	94 %	1 in	50.8 mm	4 "	101.6 mm	2 in	25.4 mm
CUI Inc. VOF-225-48	ITE (Commercial)	2.81 A	1	Chassis Mount	135 W 225 W	60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1	Adjustable Output PFC Standby Output Universal Input	3000 V	CB Scheme CSA EN FCC IEC SIQ TUV UL	90 VAC	277 VAC	48 V	Open Frame	91 %	1.38 in		5 "	127 mm	3 "			70 °C	-20 °C	35 mm	76.2 mm
CUI Inc. VOF-225-12	ITE (Commercial)	11.25 A	1	Chassis Mount	135 W 225 W	60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1	Adjustable Output PFC Standby Output Universal Input	3000 V	CB Scheme CSA EN FCC IEC SIQ TUV UL	90 VAC	277 VAC	12 V	Open Frame	88 %	1.38 in		5 "	127 mm	3 "			70 °C	-20 °C	35 mm	76.2 mm
CUI Inc. VOF-225A-30	ITE (Commercial)	4 A	1	Chassis Mount	120 W 225 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Adjustable Output PFC Standby Output Universal Input	3000 V	CB Scheme EN FCC IEC SIQ TUV UL	80 VAC	264 VAC	30 V	Open Frame	93 %	1 in	50.8 mm	4 "	101.6 mm	2 in	25.4 mm
CUI Inc. VOF-225A-24	ITE (Commercial)	5 A	1	Chassis Mount	120 W 225 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Adjustable Output Standby Output Universal Input	3000 V	CB Scheme EN FCC IEC SIQ TUV UL	80 VAC	264 VAC	24 V	Open Frame	93 %	1 in	50.8 mm	4 "	101.6 mm	2 in	25.4 mm
CUI Inc. VOF-225-15	ITE (Commercial)	9 A	1	Chassis Mount	135 W 225 W	60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1	Adjustable Output PFC Standby Output Universal Input	3000 V	CB Scheme CSA EN FCC IEC SIQ TUV UL	90 VAC	277 VAC	15 V	Open Frame	90 %	1.38 in		5 "	127 mm	3 "			70 °C	-20 °C	35 mm	76.2 mm
CUI Inc. VOF-225A-48	ITE (Commercial)	2.5 A	1	Chassis Mount	120 W 225 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Adjustable Output Standby Output Universal Input	3000 V	CB Scheme EN FCC IEC SIQ TUV UL	80 VAC	264 VAC	48 V	Open Frame	94 %	1 in	50.8 mm	4 "	101.6 mm	2 in	25.4 mm
