2SAR572 Series

PNP, TO-252 (DPAK), -30V -5A, Power Transistor for Automotive

Catalog

PNP, TO-252 (DPAK), -30V -5A, Power Transistor for Automotive

Part	Supplier Device Package	Qualification	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Grade	Current - Collector Cutoff (Max) [Max]	Mounting Type	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Frequency - Transition

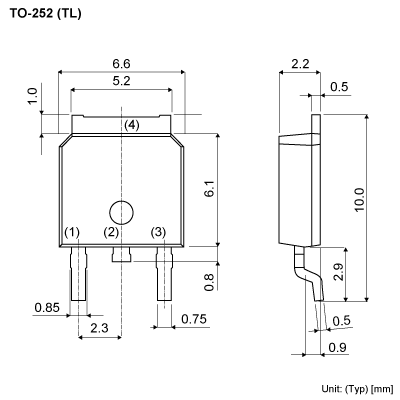

Rohm Semiconductor 2SAR572D3FRATL	TO-252	AEC-Q101	30 V	10 W	Automotive	1 µA	Surface Mount	400 mV	5 A	150 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	200
Rohm Semiconductor 2SAR572DGTL	CPT3		30 V	10 W		1 µA	Surface Mount	400 mV	5 A	150 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	200	PNP	300 MHz
Rohm Semiconductor 2SAR572D3TL1	TO-252		30 V	10 W		1 µA	Surface Mount	400 mV	5 A	150 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	200	PNP	300 MHz

PNP, TO-252 (DPAK), -30V -5A, Power Transistor for Automotive

2SAR572D3FRA is a power transistor with Low VCE(sat), suitable for low frequency amplifier.
