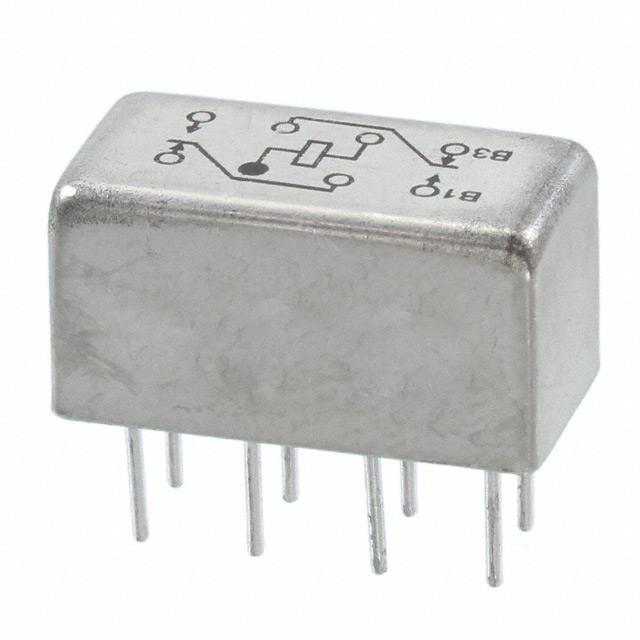

3SBC5 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
RELAY GEN PURPOSE DPDT 2A 26.5V
| Part | Switching Voltage | Coil Current | Mounting Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Must Operate Voltage | Contact Rating (Current) | Seal Rating | Coil Type | Operate Time | Must Release Voltage | Coil Resistance | Coil Voltage | Load - Max Switching | Contact Form | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 28 VDC 115 VAC | 19.6 mA | Through Hole | PC Pin | 125 °C | -65 ░C | 4 ms | 13.5 VDC | 2 A | Sealed - Hermetically | Non Latching | 4 ms | 1.5 VDC | 1.35 kOhms | 26.5 VDC | 56 W 230 VA | DPDT (2 Form C) | General Purpose |
TE Connectivity Aerospace, Defense and Marine | 28 VDC 115 VAC | 19.6 mA | Through Hole | PC Pin | 125 °C | -65 ░C | 6 ms | 2 A | Sealed - Hermetically | Non Latching | 4 ms | 1.35 kOhms | 26.5 VDC | 56 W 230 VA | DPDT (2 Form C) | General Purpose | ||
TE Connectivity Aerospace, Defense and Marine | 19.6 mA | Through Hole | PC Pin | 125 °C | -65 ░C | 4 ms | 13.5 VDC | 2 A | Non Latching | 4 ms | 1.5 VDC | 1.35 kOhms | 26.5 VDC | DPDT (2 Form C) | General Purpose |
