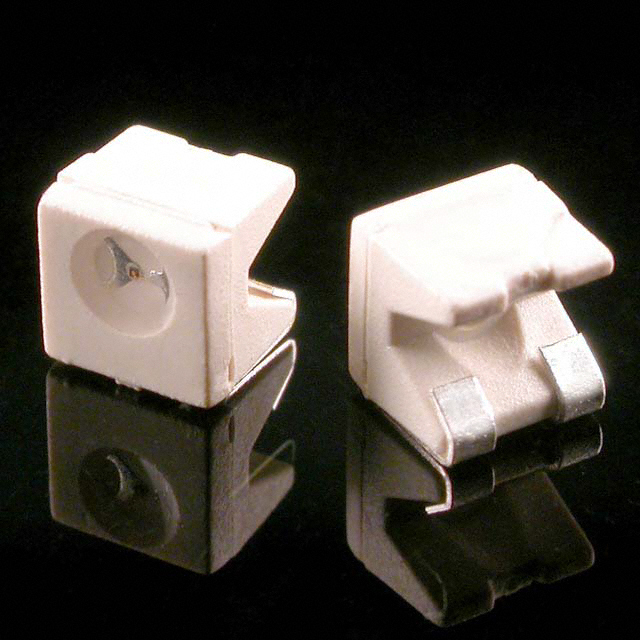

AA4040 Series

Catalog

LED GREEN/RED CLEAR SMD R/A

Part	Lens Color	Color	Wavelength - Dominant	Lens Style	Lens Size [diameter]	Viewing Angle	Lens Transparency	Current - Test [custom]	Current - Test [custom]	Supplier Device Package	Height (Max) [Max] [z]	Package / Case	Mounting Type	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Height (Max) [z]	Current - Test	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Orientation [custom]	Current - Dark (Id) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Power - Max [Max]
Kingbright AA4040SRCGKC-R	Colorless	Green Red	570 nm 640 nm	Round with Flat Top	2.4 mm Dia	120 °	Clear	20 mA	20 mA	SMD	4.1 mm	2-SMD Boomerang	Right Angle Surface Mount	574 nm 655 nm	3.6 mm	4 mm	1.85 V 2.1 V	90 mcd 200 mcd
Kingbright AA4040QBC/D	Colorless	Blue	470 nm	Round with Flat Top	2.4 mm Dia	90 °	Clear			SMD		2-SMD Boomerang	Right Angle Surface Mount	468 nm	3.6 mm	4 mm	3.3 V	150 mcd	4 mm	20 mA	Standard
Kingbright AA4040SRSYKCT-R	Colorless	Red	640 nm	Round with Flat Top	2.4 mm Dia	120 °	Clear			SMD	4.25 mm	2-SMD Boomerang	Right Angle Surface Mount	655 nm	3.6 mm	4 mm	1.85 V	60 mcd		20 mA	Standard

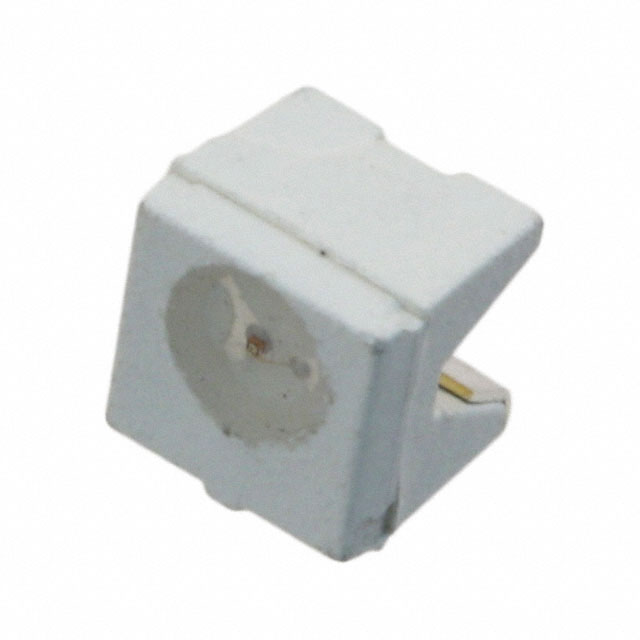

Kingbright AA4040SGS	Colorless	Green	568 nm	Round with Flat Top	2.4 mm Dia	120 °	Clear			SMD		2-SMD Boomerang	Right Angle Surface Mount	565 nm	3.6 mm	4 mm	2.2 V	30 mcd	4 mm	20 mA	Standard
Kingbright AA4040SURCK	Colorless	Red	630 nm	Round with Flat Top	2.4 mm Dia	90 °	Clear			SMD		2-SMD Boomerang	Right Angle Surface Mount	650 nm	3.6 mm	4 mm	1.95 V	250 mcd	4 mm	20 mA	Standard
Kingbright AA4040QBS/D	Colorless	Blue	465 nm	Round with Flat Top	2.4 mm Dia	120 °	Clear			SMD		2-SMD Boomerang	Right Angle Surface Mount	460 nm	3.6 mm	4 mm	3.3 V	220 mcd	4 mm	20 mA	Standard

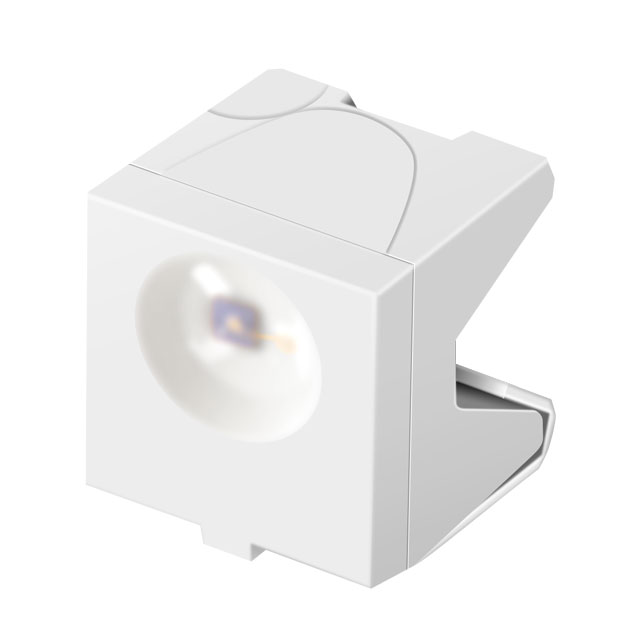

Kingbright AA4040P3C-P22						120 °						2-SMD Boomerang	Right Angle Surface Mount									30 V	600 µA	Side View	100 nA	85 °C	-40 C	940 nm	100 mW

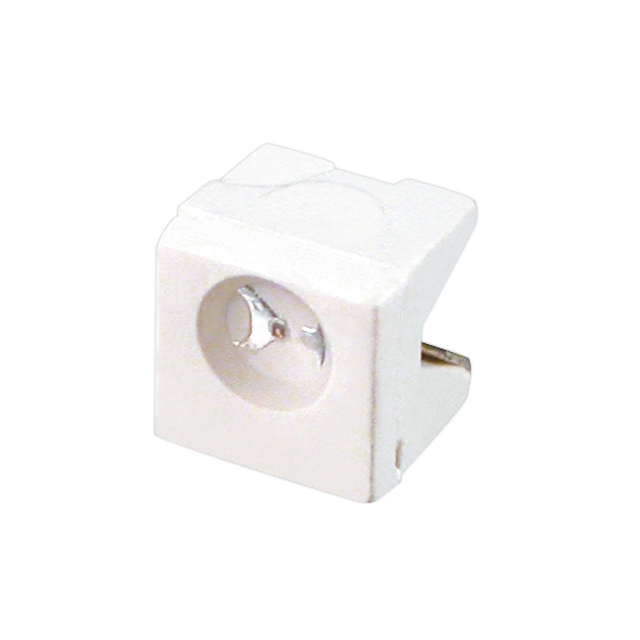

Kingbright AA4040ZGCKT	Colorless	Green	525 nm	Round with Flat Top	2.4 mm Dia	120 °	Clear			2-SMD	4.1 mm	2-SMD Boomerang	Right Angle Surface Mount	515 nm	4 mm	3.6 mm	3.3 V	800 mcd		20 mA	Independent
Kingbright AA4040CGCK	Colorless	Green	570 nm	Round with Flat Top	2.4 mm Dia	120 °	Clear			SMD		2-SMD Boomerang	Right Angle Surface Mount		3.6 mm	4 mm	2.1 V	70 mcd	4 mm	20 mA	Standard
Kingbright AA4040SGC	Colorless	Green	568 nm	Round with Flat Top	2.4 mm Dia	90 °	Clear			SMD		2-SMD Boomerang	Right Angle Surface Mount	565 nm	3.6 mm	4 mm	2.2 V	25 mcd	4 mm	20 mA	Standard
