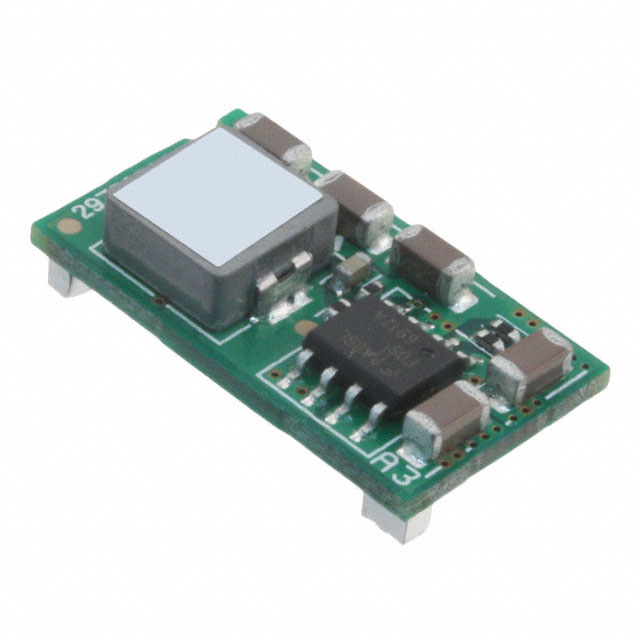

DNT12S0 Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER 0.75-5V 25W
| Part | Applications | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Control Features | Voltage - Input (Min) [Min] | Features | Efficiency | Power (Watts) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Package / Case | Current - Output (Max) | Type | Number of Outputs | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | ITE (Commercial) | 0.75 V | 5 V | Active Low Enable | 8.3 V | OCP Remote On/Off UVLO | 92 % | 25 W | 0.9 in | 0.25 in | 10.2 mm | 6.3 mm | 22.9 mm | 0.4 " | Through Hole | 5-SIP Module | 5 A | Non-Isolated PoL Module | 1 | 14 V | 125 °C | -40 C | |
 Delta Electronics | ITE (Commercial) | 0.75 V | 5.5 V | Active Low Enable | 8.3 V | OCP Remote On/Off UVLO | 92 % | 25 W | 0.8 " | 0.45 in | 6.9 mm | 11.4 mm | 20.3 mm | 0.27 " | Surface Mount | 5-SMD Module | 5 A | Non-Isolated PoL Module | 1 | 14 V | 125 °C | -40 C | |
Delta Electronics | ITE (Commercial) | 0.75 V | 5 V | Active Low Enable | 8.3 V | OCP Remote On/Off UVLO | 92.5 % | 15 W | 0.9 in | 0.25 in | 10.2 mm | 6.3 mm | 22.9 mm | 0.4 " | Through Hole | 5-SIP Module | Non-Isolated PoL Module | 1 | 14 V | 125 °C | -40 C | 3 A |
