ID15P33 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

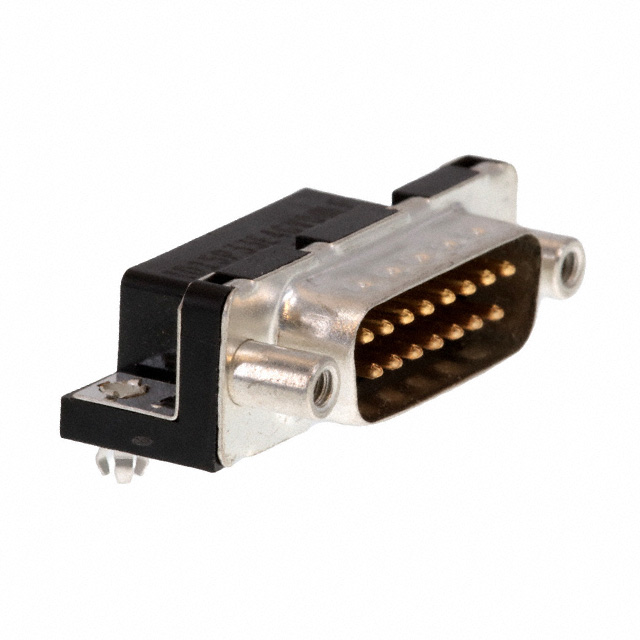

CONN D-SUB PLUG 15POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Contact Material | Color | Material Flammability Rating | Connector Type | Mounting Type | Number of Rows [custom] | Termination | Backset Spacing | Backset Spacing | Contact Finish Thickness | Shell Size, Connector Layout | Contact Type | Number of Positions | Flange Feature | Flange Feature | Connector Style | Contact Finish | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | -55 C | 125 °C | 300 VDC | Polyester | Copper Alloy | Black | UL94 V-0 | Plug Male Pins | Right Angle Through Hole | 2 | Solder | 8.08 mm | 0.318 " | Flash | 2 | Signal | 15 | Housing/Shell | 4-40 | D-Sub | Gold | 5 A | Board Lock Grounding Indents Mounting Brackets |
Amphenol ICC (FCI) | -55 C | 125 °C | 300 VDC | Polyester | Black | Plug Male Pins | Right Angle Through Hole | 2 | Solder | Flash | 2 | Signal | 15 | 4-40 Mating Side Female Screwlock | D-Sub | Gold | 5 A | Board Lock | |||||
Amphenol ICC (FCI) | -55 C | 125 °C | 300 VDC | Polyester | Black | Plug Male Pins | Right Angle Through Hole | 2 | Solder | Flash | 2 | Signal | 15 | Housing/Shell | 4-40 | D-Sub | Gold | 5 A | Board Lock | ||||
 Amphenol ICC (FCI) | -55 C | 125 °C | 300 VDC | Polyester | Copper Alloy | Black | UL94 V-0 | Plug Male Pins | Right Angle Through Hole | 2 | Solder | 8.08 mm | 0.318 " | Flash | 2 | Signal | 15 | 4-40 Mating Side Female Screwlock | D-Sub | Gold | 5 A | Board Lock Grounding Indents Mounting Brackets |
