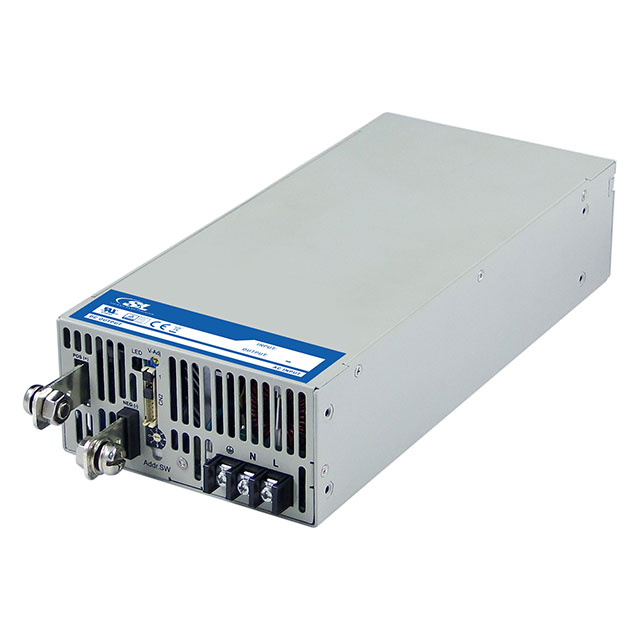

TF1500 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 48V 31.37A 1500W CARTON
| Part | Voltage - Isolation | Applications | Number of Outputs | Type | Efficiency | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Current - Output 1 | Mounting Type | Voltage - Output 1 | Features | Power (Watts) | Approval Agency | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 3000 V | ITE (Commercial) | 1 | Enclosed | 92 % | 100 VAC 127 VDC | 240 VAC 370 VDC | 60 °C | -25 °C | 279.9 mm | 11.02 in | 5 in | 5 in | 64 mm | 2.52 in | 31.37 A | Chassis Mount | 48 V | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | 1506 W | CE cURus TUV | |
SL POWER / Advanced Energy | 3000 V | ITE (Commercial) | 1 | Enclosed | 93 % | 100 VAC 127 VDC | 240 VAC 370 VDC | 60 °C | -25 °C | 279.9 mm | 11.02 in | 5 in | 5 in | 64 mm | 2.52 in | 25 A | Chassis Mount | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | 1500 W | CE cURus TUV | 60 V | |
SL POWER / Advanced Energy | 3000 V | ITE (Commercial) | 1 | Enclosed | 89 % | 100 VAC 127 VDC | 240 VAC 370 VDC | 60 °C | -25 °C | 279.9 mm | 11.02 in | 5 in | 5 in | 64 mm | 2.52 in | 125 A | Chassis Mount | 12 V | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | 1500 W | CE cURus TUV | |
 SL POWER / Advanced Energy | 3000 V | ITE (Commercial) | 1 | Enclosed | 92 % | 100 VAC 127 VDC | 240 VAC 370 VDC | 60 °C | -25 °C | 279.9 mm | 11.02 in | 5 in | 5 in | 64 mm | 2.52 in | 62.5 A | Chassis Mount | 24 V | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | 1500 W | CE cURus TUV | |
SL POWER / Advanced Energy | 3000 V | ITE (Commercial) | 1 | Enclosed | 90 % | 100 VAC 127 VDC | 240 VAC 370 VDC | 60 °C | -25 °C | 279.9 mm | 11.02 in | 5 in | 5 in | 64 mm | 2.52 in | 100 A | Chassis Mount | 15 V | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | 1500 W | CE cURus TUV |
