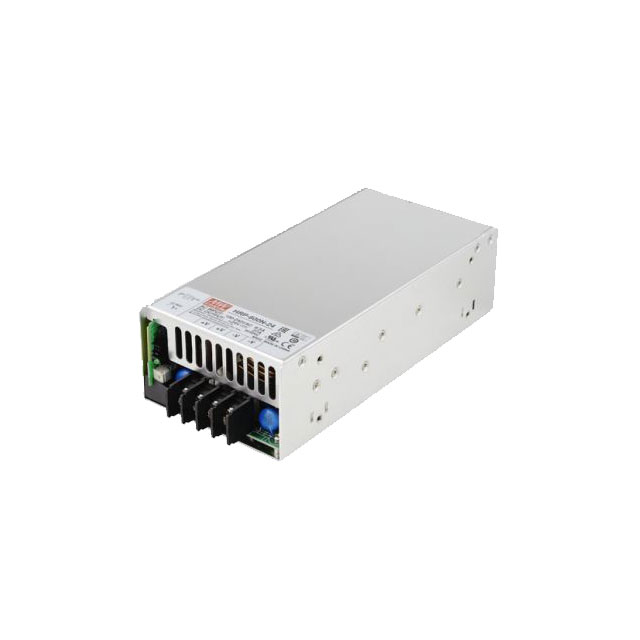

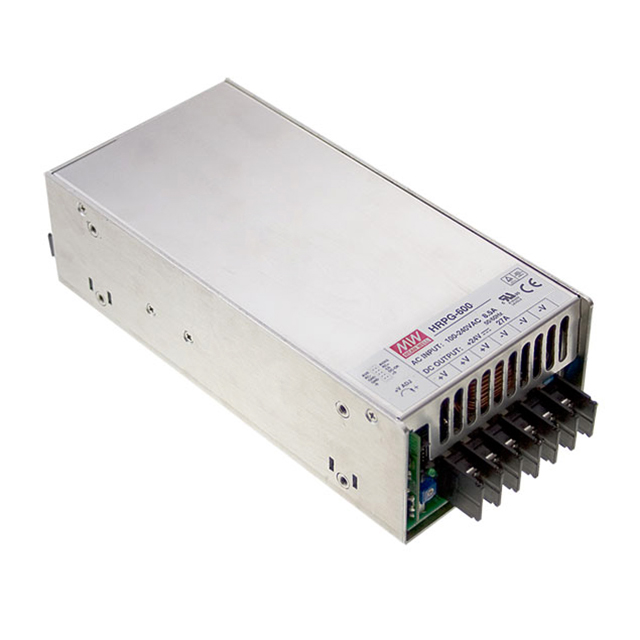

HRP-600 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 600W
| Part | Minimum Load Required | Applications | Power (Watts) | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Voltage - Output 1 | Voltage - Isolation | Mounting Type | Type | Features | Number of Outputs | Standard Number | Efficiency | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | 600 W | 63.5 mm | 4.13 in | 2.5 in | 8.58 in | 218 mm | 105 mm | 120 A | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus TUV | 5 V | 3000 V | Chassis Mount | Enclosed | Adjustable Output PFC Remote Sense Universal Input | 1 | ||||
 MEAN WELL USA Inc. | ITE (Commercial) | 636 W | 61.5 mm | 4.13 in | 2.42 " | 8.58 in | 218 mm | 105 mm | 53 A | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus EAC TUV | 12 V | 3000 V | Chassis Mount | Enclosed | Adjustable Output PFC Remote Sense Universal Input | 1 | 62368-1 | 88 % | ||
MEAN WELL USA Inc. | ITE (Commercial) | 396 W | 63.5 mm | 4.13 in | 2.5 in | 8.58 in | 218 mm | 105 mm | 120 A | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus TUV | 3.3 V | 3000 V | Chassis Mount | Enclosed | Adjustable Output PFC Remote Sense Universal Input | 1 | 78.5 % | |||
MEAN WELL USA Inc. | ITE (Commercial) | 630 Watts | 63.5 mm | 4.13 in | 2.5 in | 8.58 in | 218 mm | 105 mm | 17.5 A | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus TUV | 3000 V | Chassis Mount | Enclosed | Adjustable Output PFC Remote Sense Universal Input | 1 | 89 % | 36 V | |||
MEAN WELL USA Inc. | ITE (Commercial) | 624 W | 61.5 mm | 4.13 in | 2.42 " | 8.58 in | 218 mm | 105 mm | 13 A | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus EAC TUV | 48 V | 3000 V | Chassis Mount | Enclosed | Adjustable Output PFC Remote Sense Universal Input | 1 | 62368-1 | 89 % | ||
MEAN WELL USA Inc. | ITE (Commercial) | 630 Watts | 61.5 mm | 4.13 in | 2.42 " | 8.58 in | 218 mm | 105 mm | 17.5 A | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus EAC TUV | 3000 V | Chassis Mount | Enclosed | Adjustable Output PFC Remote Sense Universal Input | 1 | 62368-1 | 89 % | 36 V | ||
MEAN WELL USA Inc. | ITE (Commercial) | 645 W | 63.5 mm | 4.13 in | 2.5 in | 8.58 in | 218 mm | 105 mm | 43 A | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus TUV | 15 V | 3000 V | Chassis Mount | Enclosed | Adjustable Output PFC Remote Sense Universal Input | 1 | 88 % | |||
MEAN WELL USA Inc. | ITE (Commercial) | 600 W | 63.5 mm | 4.13 in | 2.5 in | 8.58 in | 218 mm | 105 mm | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus TUV | 7.5 V | 3000 V | Chassis Mount | Enclosed | Adjustable Output PFC Remote Sense Universal Input | 1 | 87 % | ||||
MEAN WELL USA Inc. | ITE (Commercial) | 648 W | 63.5 mm | 4.13 in | 2.5 in | 8.58 in | 218 mm | 105 mm | 27 A | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus TUV | 24 V | 3000 V | Chassis Mount | Enclosed | Adjustable Output PFC Remote Sense Universal Input | 1 | 88 % | |||
MEAN WELL USA Inc. | ITE (Commercial) | 648 W | 61.5 mm | 4.13 in | 2.42 " | 8.58 in | 218 mm | 105 mm | 27 A | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus EAC TUV | 24 V | 3000 V | Chassis Mount | Enclosed | Adjustable Output PFC Remote Sense Universal Input | 1 | 62368-1 | 88 % |
