277151 Series

Catalog

CONN RING FLAT 1/0AL 2CU #1/4

Part	Insulation	Termination	Terminal Type	Mounting Type	Length - Overall [x]	Length - Overall	Wire Gauge	Contact Material	Width - Outer Edges [y]	Width - Outer Edges	Thickness	Thickness	Stud/Tab Size	Contact Finish	Insulation Diameter [Min]	Insulation Diameter	Insulation Diameter [Max]

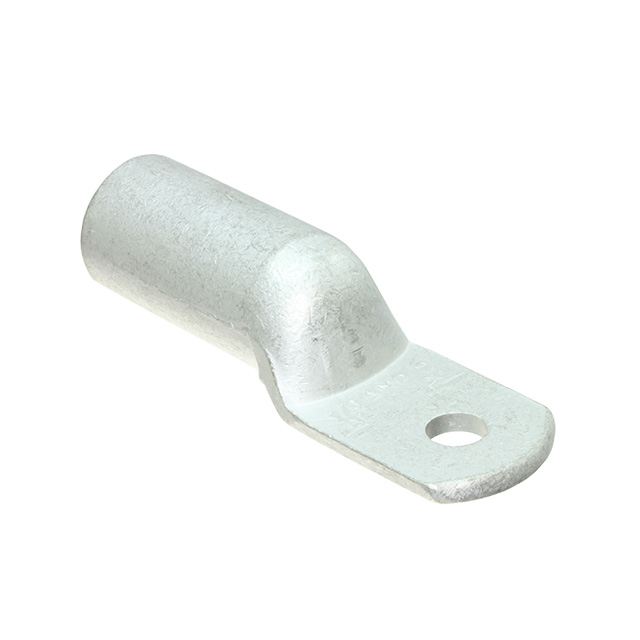

TE Connectivity Aerospace, Defense and Marine 277151-3	Non-Insulated	Crimp	Flat Sided Tubular (Battery Lugs)	Free Hanging (In-Line)	2.51 in	63.75 mm	1 aught AWG 2 AWG	Copper	0.812 in	20.62 mm	2.54 mm	0.1 in	0.25 Stud	Tin	0.425 in	10.79 mm 11.94 mm	0.47 in

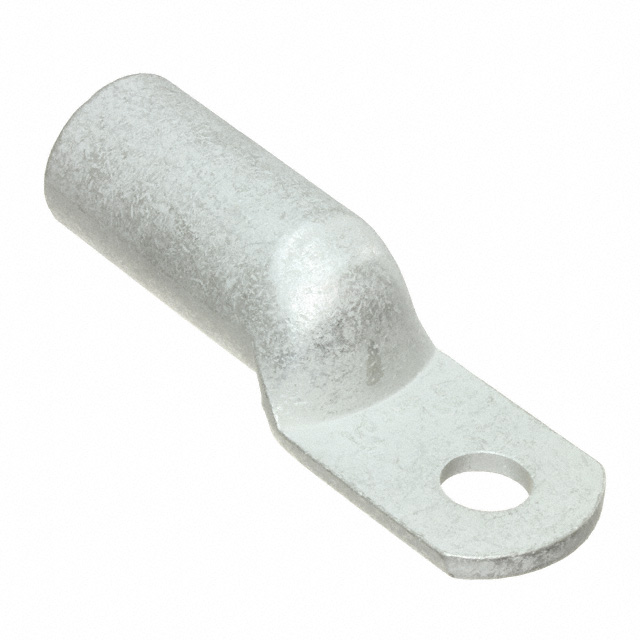

TE Connectivity Aerospace, Defense and Marine 277151-7	Non-Insulated	Crimp	Flat Sided Tubular (Battery Lugs)	Free Hanging (In-Line)	2.51 in	63.75 mm	1 aught AWG 2 AWG	Copper	0.812 in	20.62 mm	2.54 mm	0.1 in	0.3125 Stud	Tin	0.425 in	10.79 mm 11.94 mm	0.47 in
