DY040 Series

Catalog

AC/DC CONVERTER 12V 5V 45W

Part	Current - Output 2	Voltage - Input [Max]	Voltage - Input [Min]	Features	Power (Watts)	Mounting Type	Voltage - Output 1	Current - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Type	Voltage - Output 2	Operating Temperature [Max]	Number of Outputs	Voltage - Output 3	Current - Output 3

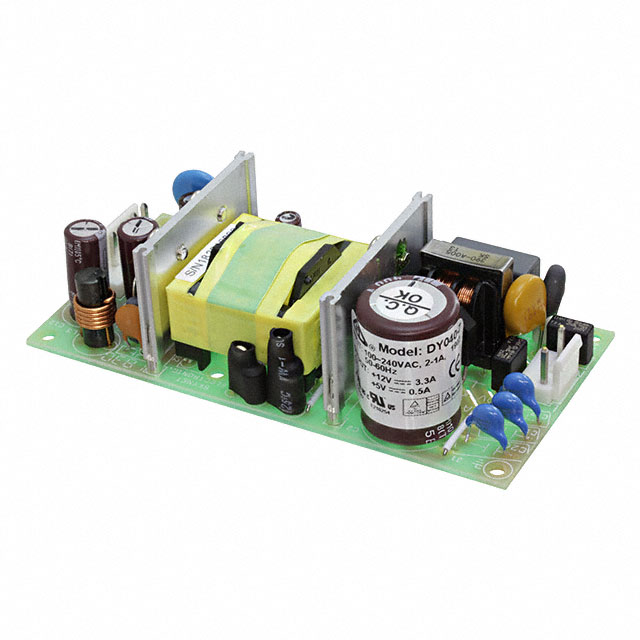

Tri-Mag, LLC DY040-7	500 mA	264 VAC	90 VAC	Universal Input	45 W	Chassis Mount	12 V	3.3 A	50.8 mm	28 mm	101.6 mm	4 "	1.2 "	2 in	ITE (Commercial)	Open Frame	5 V	70 °C	2
Tri-Mag, LLC DY040-2	2 A	264 VAC	90 VAC	Universal Input	45 W	Chassis Mount	5 V	3 A	50.8 mm	28 mm	101.6 mm	4 "	1.2 "	2 in	ITE (Commercial)	Open Frame	12 V	70 °C	3	-12 V	300 mA
Tri-Mag, LLC DY040-3	2.3 A	264 VAC	90 VAC	Universal Input	45 W	Chassis Mount	5 V	3 A	50.8 mm	28 mm	101.6 mm	4 "	1.2 "	2 in	ITE (Commercial)	Open Frame	12 V	70 °C	2
Tri-Mag, LLC DY040-6		264 VAC	90 VAC	Universal Input	45 W	Chassis Mount	5 V	7 A	50.8 mm	28 mm	101.6 mm	4 "	1.2 "	2 in	ITE (Commercial)	Open Frame		70 °C	1

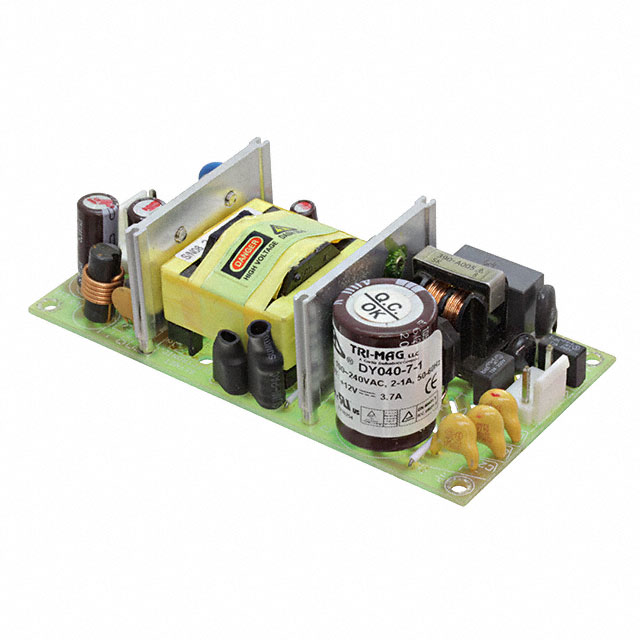

Tri-Mag, LLC DY040-7-1		264 VAC	90 VAC	Universal Input	45 W	Chassis Mount	12 V	3.3 A	50.8 mm	28 mm	101.6 mm	4 "	1.2 "	2 in	ITE (Commercial)	Open Frame		70 °C	1
Tri-Mag, LLC DY040-9-1		264 VAC	90 VAC	Universal Input	45 W	Chassis Mount	24 V	1.9 A	50.8 mm	28 mm	101.6 mm	4 "	1.2 "	2 in	ITE (Commercial)	Open Frame		70 °C	1
