BA10393 Series

Catalog

ANALOGUE COMPARATOR, DUAL, GENERAL PURPOSE, 2, 1.3 S, 2V TO 36V, SOIC, 8 ROHS COMPLIANT: YES

Part	Voltage - Supply, Single/Dual (Ý) [Min]	Voltage - Supply, Single/Dual (Ý) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Input Bias (Max)	Current - Quiescent (Max) [Max]	Supplier Device Package	Package / Case	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Number of Elements	Current - Output (Typ)	Voltage - Input Offset (Max) [Max]	Mounting Type	Output Type	Current - Input Bias (Max) [Max]

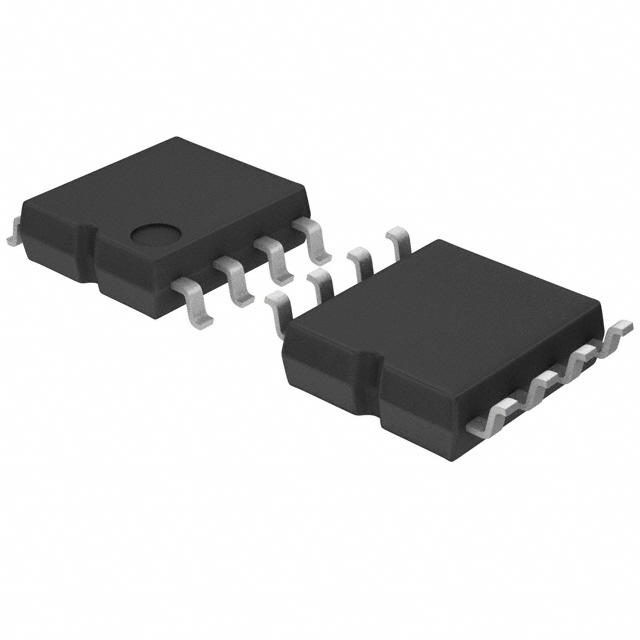

Rohm Semiconductor BA10393F-E2	1 V 2 V	18 V 36 V	85 °C	-40 C	General Purpose Standard (General Purpose)	0.25 çA	1 mA	8-SOP	8-SOIC (0.173" 4.40mm Width)	1 V 2 V	18 V 36 V	2	16 mA	5 mV	Surface Mount	Open-Collector	0.25 µA

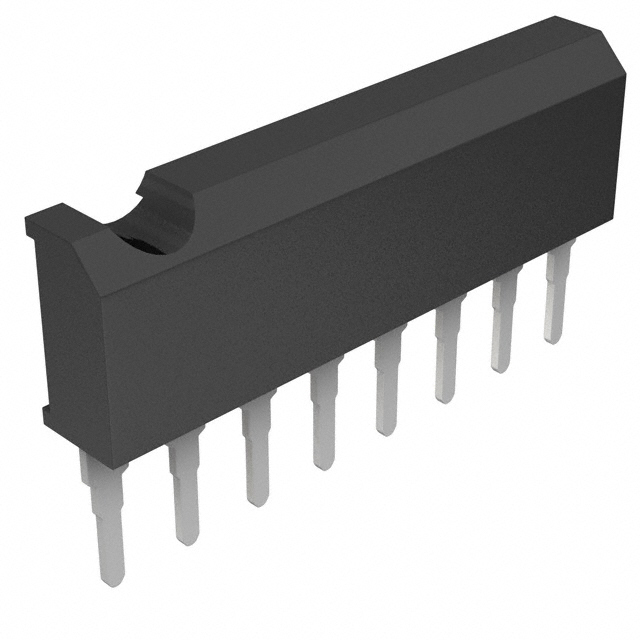

Rohm Semiconductor BA10393N			85 °C	-40 C	General Purpose Standard (General Purpose)		1 mA	8-SIP	8-SIP	1 V 2 V	18 V 36 V	2	16 mA	5 mV	Through Hole	Open-Collector	0.25 µA
Rohm Semiconductor BA10393			85 °C	-40 C	General Purpose Standard (General Purpose)		1 mA	8-DIP	8-DIP (0.300" 7.62mm)	1 V 2 V	18 V 36 V	2	16 mA	5 mV	Through Hole	Open-Collector	0.25 µA
