EFB0612 Series

Catalog

FAN AXIAL 60X10MM 12VDC WIRE

Part	Material - Blade	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Frame	Power (Watts)	Termination	Bearing Type	RPM	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Static Pressure	Static Pressure	Noise	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Fan Type	Voltage - Rated	Weight	Weight	Features	Width [x]	Weight [custom]	Weight [custom]	Size / Dimension [diameter]

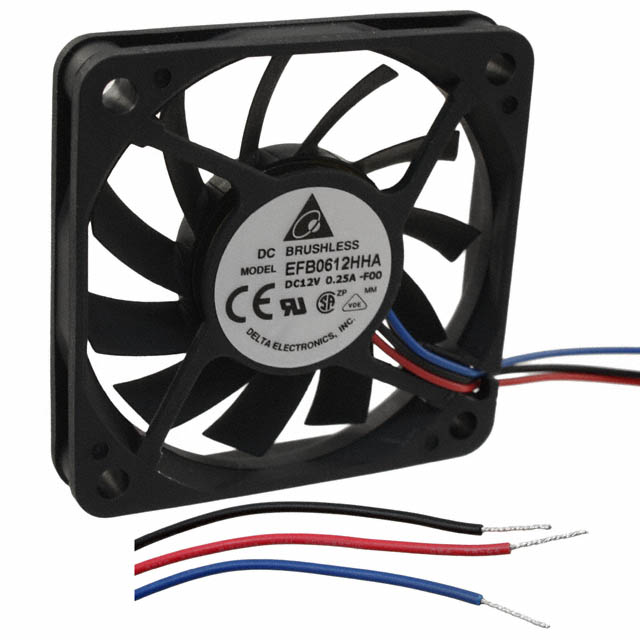

Delta Electronics EFB0612HHA-F00	Plastic	70000 Hrs	13.8 VDC	7 V	0.18 A	Plastic	2.16 W	3 Wire Leads	Ball	4800 RPM	70 °C	-10 °C	10 mm	0.169 in H2O	42.1 Pa	36.5 dB(A)	CE CSA UL VDE	60 mm	60 mm	0.594 m³/min	21.2 CFM	Tubeaxial	12 VDC	0.062 lb	28.12 g	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics EFB0612LA-R00	Plastic	70000 Hrs	13.8 VDC	7 V	70 mA	Plastic	840 mW	3 Wire Leads	Ball	3000 RPM	70 °C	-10 °C	10 mm	0.065 in H2O	16.2 Pa	24.5 dB(A)	CE CSA UL VDE	60 mm	60 mm	0.375 mł/min	13.4 CFM	Tubeaxial	12 VDC	0.062 lb	28.12 g	Locked Rotor Sensor

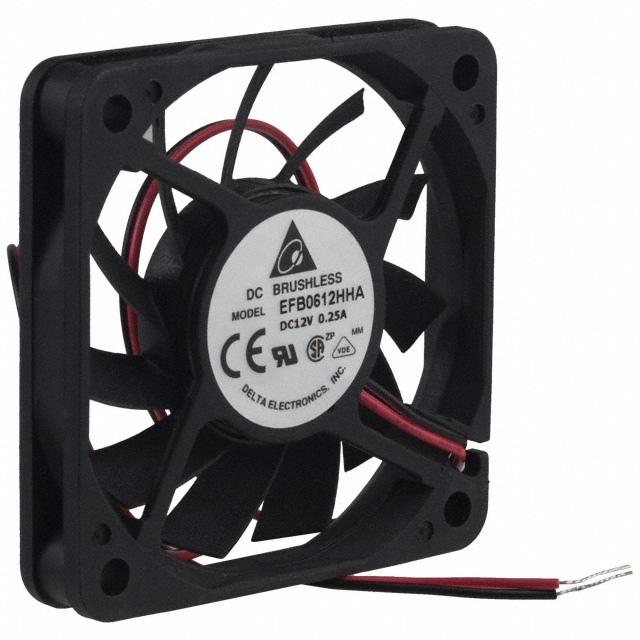

Delta Electronics EFB0612HHA	Plastic	70000 Hrs	13.8 VDC	7 V	0.18 A	Plastic	2.16 W	2 Wire Leads	Ball	4800 RPM	70 °C	-10 °C	10 mm	0.169 in H2O	42.1 Pa	36.5 dB(A)	CE CSA UL VDE	60 mm	60 mm	0.594 m³/min	21.2 CFM	Tubeaxial	12 VDC	0.062 lb	28.12 g
Delta Electronics EFB0612LA	Plastic	70000 Hrs	13.8 VDC	7 V	70 mA	Plastic	840 mW	2 Wire Leads	Ball	3000 RPM	70 °C	-10 °C	10 mm	0.065 in H2O	16.2 Pa	24.5 dB(A)	CE CSA UL VDE	60 mm	60 mm	0.375 mł/min	13.4 CFM	Tubeaxial	12 VDC	0.062 lb	28.12 g
Delta Electronics EFB0612MA	Plastic	70000 Hrs	13.8 VDC	7 V		Plastic	960 mW	2 Wire Leads	Ball	3600 RPM	70 °C	-10 °C	10 mm	0.094 in H2O	23.4 Pa	29 dB(A)	CE CSA UL VDE	60 mm	60 mm	0.434 m³/min	15.5 CFM	Tubeaxial	12 VDC	0.062 lb	28.12 g
Delta Electronics EFB0612HA	Plastic	70000 Hrs	13.8 VDC	7 V	120 mA	Plastic	1.44 W	2 Wire Leads	Ball	4200 RPM	70 °C	-10 °C	10 mm	0.132 in H2O	32.9 Pa	33 dB(A)	CE CSA UL VDE	60 mm	60 mm	0.504 m³/min	18 CFM	Tubeaxial	12 VDC	0.062 lb	28.12 g

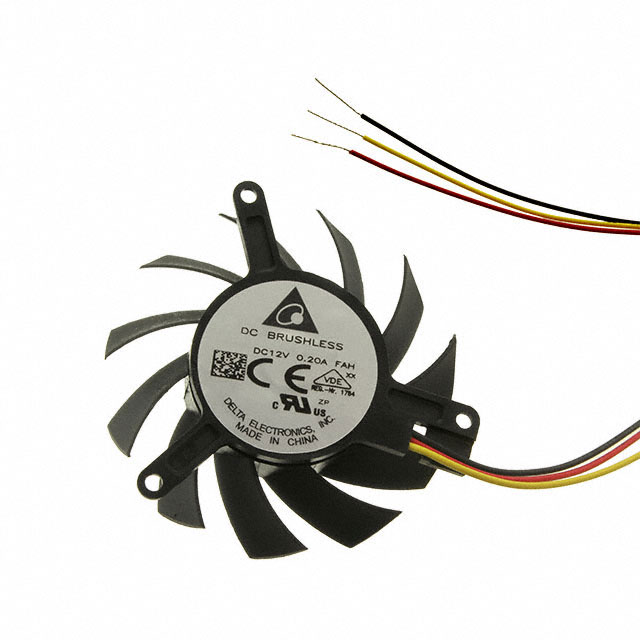

Delta Electronics EFB0612HHAF99	Plastic	40 °C 50000 Hrs	13.2 VDC	5 VDC	0.2 A		2.4 W	3 Wire Leads	Ball	4800 RPM	60 °C	-10 °C		0.129 in H2O	32.1 Pa	39 dB(A)	CE cURus VDE			0.42 m³/min	15 CFM	Frameless Tubeaxial	12 VDC			Locked Rotor Protection Speed Sensor (Tach)	10.7 mm	17.24 g	0.038 lb	56 mm

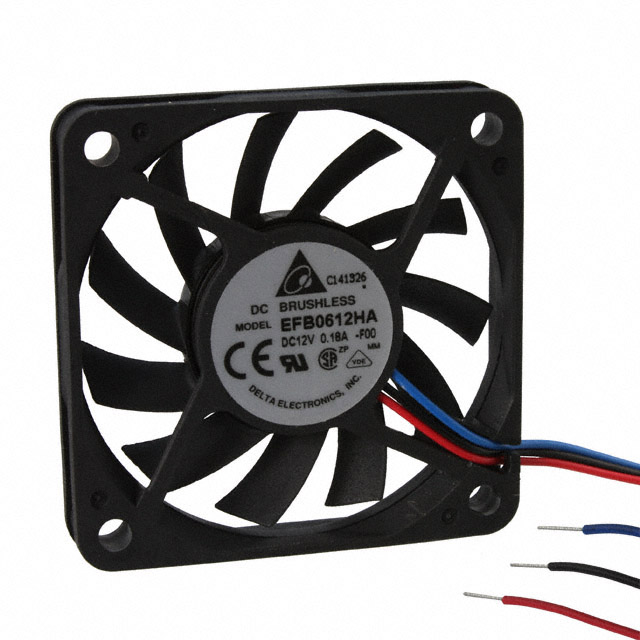

Delta Electronics EFB0612HA-F00	Plastic	70000 Hrs	13.8 VDC	7 V	120 mA	Plastic	1.44 W	3 Wire Leads	Ball	4200 RPM	70 °C	-10 °C	10 mm	0.132 in H2O	32.9 Pa	33 dB(A)	CE CSA UL VDE	60 mm	60 mm	0.504 m³/min	18 CFM	Tubeaxial	12 VDC	0.062 lb	28.12 g	Locked Rotor Protection Speed Sensor (Tach)

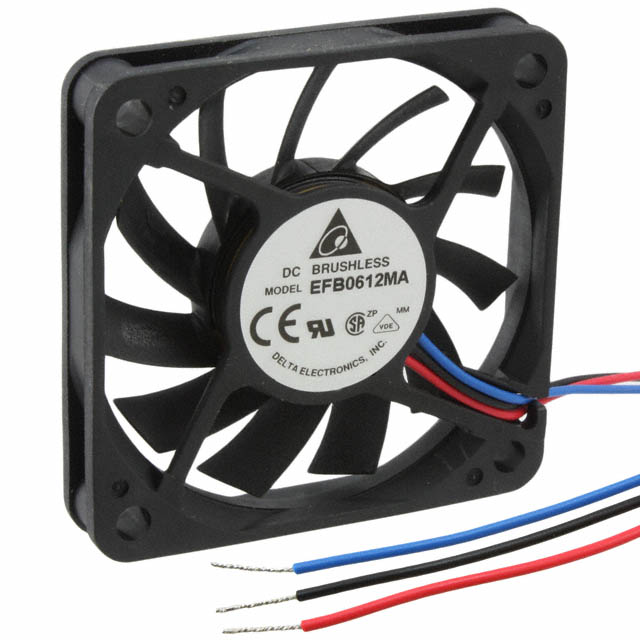

Delta Electronics EFB0612MA-F00	Plastic	70000 Hrs	13.8 VDC	7 V		Plastic	960 mW	3 Wire Leads	Ball	3600 RPM	70 °C	-10 °C	10 mm	0.094 in H2O	23.4 Pa	29 dB(A)	CE CSA UL VDE	60 mm	60 mm	0.434 m³/min	15.5 CFM	Tubeaxial	12 VDC	0.062 lb	28.12 g	Locked Rotor Protection Speed Sensor (Tach)
