LD37P24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

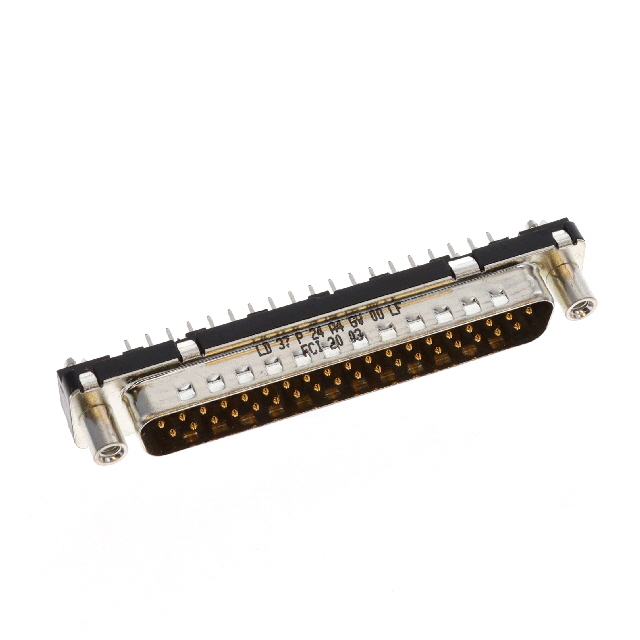

CONN D-SUB PLUG 37POS VERT SLDR
| Part | Color | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Current Rating (Amps) | Flange Feature | Flange Feature | Mounting Type | Contact Type | Number of Positions | Connector Style | Shell Material, Finish | Material Flammability Rating | Number of Rows [custom] | Contact Finish Thickness | Features | Contact Finish | Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | Thermoplastic | Copper Alloy | -55 C | 105 ░C | 250 V | 4 | DC C | 5 A | Housing/Shell | 4-40 | Through Hole | Signal | 37 | D-Sub | Steel Tin-Nickel Plated | UL94 V-0 | 2 | Flash | Board Lock Grounding Indents | Gold | Solder | Plug Male Pins |
 Amphenol ICC (FCI) | Black | Thermoplastic | Copper Alloy | -55 C | 105 ░C | 250 V | 4 | DC C | 5 A | 4-40 Mating Side Female Screwlock | Through Hole | Signal | 37 | D-Sub | Steel Tin-Nickel Plated | UL94 V-0 | 2 | Flash | Board Lock Grounding Indents | Gold | Solder | Plug Male Pins |
