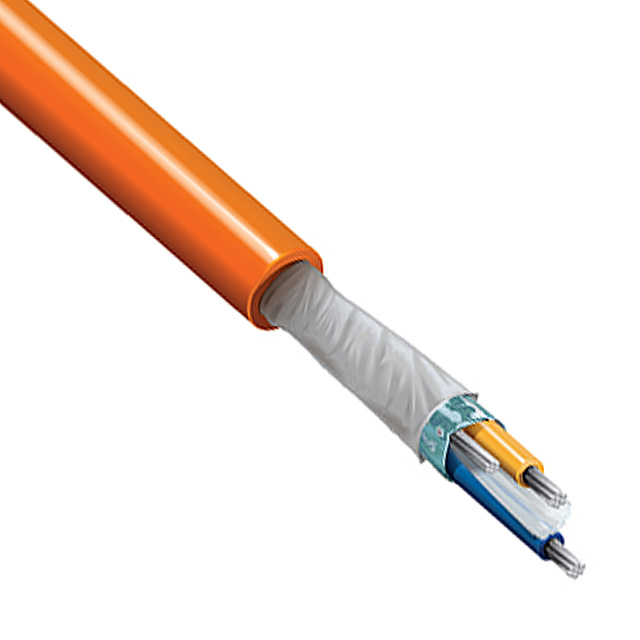

3076F Series

Catalog

CABLE 2COND 18AWG ORG SHLD

Part	Shield Coverage	Shield Material	Voltage	Features	Jacket (Insulation) Material	Shield Type	Wire Gauge	Conductor Material	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Length	Length	Conductor Insulation	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color
Belden Inc. 3076F 0032500	100 %	Aluminum	300 VDC	Direct Burial Drain Wire Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Foil	18 AWG	Copper Tinned	2	26 AWG	7	Multi-Conductor	2500 ft	762 m	Polyolefin	PO	-40 C	105 ░C	0.28 in	7.11 mm	Orange
Belden Inc. 3076F 0061000	100 %	Aluminum	300 VDC	Direct Burial Drain Wire Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Foil	18 AWG	Copper Tinned	2	26 AWG	7	Multi-Conductor	1000 ft	304.8 m	Polyolefin	PO	-40 C	105 ░C	0.28 in	7.11 mm	Blue
Belden Inc. 3076F 003250	100 %	Aluminum		Drain Wire	Poly-Vinyl Chloride (PVC)	Foil	18 AWG	Copper Tinned	2	26 AWG	7	Multi-Conductor	250 ft	76.2 m	Polyolefin	PO	-40 C	105 ░C	0.28 in	7.11 mm	Orange
Belden Inc. 3076F 0031000	100 %	Aluminum	300 VDC	Direct Burial Drain Wire Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Foil	18 AWG	Copper Tinned	2	26 AWG	7	Multi-Conductor	1000 ft	304.8 m	Polyolefin	PO	-40 C	105 ░C	0.28 in	7.11 mm	Orange
Belden Inc. 3076F 00310000	100 %	Aluminum	300 VDC	Direct Burial Drain Wire Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Foil	18 AWG	Copper Tinned	2	26 AWG	7	Multi-Conductor	10000 ft	3048 m	Polyolefin	PO	-40 C	105 ░C	0.28 in	7.11 mm	Orange
Belden Inc. 3076F 003500	100 %	Aluminum	300 VDC	Direct Burial Drain Wire Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Foil	18 AWG	Copper Tinned	2	26 AWG	7	Multi-Conductor	500 ft	152.4 m	Polyolefin	PO	-40 C	105 ░C	0.28 in	7.11 mm	Orange
