AWHW20 Series

Catalog

CONN HEADER R/A 20POS 2.54MM

Part	Current Rating (Amps)	Insulation Height	Insulation Height	Mounting Type	Contact Finish - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Shape	Connector Type	Number of Positions Loaded	Insulation Material	Contact Finish - Post	Material Flammability Rating	Number of Positions	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Type	Contact Length - Post	Contact Length - Post	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Style	Features	Contact Material	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Assmann WSW Components AWHW20A-0202-T-R	3 A	8.94 mm	0.352 in	Right Angle Through Hole	Gold	Push-Pull	-40 C	105 ░C	Flash	Square	Header	All	Polybutylene Terephthalate (PBT) Glass Filled	Tin	UL94 V-0	20	0.1 "	2.54 mm	2	Male Pin	0.124 in	3.15 mm	Solder	0.1 in	2.54 mm	Shrouded - 4 Wall	Board to Cable/Wire	Keying Slot	Brass	Gray	0.224 in	5.7 mm

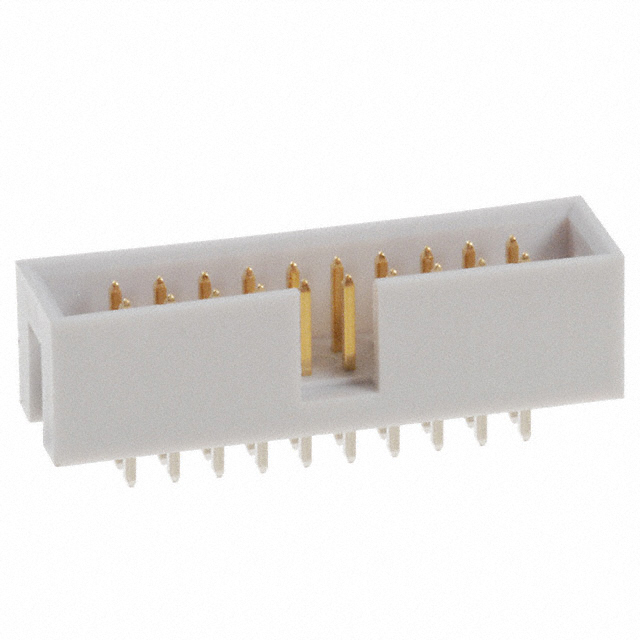

Assmann WSW Components AWHW20G-0102-T-R	3 A	9 mm	0.354 in	Through Hole	Gold	Push-Pull	-40 C	105 ░C		Square	Header	All	Polybutylene Terephthalate (PBT) Glass Filled	Tin	UL94 V-0	20	0.1 "	2.54 mm	2	Male Pin	0.13 "	3.3 mm	Solder	0.1 in	2.54 mm	Shrouded - 4 Wall	Board to Cable/Wire	Keying Slot	Brass	Gray	0.224 in	5.7 mm	0.76 Ám	30 Áin

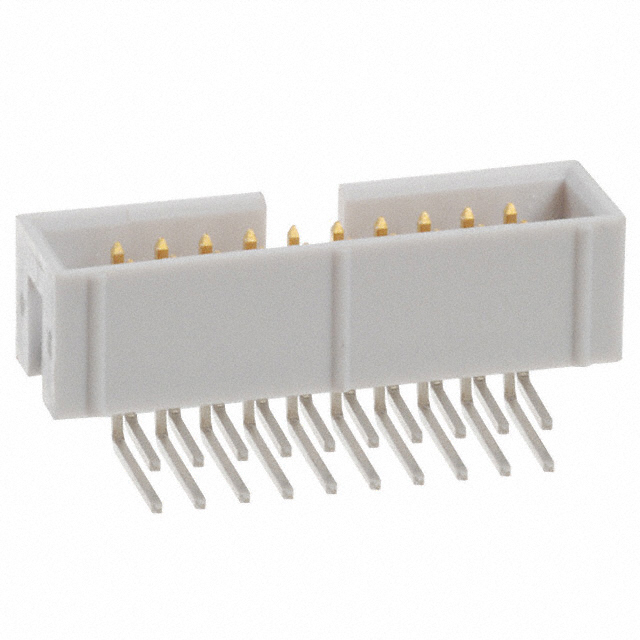

Assmann WSW Components AWHW20A-0102-T-R	3 A	8.94 mm	0.352 in	Right Angle Through Hole	Gold	Push-Pull	-40 C	105 ░C		Square	Header	All	Polybutylene Terephthalate (PBT) Glass Filled	Tin	UL94 V-0	20	0.1 "	2.54 mm	2	Male Pin	0.124 in	3.15 mm	Solder	0.1 in	2.54 mm	Shrouded - 4 Wall	Board to Cable/Wire	Keying Slot	Brass	Gray	0.224 in	5.7 mm	0.76 Ám	30 Áin
