WR9QG1200 Series

Catalog

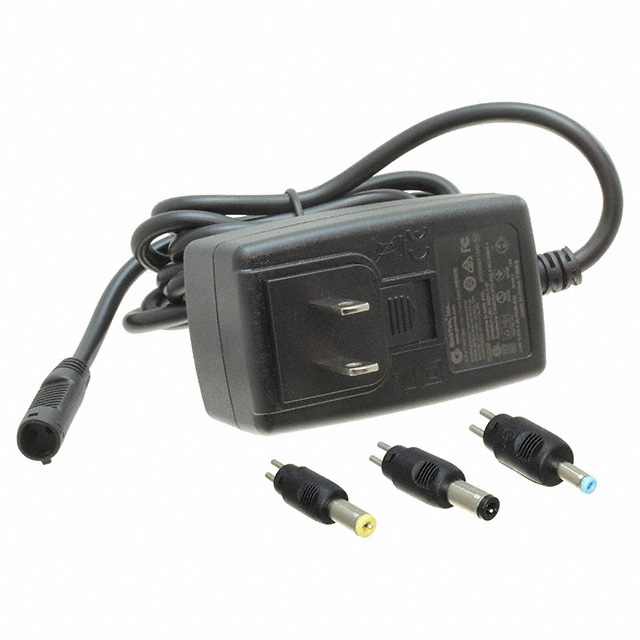

AC/DC WALL MOUNT ADAPTER 15V 18W

Part	Efficiency	Cord Length	Cord Length	No Load Power Consumption	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Region Utilized	Form	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Voltage - Output	Power (Watts)	Current - Output (Max) [Max]	Output Connector	Input Type
GlobTek, Inc. WR9QG1200T00NAIMR6B	Level VI	1.5 m	59 in	75 mW	BIS CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO UL VCCI	74 mm	1.45 in	2.91 in	43.5 mm	1.71 in	36.8 mm	Household Appliances ITE (Commercial) Medical	264 VAC	90 VAC	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	International	Wall Mount	-20 ░C	40 °C	Multi-Blade (Sold Separately)	15 V	18 W	1.2 A	Barrel Plug Kit (1.3mm x 3.5mm	Multi-Blade (Sold Separately)
