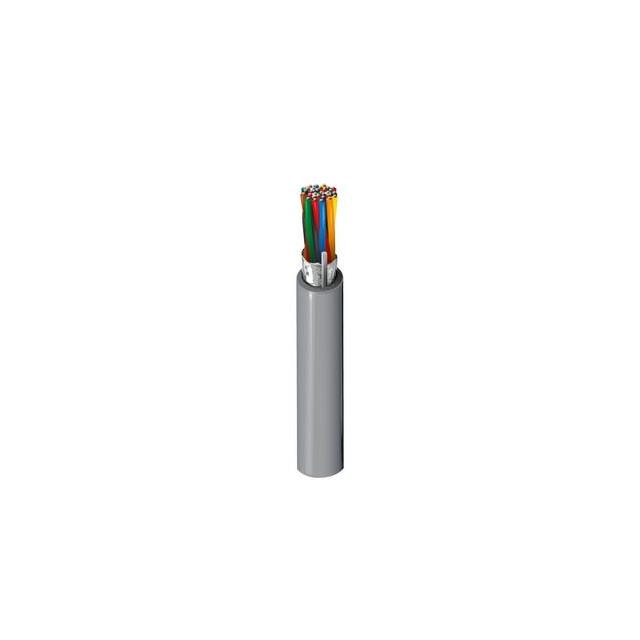

9515 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 30COND 24AWG
| Part | Shield Material | Shield Coverage | Wire Gauge | Voltage | Ratings | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Conductor Material | Number of Conductors | Features | Conductor Insulation | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 24 AWG | 300 VDC | UL Style 2464 | Foil | 10.59 mm | 0.417 in | Computer | 80 °C | -30 ░C | Chrome | Copper Tinned | 30 | Drain Wire | Poly-Vinyl Chloride (PVC) | Multi-Pair | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 0.864 mm | 0.034 in |
