A-2014 Series

Catalog

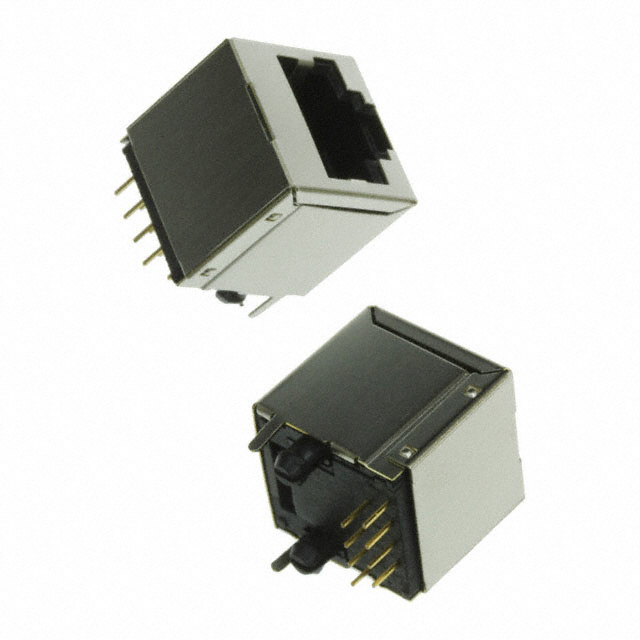

CONN MOD JACK 8P8C VERT SHIELDED

Part	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Features	Mounting Type	Termination	Number of Rows	LED Color	Connector Type	Contact Finish	Orientation	Number of Positions/Contacts	Shielding	Contact Material	Tab Direction	Number of Positions/Contacts [y]	Number of Positions/Contacts [x]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Assmann WSW Components A-2014-2S-1-N	85 °C	-40 C	Polyester	0.38 µm	15 µin	1	Board Lock	Through Hole	Solder	1	Does Not Contain LED	Jack	Gold	Vertical	8p8c (RJ45 Ethernet)	Shielded	Phosphor Bronze	User Selectable
Assmann WSW Components A-2014-2S-2-N	85 °C	-40 C	Polyester	0.76 Ám	30 Áin	1	Board Lock	Through Hole	Solder	1	Does Not Contain LED	Jack	Gold	Vertical	8p8c (RJ45 Ethernet)	Shielded	Phosphor Bronze	User Selectable

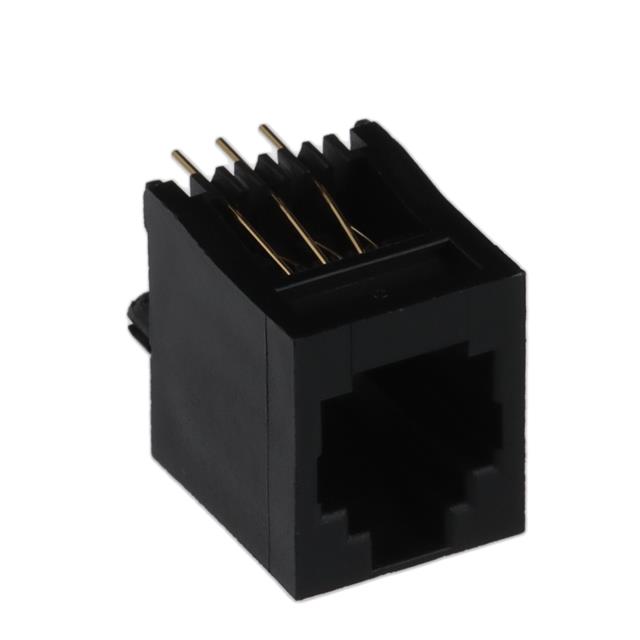

Assmann WSW Components A-2014-1-4-N-T-R	85 °C	-40 C	Polybutylene Terephthalate (PBT) Glass Filled	0.152 Ám	6 Áin	1	Board Lock	Through Hole	Solder	1	Does Not Contain LED	Jack	Gold	Vertical		Unshielded	Phosphor Bronze	User Selectable	6	6
Assmann WSW Components A-2014-2-1-LP/FS	85 °C	-40 C		0.38 µm	15 µin	1	Board Lock Panel Stops	Through Hole	Solder	1	Does Not Contain LED	Jack	Gold	Vertical	8p8c (RJ45 Ethernet)	Shielded	Phosphor Bronze	User Selectable
Assmann WSW Components A-2014-3-1-N-T	85 °C	-40 C	Polyester Glass Filled	0.38 µm	15 µin	1	Board Lock	Through Hole	Solder	1	Does Not Contain LED	Jack	Gold	Vertical		Unshielded	Phosphor Bronze	User Selectable			4 contacts	4 positions
Assmann WSW Components A-2014-1-1-SMT-N	85 °C	-40 C		0.38 µm	15 µin	1	Solder Retention	Surface Mount	Solder	1	Does Not Contain LED	Jack	Gold	Vertical		Unshielded	Phosphor Bronze	User Selectable	6	6
Assmann WSW Components A-2014-2-3-LP/FS	85 °C	-40 C		1.27 µm	50 µin	1	Board Lock Panel Stops	Through Hole	Solder	1	Does Not Contain LED	Jack	Gold	Vertical	8p8c (RJ45 Ethernet)	Shielded	Phosphor Bronze	User Selectable
Assmann WSW Components A-2014-1-2-SMT-N	85 °C	-40 C		0.76 Ám	30 Áin	1	Solder Retention	Surface Mount	Solder	1	Does Not Contain LED	Jack	Gold	Vertical		Unshielded	Phosphor Bronze	User Selectable	6	6
Assmann WSW Components A-2014-3-1	85 °C	-40 C	Polyester	0.38 µm	15 µin	1	Board Lock Panel Stops	Through Hole	Solder	1	Does Not Contain LED	Jack	Gold	Vertical		Unshielded	Phosphor Bronze	User Selectable			4 contacts	4 positions
Assmann WSW Components A-2014-1-2-N-T	85 °C	-40 C	Polyester Glass Filled	0.76 Ám	30 Áin	1	Board Lock	Through Hole	Solder	1	Does Not Contain LED	Jack	Gold	Vertical		Unshielded	Phosphor Bronze	User Selectable	6	6
