726-033 Series
Manufacturer: EDAC Inc.
Beta
⌘K

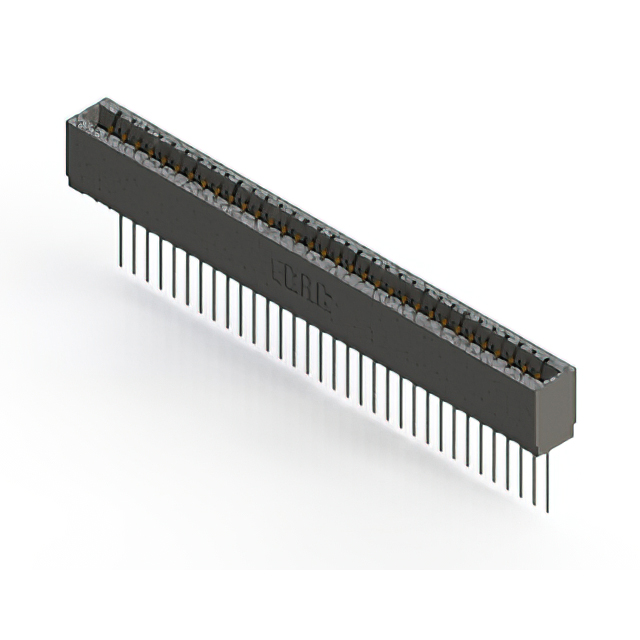

CONN EDGE SGL FMALE 33POS 0.125
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row | Contact Finish | Gender | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions [custom] | Card Type | Card Thickness [Max] | Card Thickness [Min] | Color | Termination | Contact Material | Number of Rows | Read Out | Pitch | Pitch | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 33 | Gold | Female | Through Hole | 30 Áin | 0.76 Ám | 33 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Press-Fit Wire Wrap | Copper Alloy | 1 | Single | 3.18 mm | 0.125 in | Cantilever | -40 C | 105 ░C |
 EDAC Inc. | 1 | Polyester Thermoplastic | 33 | Gold | Female | Through Hole | 30 Áin | 0.76 Ám | 33 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Press-Fit | Copper Alloy | 1 | Single | 3.18 mm | 0.125 in | Cantilever | -40 C | 105 ░C |
