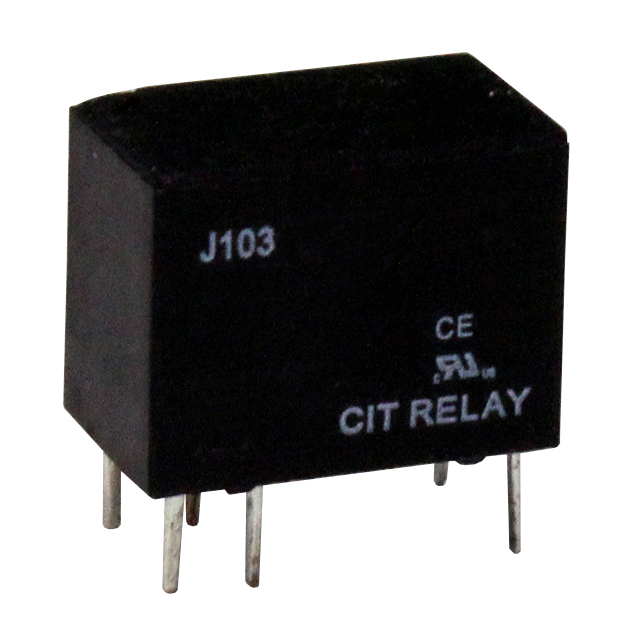

J1031C Series

Catalog

RELAY GEN PURPOSE SPDT 2A 12V

Part	Coil Resistance	Coil Type	Must Operate Voltage	Termination Style	Contact Material	Seal Rating	Release Time	Switching Voltage [Max]	Mounting Type	Coil Current	Contact Form	Relay Type	Load - Max Switching	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Must Release Voltage	Contact Rating (Current)
CIT Relay and Switch J1031C12VDC.20S	720 Ohms	Non Latching	9 VDC	PC Pin	Gold (Au) Silver (Ag)	Sealed - Fully	1.5 ms	60 VDC 125 VAC	Through Hole	16.7 mA	SPDT (1 Form C)	General Purpose	120 W 250 VA	4.5 ms	85 °C	-40 C	12 VDC	1.2 VDC	2 A
CIT Relay and Switch J1031C24VDC.15S	3.84 kOhms	Non Latching	18 VDC	PC Pin	Gold (Au) Silver (Ag)	Sealed - Fully	1.5 ms	60 VDC 125 VAC	Through Hole	6.3 mA	SPDT (1 Form C)	General Purpose	120 W 250 VA	4.5 ms	85 °C	-40 C	24 VDC	2.4 VDC	2 A

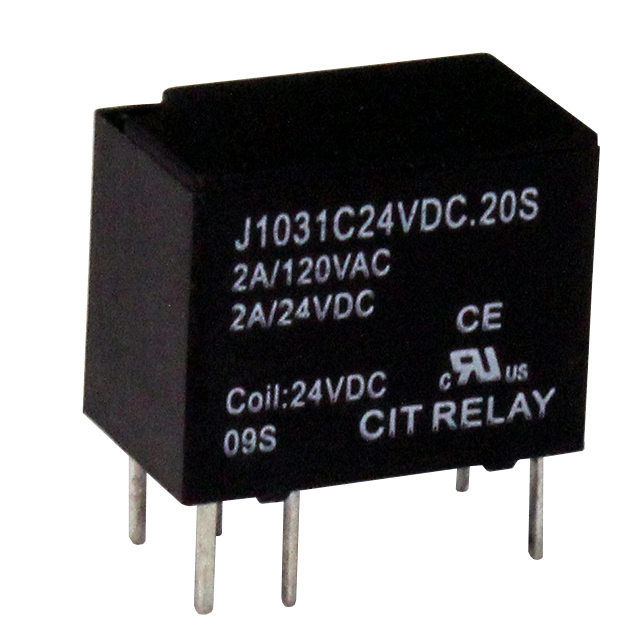

CIT Relay and Switch J1031C24VDC.20S	2.88 kOhms	Non Latching	18 VDC	PC Pin	Gold (Au) Silver (Ag)	Sealed - Fully	1.5 ms	60 VDC 125 VAC	Through Hole	8.3 mA	SPDT (1 Form C)	General Purpose	120 W 250 VA	4.5 ms	85 °C	-40 C	24 VDC	2.4 VDC	2 A
CIT Relay and Switch J1031C9VDC.15S		Non Latching	6.75 VDC	PC Pin	Gold (Au) Silver (Ag)	Sealed - Fully	1.5 ms	60 VDC 125 VAC	Through Hole	16.7 mA	SPDT (1 Form C)	General Purpose	120 W 250 VA	4.5 ms	85 °C	-40 C	9 VDC	0.9 VDC	2 A
CIT Relay and Switch J1031C6VDC.20S	180 Ohms	Non Latching	4.5 VDC	PC Pin	Gold (Au) Silver (Ag)	Sealed - Fully	1.5 ms	60 VDC 125 VAC	Through Hole	33.3 mA	SPDT (1 Form C)	General Purpose	120 W 250 VA	4.5 ms	85 °C	-40 C		0.6 VDC	2 A
CIT Relay and Switch J1031C12VDC.15S	960 Ohms	Non Latching	9 VDC	PC Pin	Gold (Au) Silver (Ag)	Sealed - Fully	1.5 ms	60 VDC 125 VAC	Through Hole		SPDT (1 Form C)	General Purpose	120 W 250 VA	4.5 ms	85 °C	-40 C	12 VDC	1.2 VDC	2 A
CIT Relay and Switch J1031C3VDC.15S	60 Ohms	Non Latching	2.25 VDC	PC Pin	Gold (Au) Silver (Ag)	Sealed - Fully	1.5 ms	60 VDC 125 VAC	Through Hole	50 mA	SPDT (1 Form C)	General Purpose	120 W 250 VA	4.5 ms	85 °C	-40 C		0.3 VDC	2 A
CIT Relay and Switch J1031C6VDC.15S	240 Ohms	Non Latching	4.5 VDC	PC Pin	Gold (Au) Silver (Ag)	Sealed - Fully	1.5 ms	60 VDC 125 VAC	Through Hole	25 mA	SPDT (1 Form C)	General Purpose	120 W 250 VA	4.5 ms	85 °C	-40 C		0.6 VDC	2 A
CIT Relay and Switch J1031C9VDC.20S	405 Ohms	Non Latching	6.75 VDC	PC Pin	Gold (Au) Silver (Ag)	Sealed - Fully	1.5 ms	60 VDC 125 VAC	Through Hole	22.2 mA	SPDT (1 Form C)	General Purpose	120 W 250 VA	4.5 ms	85 °C	-40 C	9 VDC	0.9 VDC	2 A
CIT Relay and Switch J1031C5VDC.15S	167 Ohms	Non Latching	3.75 VDC	PC Pin	Gold (Au) Silver (Ag)	Sealed - Fully	1.5 ms	60 VDC 125 VAC	Through Hole	29.9 mA	SPDT (1 Form C)	General Purpose	120 W 250 VA	4.5 ms	85 °C	-40 C	5 VDC	0.5 VDC	2 A
