3010-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

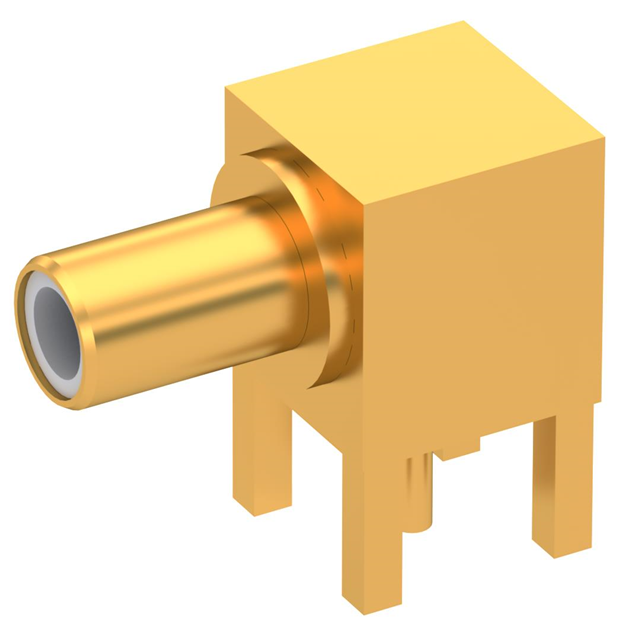

SLB / RIGHT ANGLE JACK RECEPTACL
| Part | Mating Cycles | Insertion Loss | Dielectric Material | Body Material | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Ports | Shield Termination | Contact Termination | Mounting Type | Housing Color | Frequency - Max [Max] | Connector Style | Center Contact Material | Impedance | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | 0.6 dB | Polytetrafluoroethylene (PTFE) | Brass | Gold | Gold | -65 ░C | 165 °C | Snap-On | 1 | Solder | Solder | Right Angle Through Hole | Gold | 4 GHz | SLB | Brass | 50 Ohms | Jack Male Pin |
