YMC31 Series

Catalog

CONN HEADER VERT 31POS 2.54MM

Part	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Termination	Mounting Type	Contact Shape	Insulation Material	Insulation Color	Number of Positions Loaded	Material Flammability Rating	Number of Positions [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Rows	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length [x]	Overall Contact Length [x]	Shrouding	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Number of Positions

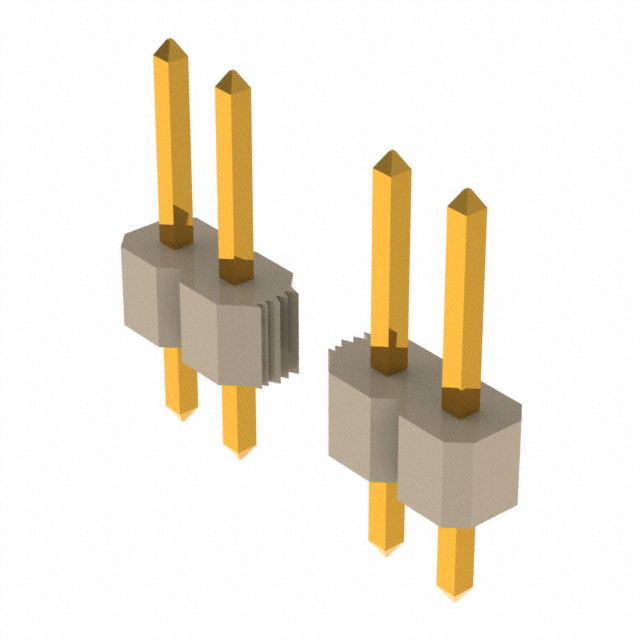

Sullins Connector Solutions YMC31SAAN	0.23 in	5.84 mm	0.1 in	2.54 mm	Gold	Male Pin	3 A	0.1 "	2.54 mm	Solder	Through Hole	Square	Polyetheretherketone (PEEK)	Tan	All	UL94 V-0	31	-65 ░C	250 °C	3.05 mm	0.12 in	Gold	1	Header Breakaway	0.76 Ám	30 Áin	Beryllium Copper	Push-Pull	10 Áin	0.25 çm	11.43 mm	0.45 in	Unshrouded	Board to Board Cable

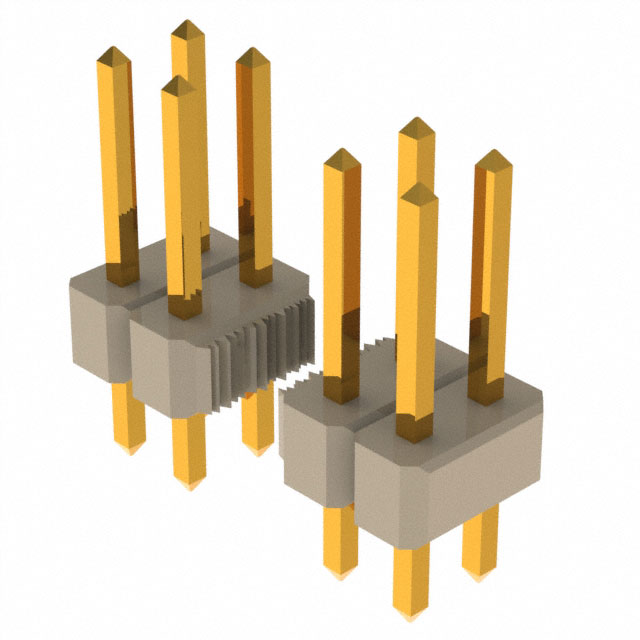

Sullins Connector Solutions YMC31DAAN	0.23 in	5.84 mm	0.1 in	2.54 mm	Gold	Male Pin	3 A	0.1 "	2.54 mm	Solder	Through Hole	Square	Polyetheretherketone (PEEK)	Tan	All	UL94 V-0		-65 ░C	250 °C	3.05 mm	0.12 in	Gold		Header Breakaway	0.76 Ám	30 Áin	Beryllium Copper	Push-Pull	10 Áin	0.25 çm	11.43 mm	0.45 in	Unshrouded	Board to Board Cable	0.1 in	2.54 mm	2	62
