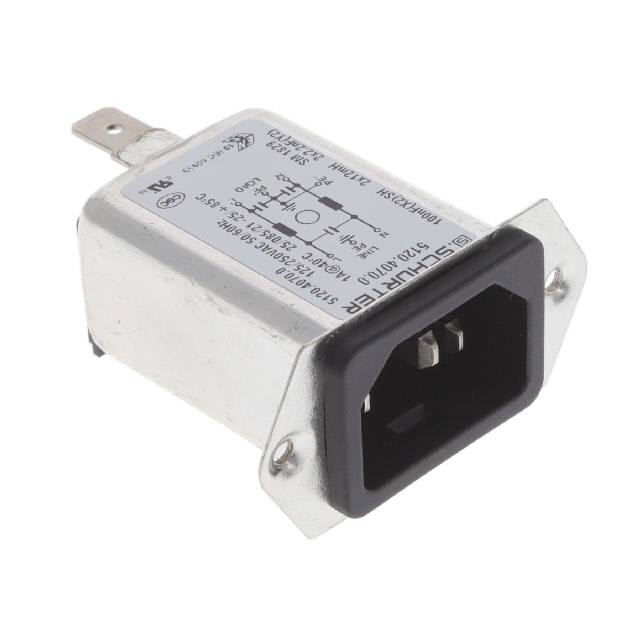

5120.4070 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PWR ENT RCPT IEC320-C14 PNL SLDR
| Part | Approval Agency | Connector Type | Current Rating - Filter | Mounting Type | Filter Type | Accomodates a Fuse | Voltage Rating - Appliance Inlet | Material Flammability Rating | Current Rating - Appliance Inlet | Ingress Protection | Features | Panel Thickness | Panel Thickness | Connector Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | CCC cULus ENEC | Receptacle Male Blades | 1 A | Panel Mount Flange Through Hole Right Angle | Filtered (EMI RFI) - Commercial | 250 VAC | UL94 V-0 | 1 A | IP40 | Shielded | 8 mm | 0.315 in | IEC 320-C14 | 30.5 mm | 22.5 mm | Solder |
