FUSE 125V V/FA NANO2 W/SnPb CAPS 1.6A
Description
AI

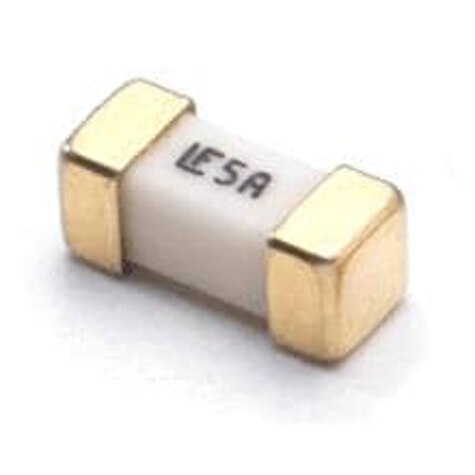

The Nano2 SMF Fuse is a very small, square surface mount fuse that is also available in a surface mount holder.
Beta
⌘K
FUSE 125V V/FA NANO2 W/SnPb CAPS 1.6A
FUSE 125V V/FA NANO2 W/SnPb CAPS 1.6A
| Part | DC Cold Resistance | Mounting Type | Current Rating (Amps) | Fuse Type | Approval Agency | Melting I²t | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Response Time | Voltage Rating - AC | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Breaking Capacity @ Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.058 Ohms | Surface Mount | 1.6 A | Board Mount (Cartridge Style Excluded) | CSA PSE UL | 1.06 | 125 VDC | -55 C | 125 °C | Fast Blow | 125 V | 2-SMD Square End Block | 0.106 in | 2.69 mm | 0.24 " | 6.1 mm | 0.106 in | 2.69 mm | 50 A |
LITTELFUSE | 0.058 Ohms | Surface Mount | 1.6 A | Board Mount (Cartridge Style Excluded) | CSA PSE UL | 1.06 | 125 VDC | -55 C | 125 °C | Fast Blow | 125 V | 2-SMD Square End Block | 0.106 in | 2.69 mm | 0.24 " | 6.1 mm | 0.106 in | 2.69 mm | 50 A |
LITTELFUSE | Surface Mount | 1.6 A | Board Mount (Cartridge Style Excluded) | CSA PSE UL | 1.06 | 125 VDC | -55 C | 125 °C | Fast Blow | 125 V | 2-SMD Square End Block | 0.106 in | 2.69 mm | 0.24 " | 6.1 mm | 0.106 in | 2.69 mm | 50 A |
