B72214U Series

Catalog

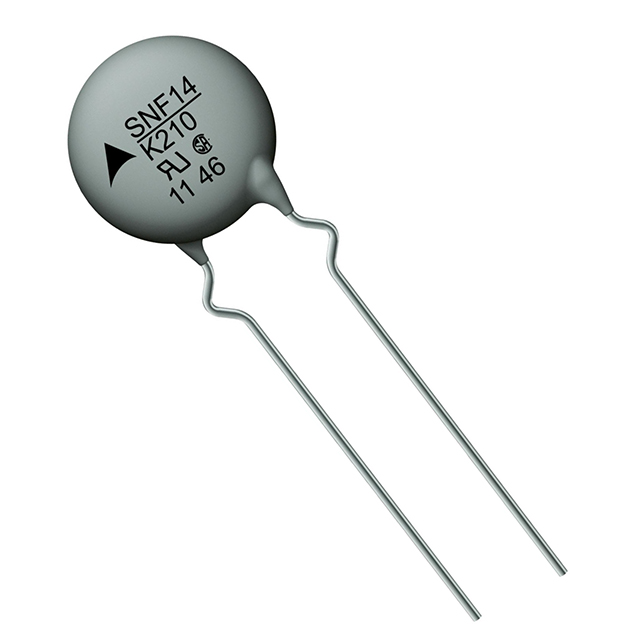

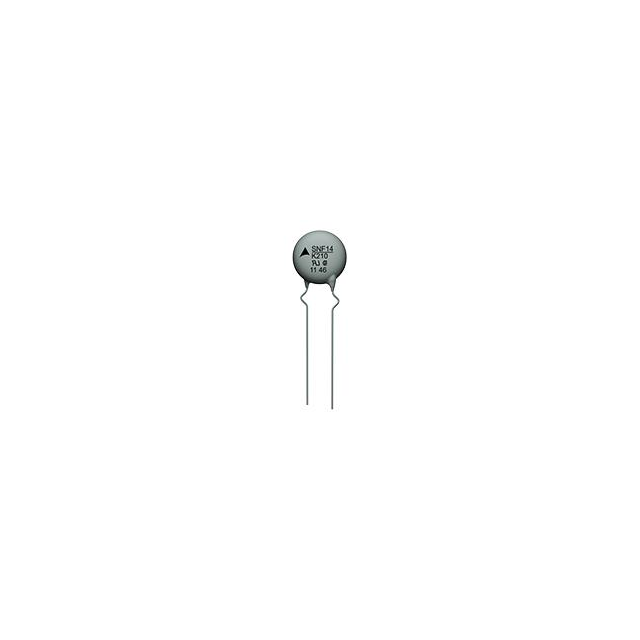

VARISTOR 430V 6KA DISC 14MM

Part	Varistor Voltage (Max)	Current - Surge	Number of Circuits	Varistor Voltage (Min) [Min]	Energy	Package / Case	Capacitance @ Frequency	Varistor Voltage (Typ)	Maximum DC Volts [Max]	Maximum AC Volts [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Max) [Max]
EPCOS - TDK Electronics B72214U2271K501	473 V	6000 A	1	387 V	110 J	Disc 14mm	1 kHz 440 pF	430 V	350 V	275 V	Through Hole	125 °C	-40 °C
EPCOS - TDK Electronics B72214U2421K502						Disc 14mm				420 V	Through Hole
EPCOS - TDK Electronics B72214U2321K502						Disc 14mm				320 V	Through Hole
EPCOS - TDK Electronics B72214U2151K501		6000 A	1	216 V	60 J	Disc 14mm	1 kHz 750 pF	240 V	200 V	150 V	Through Hole	125 °C	-40 °C	264 V
