MB-09-201 Series

Catalog

BUZZER PIEZO 35.81MM PNL MNT

Part	Mounting Type	Approval Agency	Current - Supply [Min] [x]	Current - Supply [Max] [x]	Driver Circuitry	Port Location	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Mode	Frequency	Sound Pressure Level (SPL)	Technology	Termination	Termination	Termination	Ingress Protection	Voltage Range [Max]	Voltage Range [Min]	Input Type	Size / Dimension [diameter]

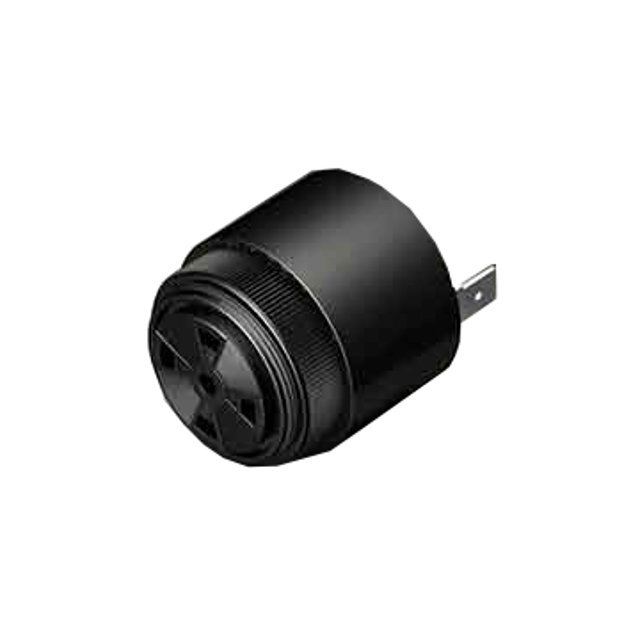

Floyd Bell Inc MB-09-201-Q(S)	Panel Mount	UL UR	5 mA	20 mA	Indicator Internally Driven	Top	1.41 in	35.81 mm	1.38 in	35.05 mm	Pulse Slow	2.9 kHz	95 dB	Piezo	Quick Connect Tab	0.25 "	6.35 mm	IP68 - Dust Tight Waterproof	120 V	30 VDC	AC

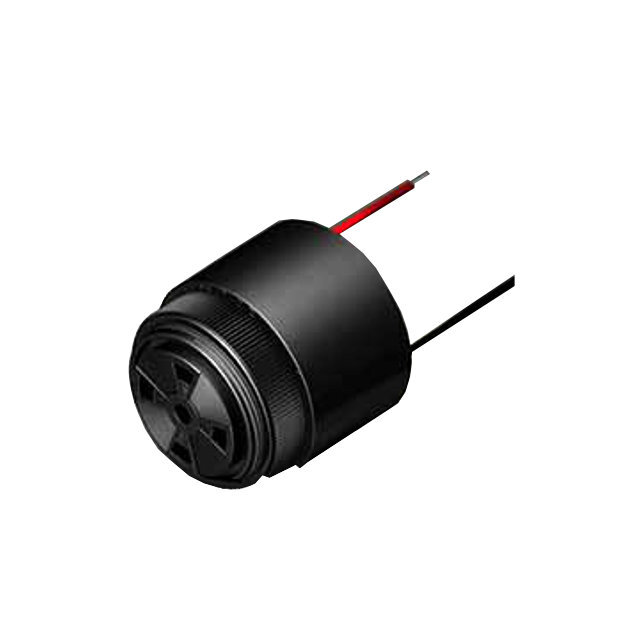

Floyd Bell Inc MB-09-201-W(S)	Panel Mount	UL UR	5 mA	20 mA	Indicator Internally Driven	Top	1.41 in	35.81 mm	1.38 in	35.05 mm	Pulse Slow	2.9 kHz	95 dB	Piezo	Wire Leads			IP68 - Dust Tight Waterproof	120 V	30 VDC	AC
Floyd Bell Inc MB-09-201-Q(M)	Panel Mount	UL UR	5 mA	20 mA	Indicator Internally Driven	Top	1.41 in	35.81 mm	1.38 in	35.05 mm	Medium Pulse	2.9 kHz	95 dB	Piezo	Quick Connect Tab	0.25 "	6.35 mm	IP68 - Dust Tight Waterproof	120 V	30 VDC	AC
Floyd Bell Inc MB-09-201-W(F)	Panel Mount	UL UR	5 mA	20 mA	Indicator Internally Driven	Top	1.41 in	35.81 mm	1.38 in	35.05 mm	Fast Pulse	2.9 kHz	95 dB	Piezo	Wire Leads			IP68 - Dust Tight Waterproof	120 V	30 VDC	AC

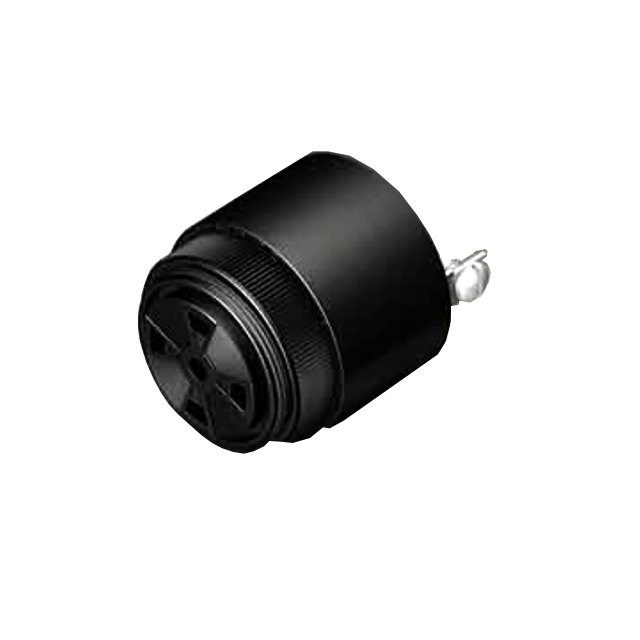

Floyd Bell Inc MB-09-201-S(U)	Panel Mount	UL UR	5 mA	20 mA	Indicator Internally Driven	Top	1.41 in	35.81 mm	1.38 in	35.05 mm	Fast Pulse	2.9 kHz	95 dB	Piezo	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	IP68 - Dust Tight Waterproof	120 V	30 VDC	AC
Floyd Bell Inc MB-09-201-S(S)	Panel Mount	UL UR	5 mA	20 mA	Indicator Internally Driven	Top	1.41 in	35.81 mm	1.38 in	35.05 mm	Pulse Slow	2.9 kHz	95 dB	Piezo	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	IP68 - Dust Tight Waterproof	120 V	30 VDC	AC
Floyd Bell Inc MB-09-201-W(M)	Panel Mount	UL UR	5 mA	20 mA	Indicator Internally Driven	Top		1.409 in	1.38 in	35.05 mm	Medium Pulse	2.9 kHz	95 dB	Piezo	Wire Leads			IP68 - Dust Tight Waterproof	120 V	30 VDC	AC	35.8 mm
Floyd Bell Inc MB-09-201-S(F)	Panel Mount	UL UR	5 mA	20 mA	Indicator Internally Driven	Top		1.409 in	1.38 in	35.05 mm	Fast Pulse	2.9 kHz	95 dB	Piezo	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	IP68 - Dust Tight Waterproof	120 V	30 VDC	AC	35.8 mm
Floyd Bell Inc MB-09-201-W(U)	Panel Mount	UL UR	5 mA	20 mA	Indicator Internally Driven	Top	1.41 in	35.81 mm	1.38 in	35.05 mm	Fast Pulse	2.9 kHz	95 dB	Piezo	Wire Leads			IP68 - Dust Tight Waterproof	120 V	30 VDC	AC
Floyd Bell Inc MB-09-201-Q(F)	Panel Mount	UL UR	5 mA	20 mA	Indicator Internally Driven	Top	1.41 in	35.81 mm	1.38 in	35.05 mm	Fast Pulse	2.9 kHz	95 dB	Piezo	Quick Connect Tab	0.25 "	6.35 mm	IP68 - Dust Tight Waterproof	120 V	30 VDC	AC
