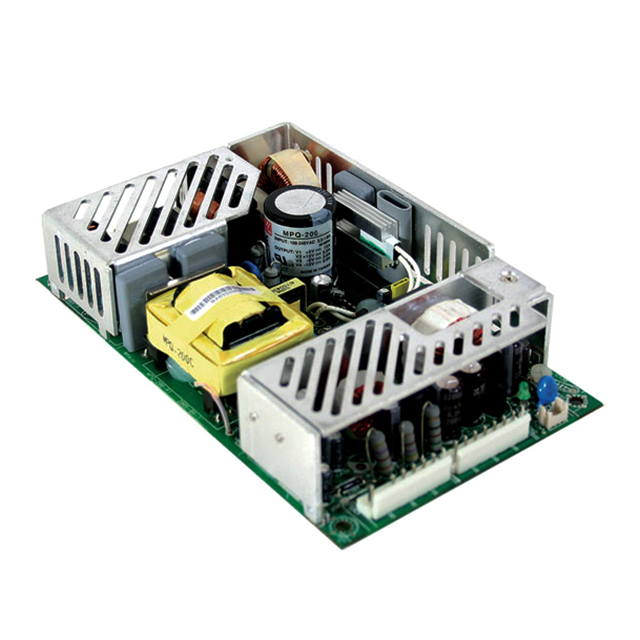

MPQ-200 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CNVRTR 5V 24V +/-12V 139W
| Part | Minimum Load Required | Voltage - Output 1 | Power (Watts) | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Current - Output 1 | Voltage - Output 4 | Voltage - Isolation | Current - Output 2 | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Outputs | Features | Efficiency | Approval Agency | Current - Output 4 | Voltage - Output 3 | Applications | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 5 V | 171 W | 139 W | 264 VAC 370 VDC | 90 VAC 127 VDC | Open Frame | 4.22 in | 177.8 mm | 35.6 mm | 7 " | 1.4 " | 107.2 mm | 12 A | -12 V | 4000 V | 2.3 A | 70 °C | -20 °C | Chassis Mount | 4 | Adjustable Output Remote On/Off Remote Sense Universal Input | 79 % | CB CE cURus TUV | 1 A | 12 V | Medical | 24 V |
