TPS79915 Series

Catalog

LDO REGULATOR POS 1.5V 0.2A 5-PIN TSOT-23 T/R

Part	Current - Quiescent (Iq)	Package / Case	Voltage Dropout (Max) [Max]	Control Features	PSRR [Min]	PSRR [Max]	Voltage - Output (Min/Fixed)	Output Configuration	Supplier Device Package	Protection Features	Voltage - Input (Max) [Max]	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Mounting Type	Output Type	Qualification	Grade
Texas Instruments TPS79915DDCT	60 µA	SOT-23-5 Thin TSOT-23-5	0.18 V	Enable	38 dB	70 dB	1.5 V	Positive	SOT-23-THIN	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	6.5 V	200 mA	125 °C	-40 °C	1	Surface Mount	1.81 mOhm
Texas Instruments TPS79915QDDCRQ1	60 µA	SOT-23-5 Thin TSOT-23-5	0.18 V	Enable	38 dB	70 dB	1.5 V	Positive	SOT-23-THIN	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	6.5 V	200 mA	125 °C	-40 °C	1	Surface Mount	1.81 mOhm	AEC-Q100	Automotive
Texas Instruments TPS79915QDRVRQ1	60 µA		0.18 V	Enable	38 dB	70 dB	1.5 V	Positive	6-WSON (2x2)	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	6.5 V	200 mA	125 °C	-40 °C	1	Surface Mount	1.81 mOhm	AEC-Q100	Automotive
Texas Instruments TPS79915DDCR	60 µA	SOT-23-5 Thin TSOT-23-5	0.18 V	Enable	38 dB	70 dB	1.5 V	Positive	SOT-23-THIN	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	6.5 V	200 mA	125 °C	-40 °C	1	Surface Mount	1.81 mOhm

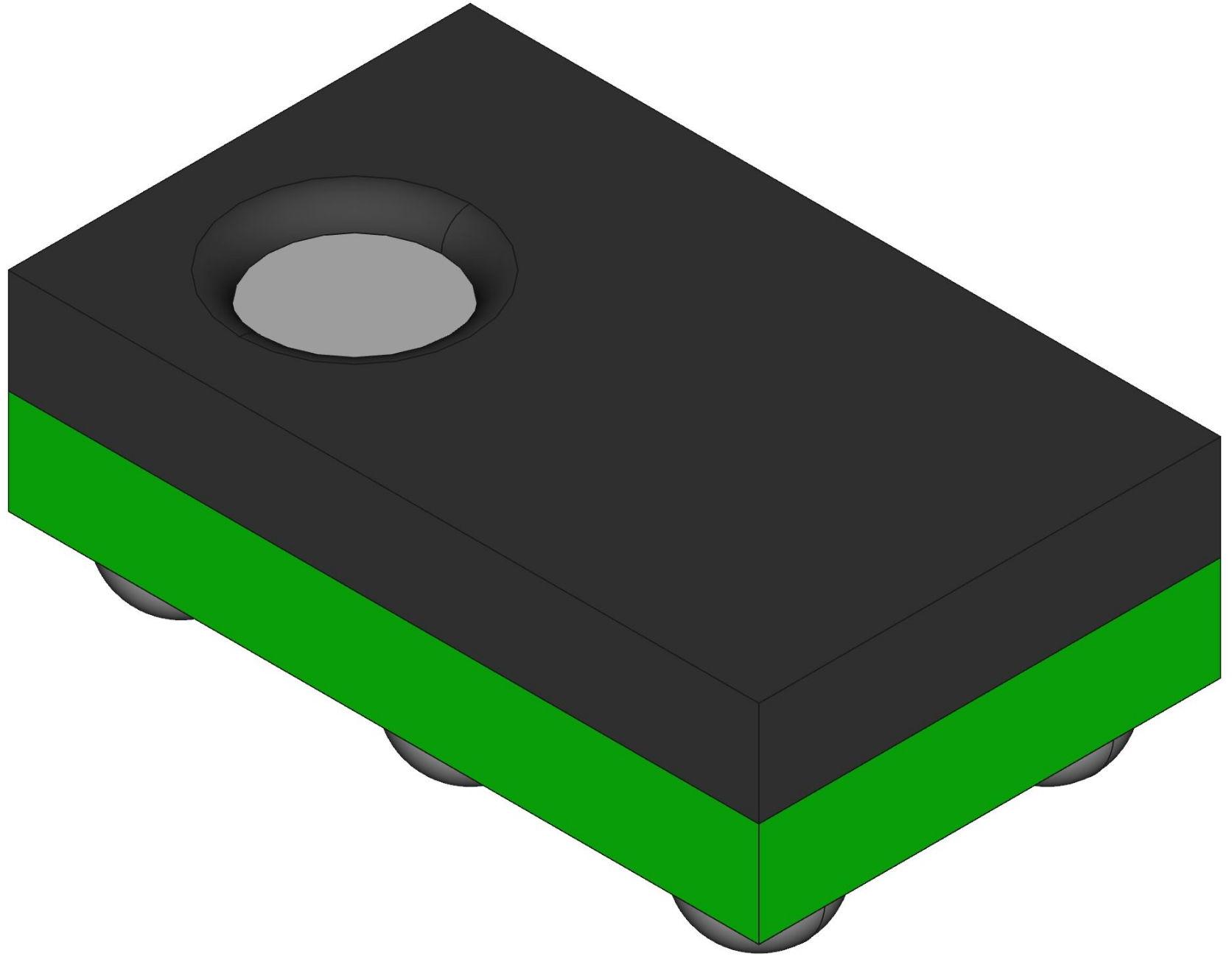

Texas Instruments TPS79915YZUR	60 µA	5-UFBGA DSBGA	0.18 V	Enable	38 dB	70 dB	1.5 V	Positive	5-DSBGA	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	6.5 V	200 mA	125 °C	-40 °C	1	Surface Mount	1.81 mOhm
Texas Instruments TPS79915YZUT	60 µA	5-UFBGA DSBGA	0.18 V	Enable	38 dB	70 dB	1.5 V	Positive	5-DSBGA	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	6.5 V	200 mA	125 °C	-40 °C	1	Surface Mount	1.81 mOhm
