QBE4120 Series

Manufacturer: NetPower

Catalog

DC DC CONVERTER 12V 804W

Part	Package / Case	Applications	Control Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Supplier Device Package	Type	Voltage - Isolation	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)	Voltage - Output 1	Voltage - Input (Min) [Min]	Efficiency	Number of Outputs	Approval Agency	Current - Output (Max)

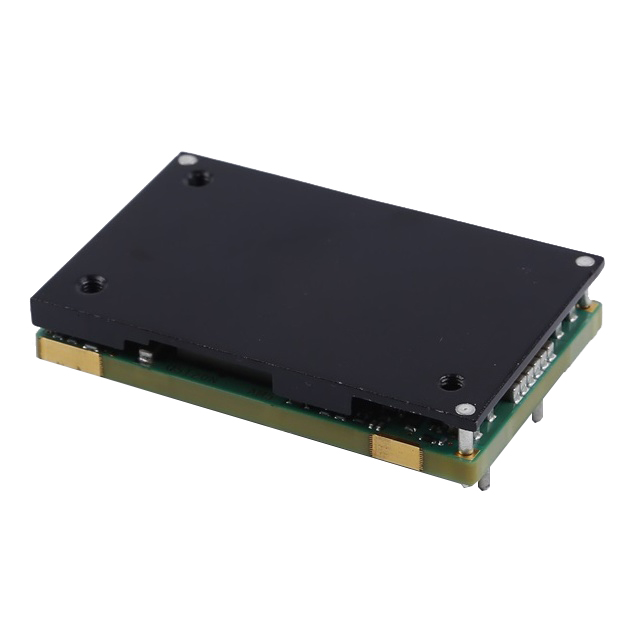

NetPower QBE4120N067N76	Quarter Brick	ITE (Commercial)	Active Low Enable	37.1 mm	2.29 in	0.5 in	1.46 in	58.2 mm	12.7 mm	Quarter Brick	Isolated Module	2250 VDC	60 V	67 A	Through Hole	85 °C	-40 C	Baseplate Remote On/Off	804 W	12 V	40 V	95.5 %	1	CE cURus

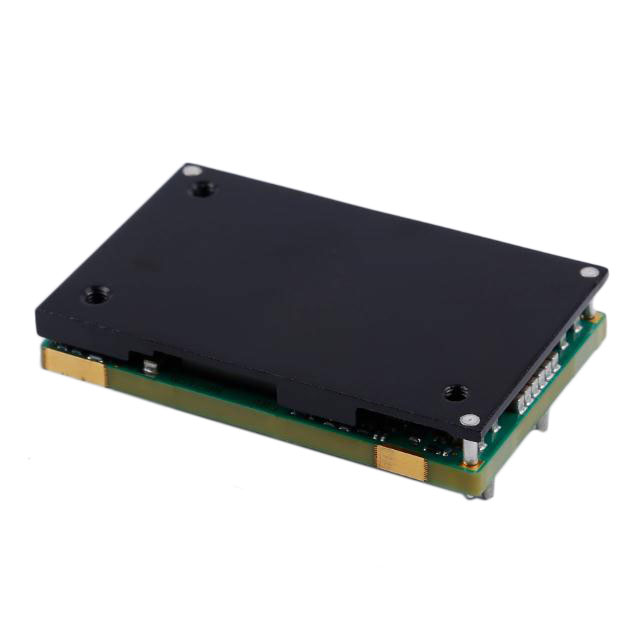

NetPower QBE4120N042R96	Quarter Brick	ITE (Commercial)	Active Low Enable	37.1 mm	2.29 in	0.5 in	1.46 in	58.2 mm	12.7 mm	Quarter Brick	Isolated Module	2250 VDC	75 V		Through Hole	85 °C	-40 °C	Adjustable Output Baseplate Heat Sink Remote On/Off Remote Sense	504 W	12 V	36 V	95.5 %	1	CE cURus	42 A
