M83513/02 Series

Manufacturer: Cinch Connectivity Solutions

Catalog

37 POS RCPT SOLDER CUP CD PLTD

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Mounting Type	Contact Finish	Connector Style	Number of Rows [custom]	Contact Type	Material Flammability Rating	Number of Positions	Current Rating (Amps)	Connector Type	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions [custom]

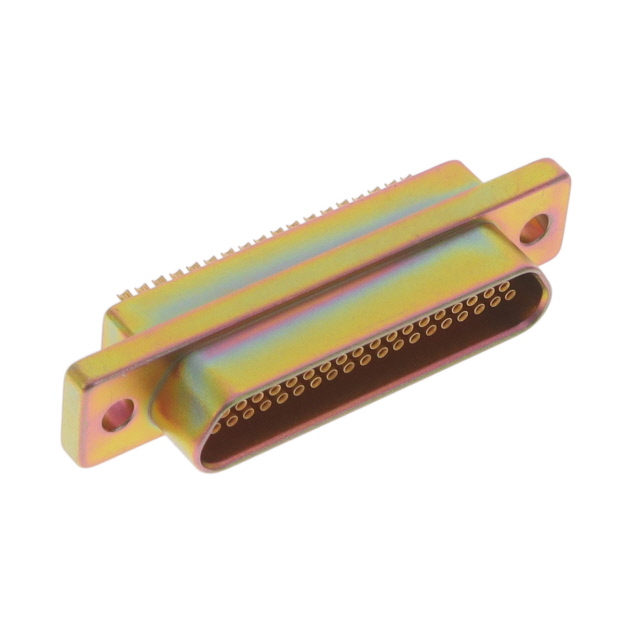

Cinch Connectivity Solutions M83513/02-FC	Copper Alloy	-55 C	125 °C	Polyester Glass Filled	Panel Mount	Gold	D-Type Micro-D	2	Signal	UL94 V-0	37	3 A	Receptacle Female Sockets	0.043 in	0.05 in	50 µin	1.27 µm	Aluminum Alloy Yellow Chromate Plated Cadmium	Housing/Shell (Unthreaded)

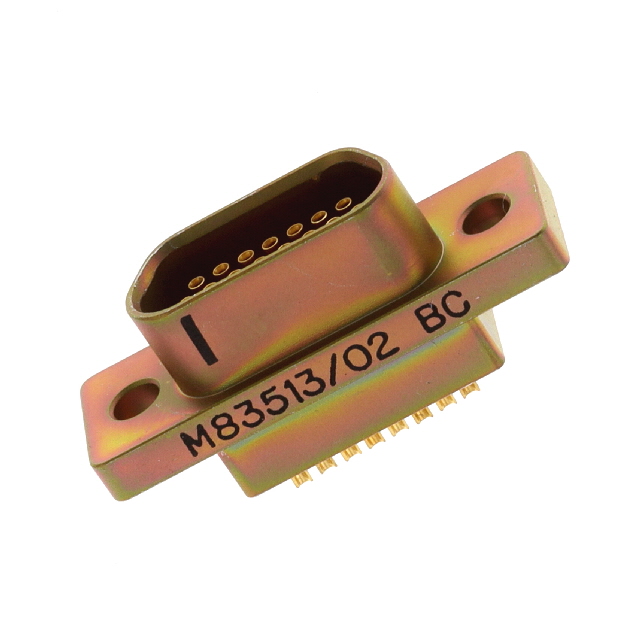

Cinch Connectivity Solutions M83513/02-BC	Copper Alloy	-55 C	125 °C	Polyester Glass Filled	Panel Mount	Gold	D-Type Micro-D	2	Signal	UL94 V-0	15	3 A	Receptacle Female Sockets	0.043 in	0.05 in	50 µin	1.27 µm	Aluminum Alloy Yellow Chromate Plated Cadmium	Housing/Shell (Unthreaded)

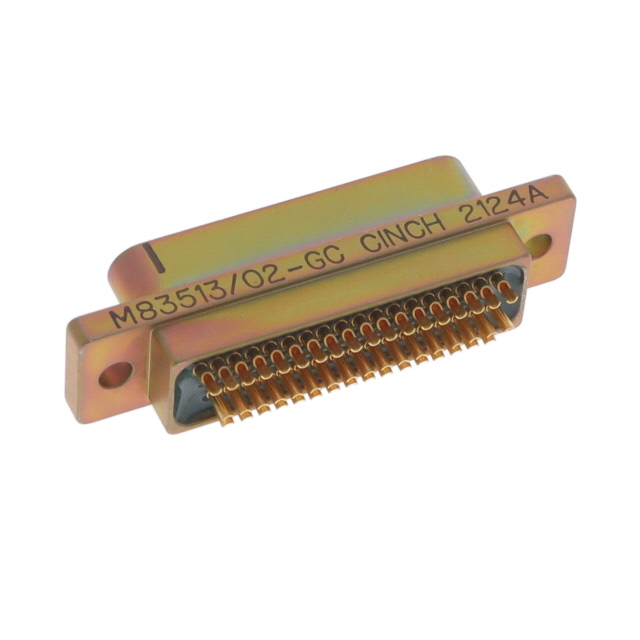

Cinch Connectivity Solutions M83513/02-GC	Copper Alloy	-55 C	125 °C	Polyester Glass Filled	Panel Mount	Gold	D-Type Micro-D	3	Signal	UL94 V-0	51	3 A	Receptacle Female Sockets			50 µin	1.27 µm	Aluminum Alloy Yellow Chromate Plated Cadmium	Housing/Shell (Unthreaded)	0.05	0.05

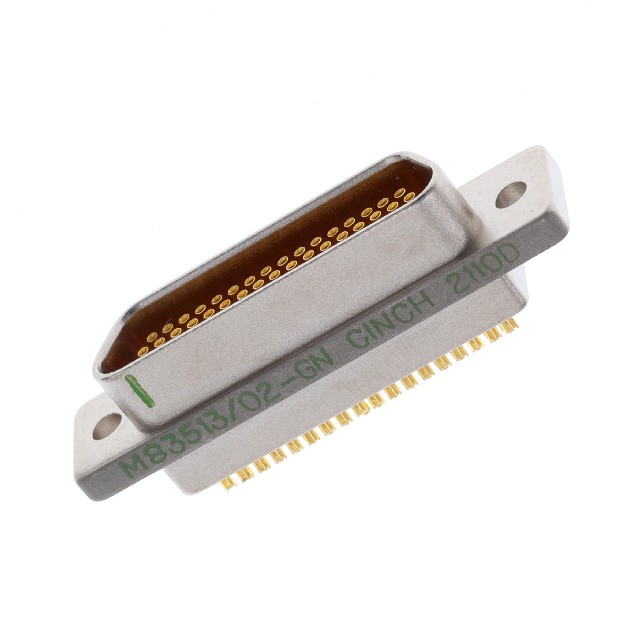

Cinch Connectivity Solutions M83513/02-GN	Copper Alloy	-55 C	125 °C	Polyester Glass Filled	Panel Mount	Gold	D-Type Micro-D	3	Signal	UL94 V-0	51	3 A	Receptacle Female Sockets			50 µin	1.27 µm	Aluminum Alloy Electroless Nickel Plated	Housing/Shell (Unthreaded)	0.05	0.05

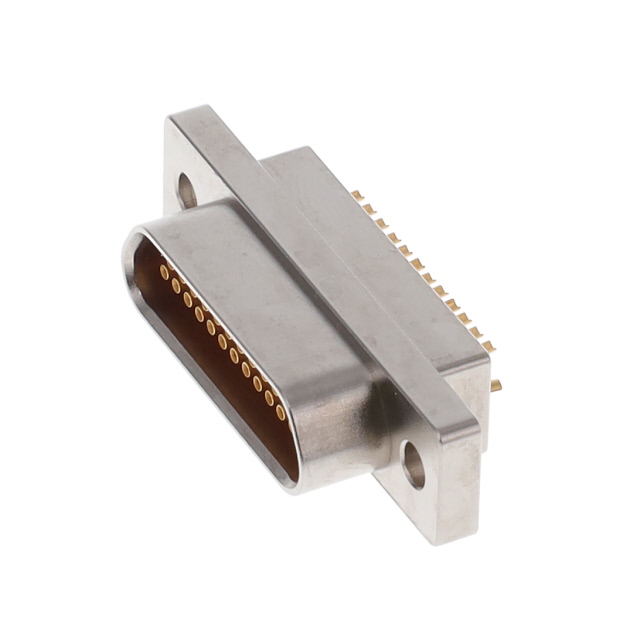

Cinch Connectivity Solutions M83513/02-DN	Copper Alloy	-55 C	125 °C	Polyester Glass Filled	Panel Mount	Gold	D-Type Micro-D	2	Signal	UL94 V-0	25	3 A	Receptacle Female Sockets	0.043 in	0.05 in	50 µin	1.27 µm	Aluminum Alloy Electroless Nickel Plated	Housing/Shell (Unthreaded)
Cinch Connectivity Solutions M83513/02-CN	Copper Alloy	-55 C	125 °C	Polyester Glass Filled	Panel Mount	Gold	D-Type Micro-D	2	Signal	UL94 V-0	21	3 A	Receptacle Female Sockets	0.043 in	0.05 in	50 µin	1.27 µm	Aluminum Alloy Electroless Nickel Plated	Housing/Shell (Unthreaded)
Cinch Connectivity Solutions M83513/02-EN	Copper Alloy	-55 C	125 °C	Polyester Glass Filled	Panel Mount	Gold	D-Type Micro-D	2	Signal	UL94 V-0		3 A	Receptacle Female Sockets	0.043 in	0.05 in	50 µin	1.27 µm	Aluminum Alloy Electroless Nickel Plated	Housing/Shell (Unthreaded)			31
Cinch Connectivity Solutions M83513/02-FN	Copper Alloy	-55 C	125 °C	Polyester Glass Filled	Panel Mount	Gold	D-Type Micro-D	2	Signal	UL94 V-0	37	3 A	Receptacle Female Sockets	0.043 in	0.05 in	50 µin	1.27 µm	Aluminum Alloy Electroless Nickel Plated	Housing/Shell (Unthreaded)
