410-83 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 28POS 0.1 GOLD PCB

...

Part	Insulation Material	Contact Material	Contact Shape	Contact Finish - Mating	Fastening Type	Contact Finish - Post	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Mounting Type	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Length - Post	Contact Length - Post	Number of Positions	Number of Positions Loaded	Current Rating (Amps)	Number of Rows [custom]	Termination Post Length	Termination Post Length	Contact Resistance	Type	Housing Material	Contact Material - Post [custom]	Pitch - Post	Pitch - Post	Contact Material - Mating	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid)
Preci-Dip 410-83-228-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Gold	Push-Pull	Tin	0.165 in	4.2 mm	UL94 V-0	Solder	Through Hole	Female Socket	0.1 "	2.54 mm	-55 C	125 °C	Black	0.1 in	2.54 mm	Socket	29.5 µin	0.75 µm	0.125 in	3.18 mm	28	All	3 A	2
Preci-Dip 410-83-220-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Gold	Push-Pull	Tin	0.165 in	4.2 mm	UL94 V-0	Solder	Through Hole	Female Socket	0.1 "	2.54 mm	-55 C	125 °C	Black	0.1 in	2.54 mm	Socket	29.5 µin	0.75 µm	0.125 in	3.18 mm	20	All	3 A	2

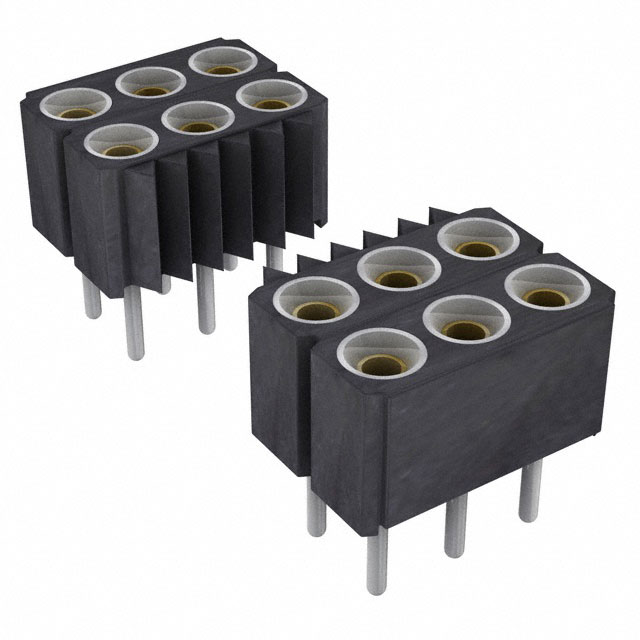

Preci-Dip 410-83-318-01-640101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Gold	Push-Pull	Tin	0.165 in	4.2 mm	UL94 V-0	Solder	Through Hole	Female Socket	0.1 "	2.54 mm	-55 C	125 °C	Black	0.1 in	2.54 mm	Socket	29.5 µin	0.75 µm	0.125 in	3.18 mm	18	All	3 A	3
Preci-Dip 410-83-248-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Gold	Push-Pull	Tin	0.165 in	4.2 mm	UL94 V-0	Solder	Through Hole	Female Socket	0.1 "	2.54 mm	-55 C	125 °C	Black	0.1 in	2.54 mm	Socket	29.5 µin	0.75 µm	0.125 in	3.18 mm	48	All	3 A	2
Preci-Dip 410-83-230-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Gold	Push-Pull	Tin	0.165 in	4.2 mm	UL94 V-0	Solder	Through Hole	Female Socket	0.1 "	2.54 mm	-55 C	125 °C	Black	0.1 in	2.54 mm	Socket	29.5 µin	0.75 µm	0.125 in	3.18 mm	30	All	3 A	2

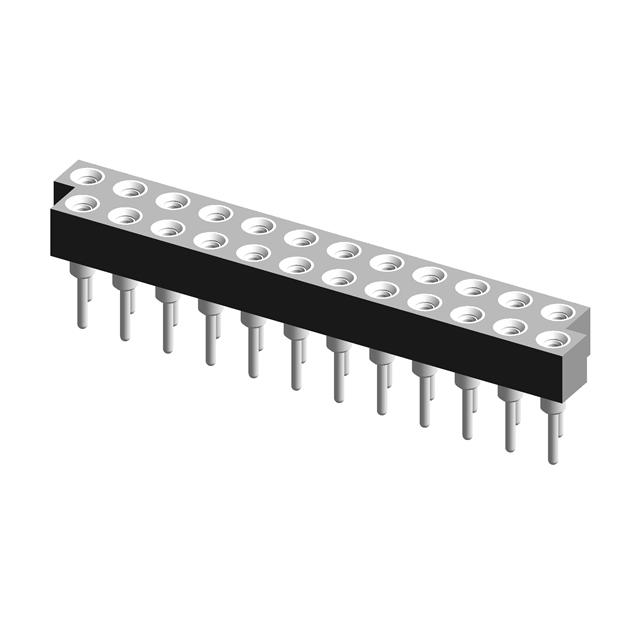

Preci-Dip 410-83-224-10-002101				Gold		Tin			UL94 V-0	Solder	Through Hole		0.1 "	2.54 mm	-55 C	125 °C					29.5 µin	0.75 µm					1 A		0.125 in	3.18 mm	10 mOhm	Right Stackable Zig-Zag	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	0.1 in	2.54 mm	Beryllium Copper	12	2	24
Preci-Dip 410-83-342-01-640101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Gold	Push-Pull	Tin	0.165 in	4.2 mm	UL94 V-0	Solder	Through Hole	Female Socket	0.1 "	2.54 mm	-55 C	125 °C	Black	0.1 in	2.54 mm	Socket	29.5 µin	0.75 µm	0.125 in	3.18 mm	42	All	3 A	3
Preci-Dip 410-83-345-01-640101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Gold	Push-Pull	Tin	0.165 in	4.2 mm	UL94 V-0	Solder	Through Hole	Female Socket	0.1 "	2.54 mm	-55 C	125 °C	Black	0.1 in	2.54 mm	Socket	29.5 µin	0.75 µm	0.125 in	3.18 mm	45	All	3 A	3
Preci-Dip 410-83-242-01-640101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Gold	Push-Pull	Tin	0.165 in	4.2 mm	UL94 V-0	Solder	Through Hole	Female Socket	0.1 "	2.54 mm	-55 C	125 °C	Black	0.1 in	2.54 mm	Socket	29.5 µin	0.75 µm	0.125 in	3.18 mm	42	All	3 A	2
Preci-Dip 410-83-214-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Gold	Push-Pull	Tin	0.165 in	4.2 mm	UL94 V-0	Solder	Through Hole	Female Socket	0.1 "	2.54 mm	-55 C	125 °C	Black	0.1 in	2.54 mm	Socket	29.5 µin	0.75 µm	0.125 in	3.18 mm	14	All	3 A	2
