345-112 Series
Manufacturer: EDAC Inc.
Catalog
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 112 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
...
| Part | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Number of Positions/Bay/Row [custom] | Termination Rows | Card Type | Read Out | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Pitch [x] | Pitch [x] | Number of Rows | Termination | Contact Finish | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 112 | 10 Áin | 0.25 Ám | Cantilever | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Female | 56 | 2 | Non Specified - Dual Edge | Dual | Green | Copper Alloy | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | 2 | Solder | Gold | |||
 EDAC Inc. | 112 | 10 Áin | 0.25 Ám | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Female | 56 | 2 | Non Specified - Dual Edge | Dual | Green | Copper Alloy | -40 °C | 105 ░C | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | 2 | Solder Eyelet(s) | Gold | Card Extender | ||||
 EDAC Inc. | 112 | 10 Áin | 0.25 Ám | Cantilever | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Female | 56 | 2 | Non Specified - Dual Edge | Dual | Green | Copper Alloy | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | 2 | Wire Wrap | Gold | |||
 EDAC Inc. | 112 | 10 Áin | 0.25 Ám | Cantilever | Female | 56 | 2 | Non Specified - Dual Edge | Dual | Green | Copper Alloy | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | 2 | Wire Wrap | Gold | 3.25 mm | 0.128 in | ||||

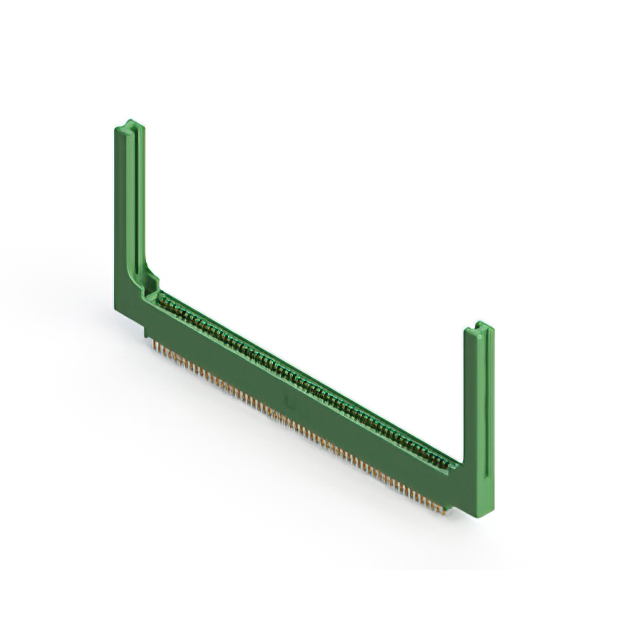

 EDAC Inc. | 112 | 10 Áin | 0.25 Ám | Cantilever | 4-40 Threaded Insert Top Mount Opening | Female | 56 | 2 | Non Specified - Dual Edge | Dual | Green | Copper Alloy | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | 2 | Solder | Gold | Card Guides | ||||
 EDAC Inc. | 112 | 10 Áin | 0.25 Ám | Cantilever | Female | 56 | 2 | Non Specified - Dual Edge | Dual | Green | Copper Alloy | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | 2 | Solder | Gold | 3.25 mm | 0.128 in | ||||
 EDAC Inc. | 112 | 10 Áin | 0.25 Ám | Cantilever | M3 Threaded Insert Top Mount Opening | Female | 56 | 2 | Non Specified - Dual Edge | Dual | Green | Copper Alloy | -40 °C | 105 ░C | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | 2 | Solder | Gold | |||||

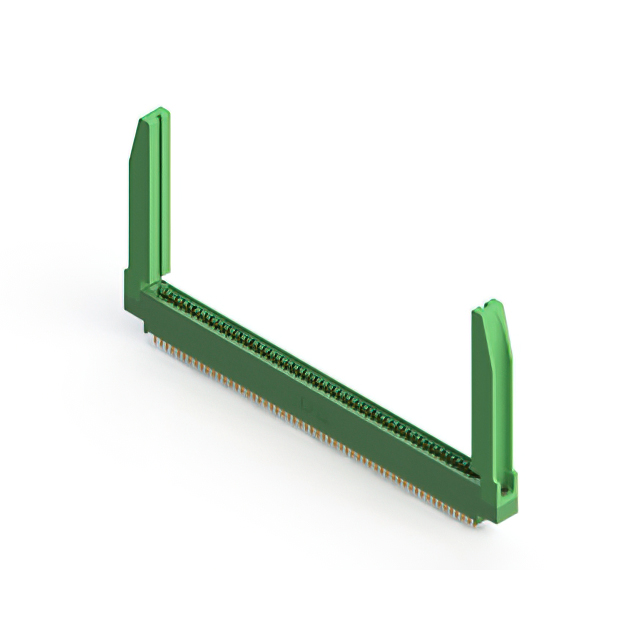

 EDAC Inc. | 112 | 10 Áin | 0.25 Ám | Cantilever | 4-40 Threaded Insert Top Mount Opening | Female | 56 | 2 | Non Specified - Dual Edge | Dual | Green | Copper Alloy | -40 °C | 105 ░C | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | 2 | Wire Wrap | Gold | Card Guides | ||||
EDAC Inc. | 112 | 10 Áin | 0.25 Ám | Cantilever | Female | 56 | 2 | Non Specified - Dual Edge | Dual | Green | Copper Alloy | -40 °C | 105 ░C | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | 2 | Solder | Gold | Card Extender | 3.25 mm | 0.128 in | |||
 EDAC Inc. | 112 | 10 Áin | 0.25 Ám | Cantilever | Female | 56 | 2 | Non Specified - Dual Edge | Dual | Green | Copper Alloy | -40 °C | 105 ░C | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | 2 | Solder | Gold |
