TLP240 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
PHOTORELAYS (MOSFET OUTPUT), 1A, 60 V/0.5 A PHOTORELAY, 5000 VRMS, DIP4
| Part | Voltage - Load [Max] | Voltage - Load [Min] | Operating Temperature [Max] | Operating Temperature [Min] | On-State Resistance (Max) [Max] | Termination Style | Approval Agency | Load Current | Output Type | Package / Case | Package / Case | Package / Case | Mounting Type | Supplier Device Package | Voltage - Input [Max] | Voltage - Input [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

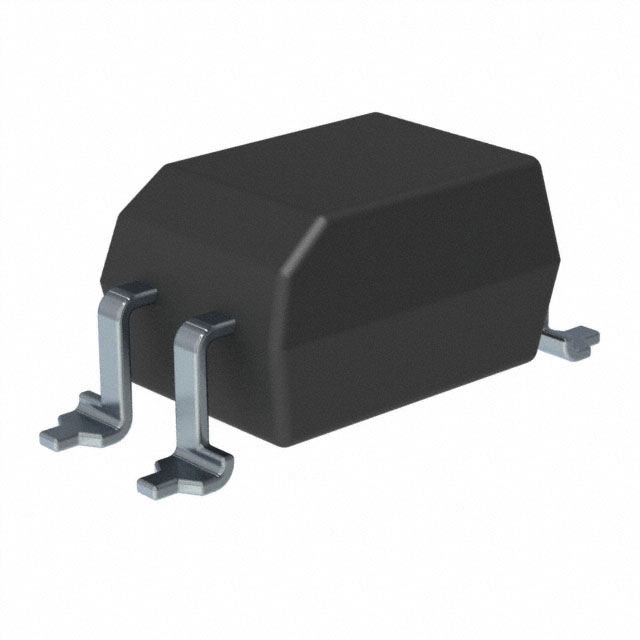

 Toshiba Semiconductor and Storage | 60 V | 0 V | 85 °C | -40 C | 2 Ohm | SMD (SMT) Tab | CQC cUL UL VDE | 500 mA | AC DC | 0.3 in | 4-SMD | 7.62 mm | Surface Mount | 4-SMD | |||
 Toshiba Semiconductor and Storage | 60 V | 0 V | 85 °C | -40 C | 2 Ohm | SMD (SMT) Tab | CQC cUL UL VDE | 500 mA | AC DC | 0.3 in | 4-SMD | 7.62 mm | Surface Mount | 4-SMD | 1.4 VDC | 1.1 V | |

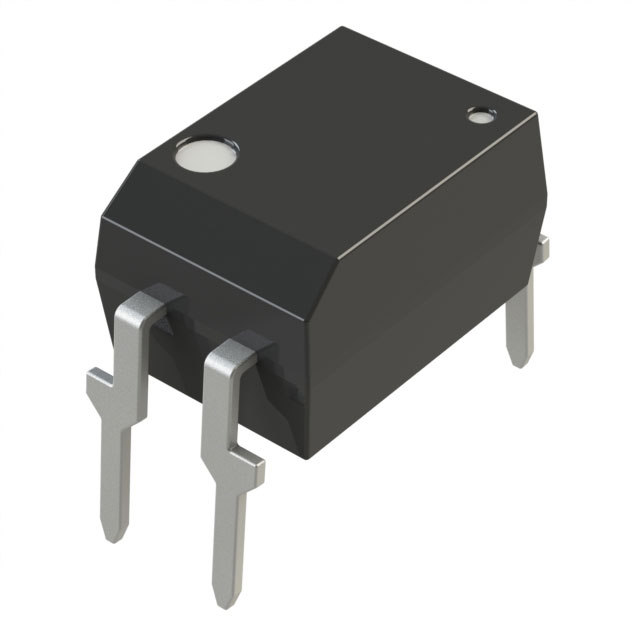

 Toshiba Semiconductor and Storage | 60 V | 0 V | 85 °C | -40 C | 2 Ohm | PC Pin | CQC cUL UL VDE | 500 mA | AC DC | 7.62 mm | 4-DIP | Through Hole | 4-DIP | 0.3 in |
