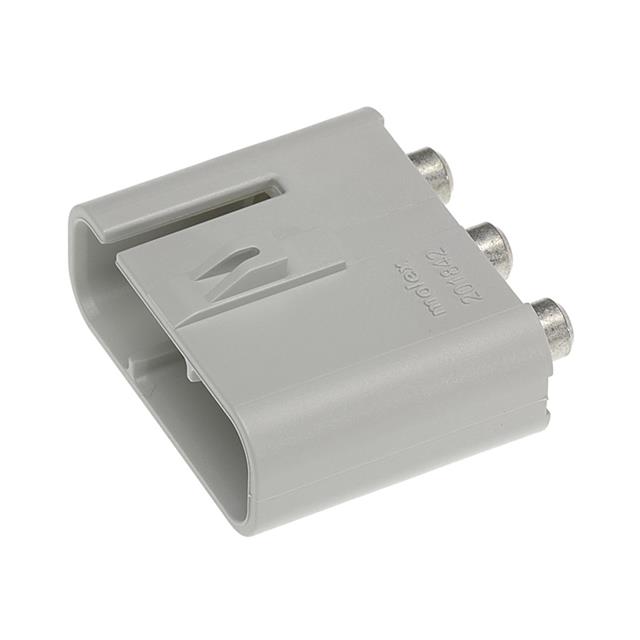

MultiCat High-Power Vertical Header, 3 Circuits, Key B, Gray
MultiCat High-Power Vertical Header, 3 Circuits, Key B, Gray
| Part | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Voltage Rating | Number of Positions | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Finish - Post | Number of Rows | Contact Shape | Features | Connector Type | Insulation Color | Insulation Material | Fastening Type | Mounting Type | Termination | Style | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Contact Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Aerospace Automotive Industrial Medical | 5 µm | 196.9 µin | Shrouded - 4 Wall | 1200 VDC | 4 | 0.776 " | 19.7 mm | All | Copper Alloy | 3.9 µin | 0.099 µm | Gold | Tin | 1 | Circular | Board Guide | Header | Gray | Polyetherimide (PEI) | Latch Lock | Through Hole | Solder | Board to Cable/Wire | 0.291 in | 7.4 mm | -40 C | 150 °C | UL94 V-0 | 0.132 in | 3.35 mm | Male Pin | Varies by Wire Gauge |
 Molex | Aerospace Automotive Industrial Medical | 5 µm | 196.9 µin | Shrouded - 4 Wall | 1200 VDC | 0.776 " | 19.7 mm | All | Copper Alloy | 3.9 µin | 0.099 µm | Gold | Tin | 1 | Circular | Board Guide | Header | Gray | Polyetherimide (PEI) | Latch Lock | Through Hole | Solder | Board to Cable/Wire | 0.291 in | 7.4 mm | -40 C | 150 °C | UL94 V-0 | 0.132 in | 3.35 mm | Male Pin | Varies by Wire Gauge | |
 Molex | Aerospace Automotive Industrial Medical | 5 µm | 196.9 µin | Shrouded - 4 Wall | 1200 VDC | 4 | 0.776 " | 19.7 mm | All | Copper Alloy | 3.9 µin | 0.099 µm | Gold | Tin | 1 | Circular | Board Guide | Header | Black | Polyetherimide (PEI) | Latch Lock | Through Hole | Solder | Board to Cable/Wire | 0.291 in | 7.4 mm | -40 C | 150 °C | UL94 V-0 | 0.132 in | 3.35 mm | Male Pin | Varies by Wire Gauge |
 Molex | Aerospace Automotive Industrial Medical | 5 µm | 196.9 µin | Shrouded - 4 Wall | 1200 VDC | 0.776 " | 19.7 mm | All | Copper Alloy | 3.9 µin | 0.099 µm | Gold | Tin | 1 | Circular | Board Guide | Header | Black | Polyetherimide (PEI) | Latch Lock | Through Hole | Solder | Board to Cable/Wire | 0.291 in | 7.4 mm | -40 C | 150 °C | UL94 V-0 | 0.132 in | 3.35 mm | Male Pin | Varies by Wire Gauge |
