AO5404 Series
Manufacturer: Alpha & Omega Semiconductor Inc.
Beta
⌘K

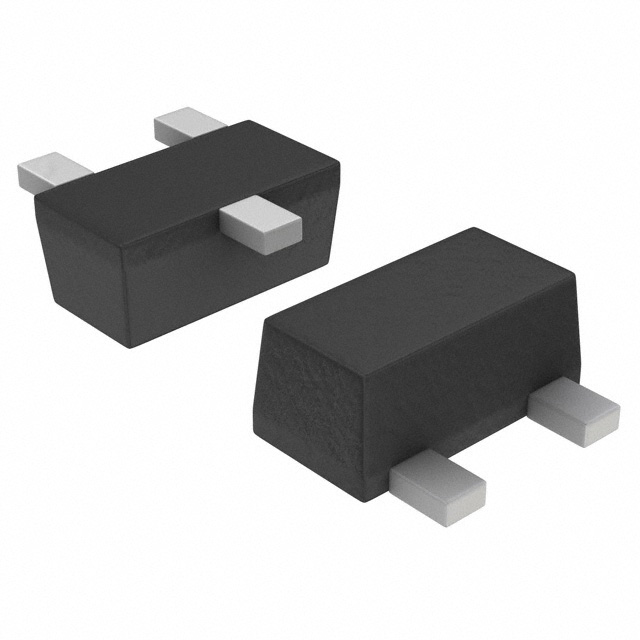

MOSFET N-CH 20V 500MA SC89-3
| Part | FET Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Drive Voltage (Max Rds On, Min Rds On) [Max] | Drive Voltage (Max Rds On, Min Rds On) [Min] | Gate Charge (Qg) (Max) @ Vgs | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Input Capacitance (Ciss) (Max) @ Vds | Mounting Type | Current - Continuous Drain (Id) @ 25°C | Drain to Source Voltage (Vdss) | Vgs (Max) [Max] | Technology | Power Dissipation (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Alpha & Omega Semiconductor Inc. | N-Channel | SC-89-3 | 150 °C | -55 °C | 1.8 V | 4.5 V | 1 nC | 550 mOhm | 1 V | 45 pF | Surface Mount | 500 mA | 20 V | 8 V | MOSFET (Metal Oxide) | 280 mW | SC-89 SOT-490 |
