357-039 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 78POS 0.156

...

Part	Material - Insulation	Number of Rows	Flange Feature	Pitch [x]	Pitch [x]	Contact Finish	Contact Material	Features	Mounting Type	Termination Rows	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions/Bay/Row [custom]	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]

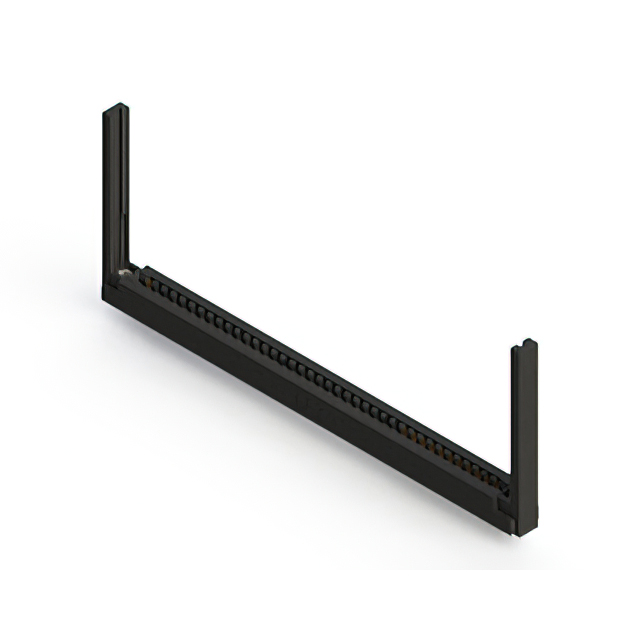

EDAC Inc. 357-039-553-168	Polyester Thermoplastic	2	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Gold	Copper Alloy	Card Guides	Through Hole Right Angle	1	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	Semi Bellows	Female	-40 °C	105 ░C	Solder	39	78

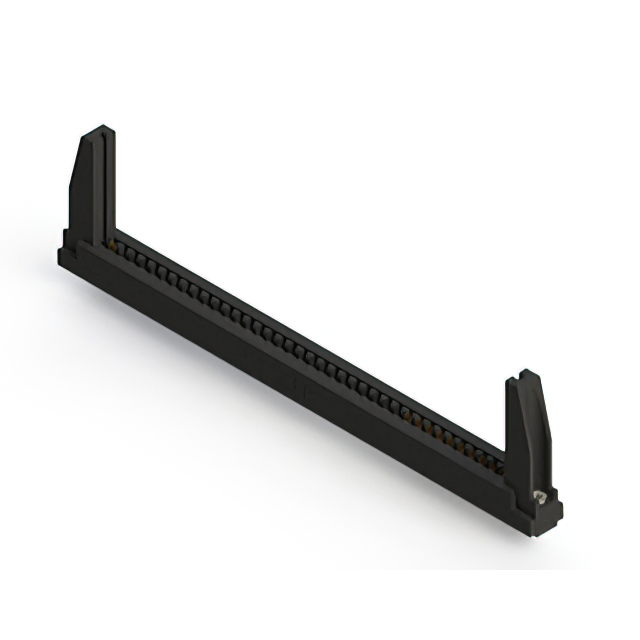

EDAC Inc. 357-039-557-178	Polyester Thermoplastic	2	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Gold	Copper Alloy	Card Guides	Through Hole Right Angle	1	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	Semi Bellows	Female	-40 °C	105 ░C	Wire Wrap	39	78

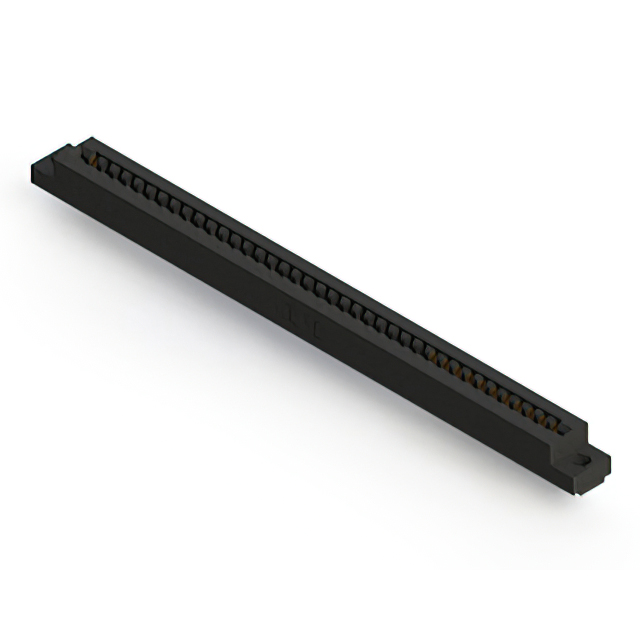

EDAC Inc. 357-039-521-104	Polyester Thermoplastic	2	Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm	Gold	Copper Alloy		Through Hole	1	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	Semi Bellows	Female	-40 °C	105 ░C	Solder	39	78	3.96 mm	0.156 in

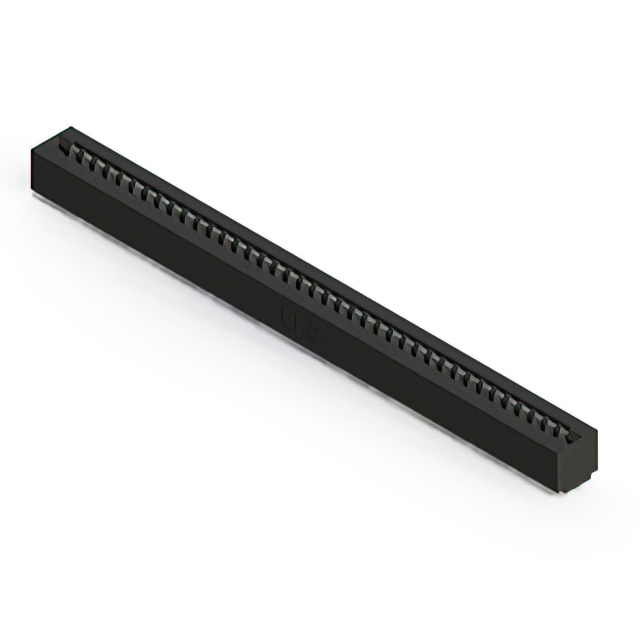

EDAC Inc. 357-039-458-101	Polyester Thermoplastic	1		0.156 in	3.96 mm	Tin	Copper Alloy		Through Hole Right Angle	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge			Black	Semi Bellows	Female	-40 °C	105 ░C	Solder	39	39

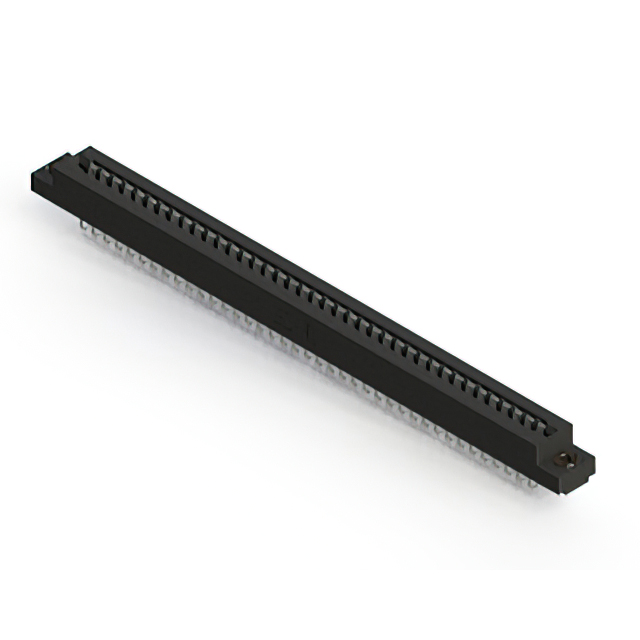

EDAC Inc. 357-039-459-103	Polyester Thermoplastic	1	Floating Bobbin Flush Mount	0.156 in	3.96 mm	Tin	Copper Alloy		Through Hole Right Angle	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge			Black	Semi Bellows	Female	-40 °C	105 ░C	Solder	39	39	2.95 mm	0.116 in

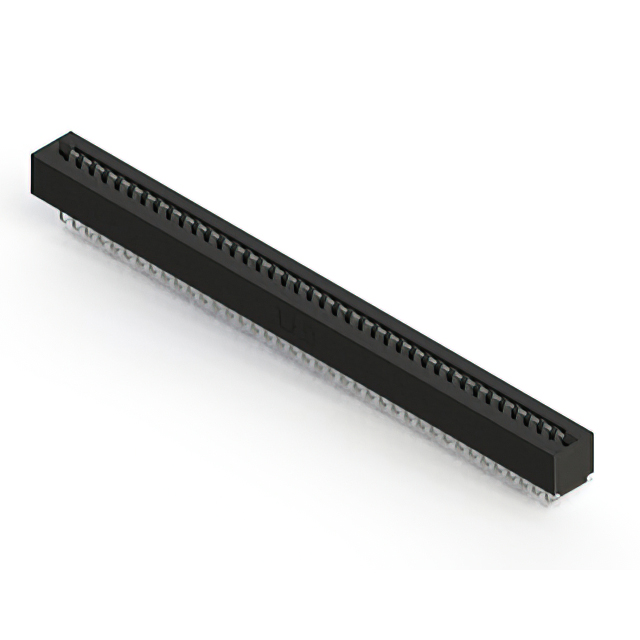

EDAC Inc. 357-039-459-101	Polyester Thermoplastic	1		0.156 in	3.96 mm	Tin	Copper Alloy		Through Hole Right Angle	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge			Black	Semi Bellows	Female	-40 °C	105 ░C	Solder	39	39
EDAC Inc. 357-039-541-112	Polyester Thermoplastic	2	Flush Mount Side Opening Unthreaded	0.156 in	3.96 mm	Gold	Copper Alloy		Through Hole	1	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	Semi Bellows	Female	-40 °C	105 ░C	Wire Wrap	39	78	3.25 mm	0.128 "

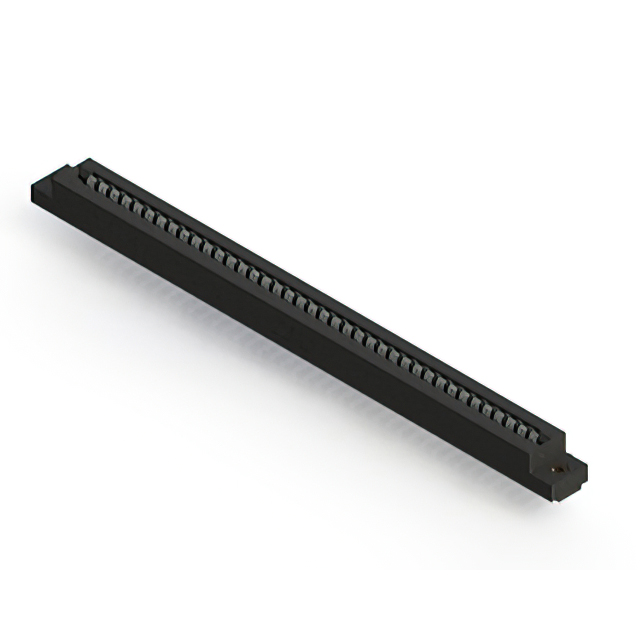

EDAC Inc. 357-039-457-108	Polyester Thermoplastic	2	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Tin	Copper Alloy		Through Hole Right Angle	1	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge			Black	Semi Bellows	Female	-40 °C	105 ░C	Solder	39	78

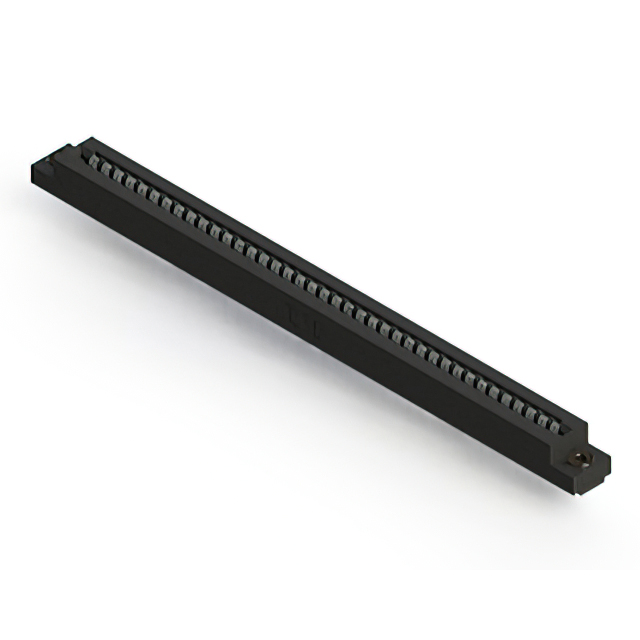

EDAC Inc. 357-039-401-103	Polyester Thermoplastic	2	Floating Bobbin Flush Mount	0.156 in	3.96 mm	Tin	Copper Alloy		Through Hole	1	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge			Black	Semi Bellows	Female	-40 °C	105 ░C	Solder Eyelet(s)	39	78	2.95 mm	0.116 in

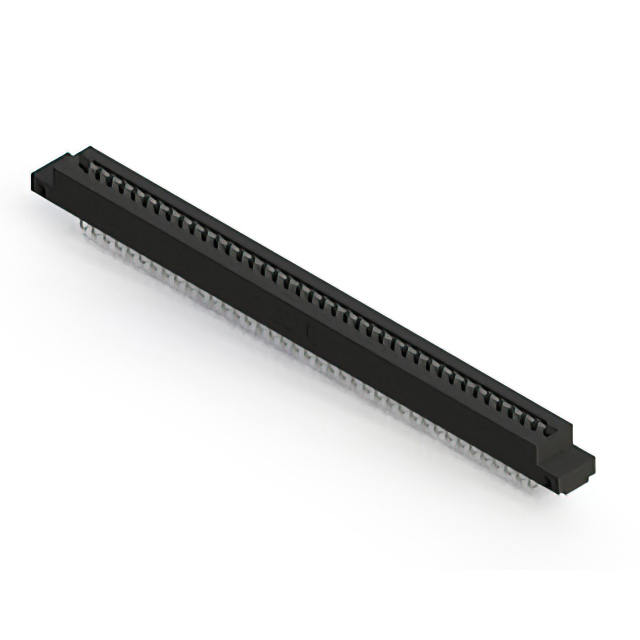

EDAC Inc. 357-039-459-112	Polyester Thermoplastic	1	Flush Mount Side Opening Unthreaded	0.156 in	3.96 mm	Tin	Copper Alloy		Through Hole Right Angle	1	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge			Black	Semi Bellows	Female	-40 °C	105 ░C	Solder	39	39	3.25 mm	0.128 "
